P810017-030-30 Hubbell Electronic Components
Part#:P810017-030-30
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

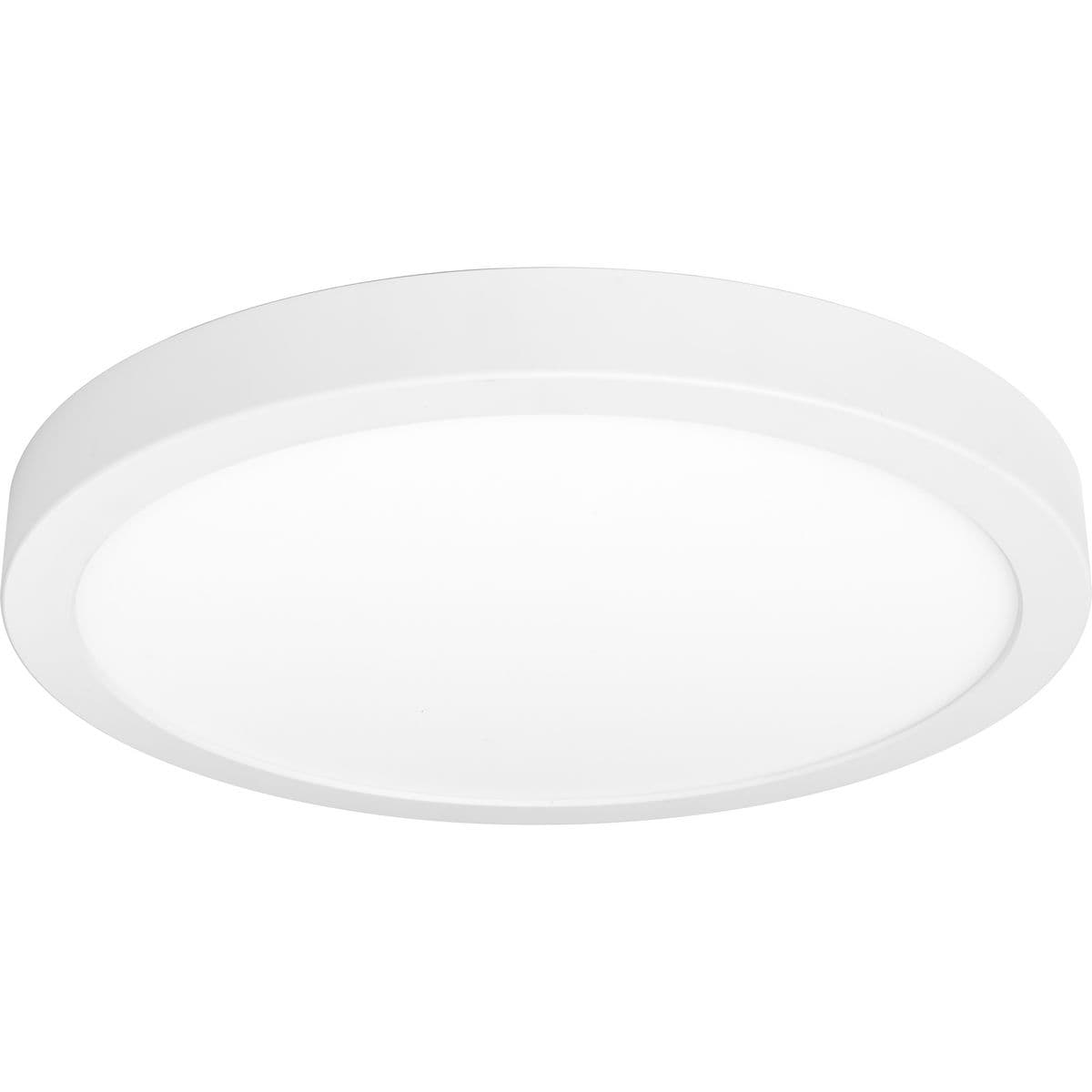

The P810017 Edgelit Flush Mount delivers a solution for both residential and commercial markets. The Edgelit technology provides a bright and evenly illuminated surface in a very slim profile. The integrated LED power supply does not protrude into the jun
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the P810017-030-30 Hubbell price in the box on the right side or send a quick quote.
Product Details
- Weight1.1 lb
- Can be mounted up or down No
- Color Generic White
- Fixture Type Flush-Mount
- Dusk to Dawn No
- Mounting for outlet box included strap
- Lamp Type Integrated LED
- Power Source Required? Yes
- Spacing 1.24
- Warranty Length 5-year Limited Warranty
- Amperage Rating 0.168 A
- Color Rendering Index (CRI) 90 CRI
- Convertible fixture includes both mounts No
- Lamp Included Yes
- Finish Name White
- Mount location Flush-Mount
- Power Source Hardwired
- Starting Temperature - Minimum -30 °C
- Type Flush-Mount
- Height 1.125 in
- Category General Flush Mount
- Construction Material - Main Aluminum/Plastic
- Glass White
- Dimming Protocol Triac/Forward Phase ; ELV/Reverse Phase
- Lamp Type Actual LED
- Lifestyle Modern ; Transitional
- Operating Temperature Celcius Max 30°C
- Prewired Yes
- UPC 785247225897
- Width Diameter Descriptor dia.
- Certified Listed cCSAus
- Lamp Wattage 19.5 W
- DarkSky No
- Number of Lamps 1
- Socket Base Type - Main Integrated
- Note Weight of fixture exceeds NEC limits No
- Title 22 No
- Finish Type Painted
- Lamp Type Basic Solid State
- Photocell No
- Number of Lamps Total 1
- Lamp Shape LED
- Color White
- Color Temperature 3000 K
- Room Type Closets ; Pantry ; Bedroom ; Hall & Foyer ; Kitchen
- Style Modern ; Transitional
- Lumens Per Watt 88 Lum/Watt
- Wire Length 6 in
- Energy Efficient Yes
- TM-21 50000
- ENERGY STAR Certified Yes
- Certified Listed Location Wet Location Listed
- Title 24 Yes
- Voltage Rating 120 V
- Other Heavy Metal Content Indicator No
- Title 20 Yes
- Pallet Quantity 216
- Width 14 in
- Frequency Rating 60 Hz
- Industry Standard(s) FCC Part 15 Class B
- JA8 2016
- Americans with Disabilities Act No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents P810017-030-30 Specs
