P8071-28-30K Hubbell Electronic Components
Part#:P8071-28-30K
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

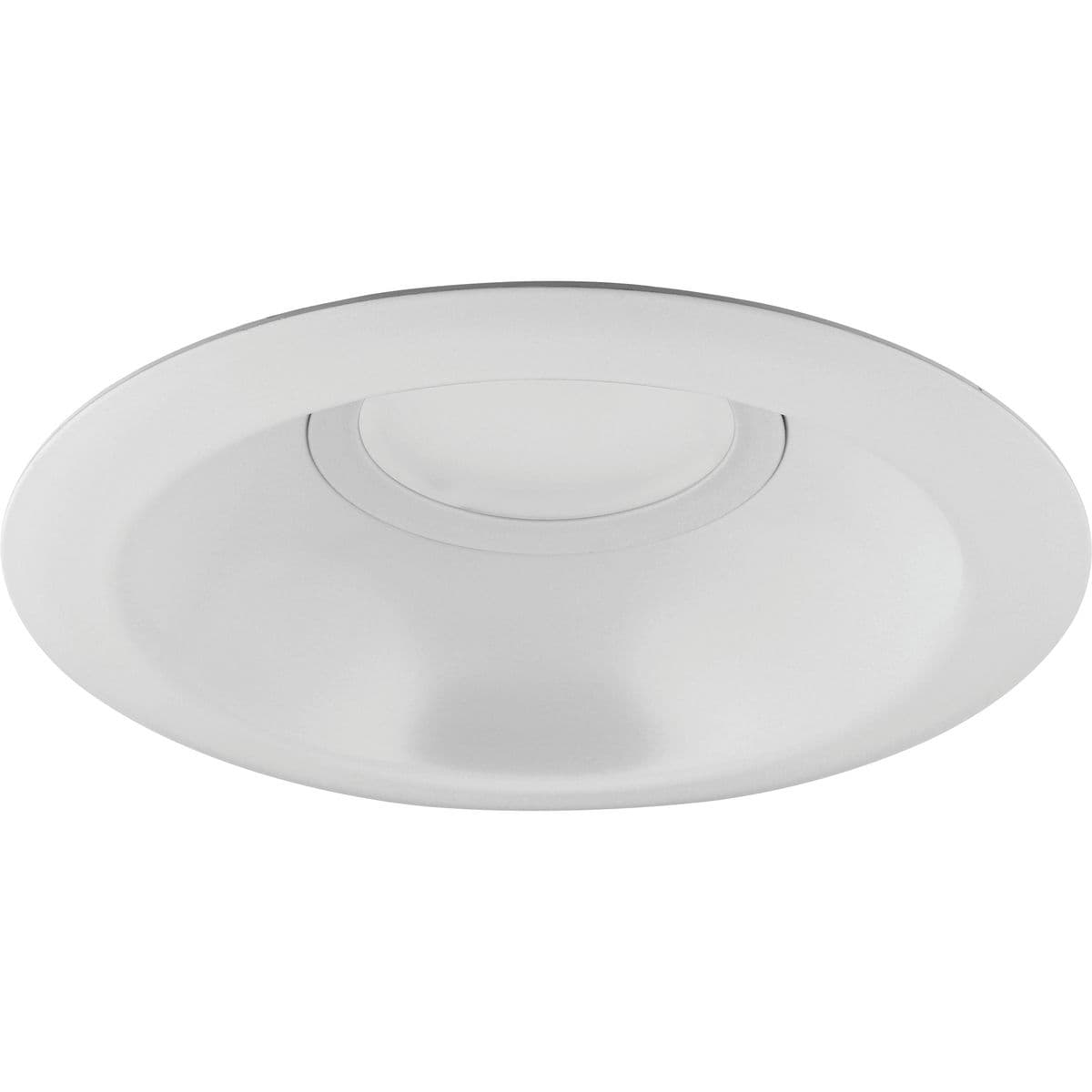

The 6" recessed trim is ideal for use in both new construction as well as remodel/retrofit. Light output is comparable to that of a typical 65W incandescent downlight, providing up to 75 percent energy savings. The trim is equipped with both Edison base a
About the manufacturer: Hubbell is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the P8071-28-30K Hubbell price in the box on the right side or send a quick quote.
Product Details
- Weight1.42 lb
- Category General Recessed
- Construction Material - Main Steel
- Dimming Protocol Triac/Forward Phase
- Finish Name Satin White
- Lamp Shape LED
- Operating Temperature 30 °C
- Prewired Yes
- Power Source Hardwired
- Warranty Length 5-year Limited Warranty
- Width 7.64 in
- Lumens Per Watt 70 Lum/Watt
- Color Rendering Index (CRI) 90 CRI
- Aperture 2.75 in
- Color White
- Dimming Range 10%
- Glass White
- Number of Lamps Total 1
- Mount location ceiling flush/recessed
- Spacing 1
- Trim Type Shower
- Diameter - Inside 6.125 in
- Lamp Wattage 10 W
- Wire Length 6 in
- Energy Efficient Yes
- Title 22 No
- JA8 2016
- Color Temperature 3000 K
- Convertible fixture includes both mounts No
- Diameter - Outside 7.75 in
- Power Factor >0.90
- Certified Listed cCSAus
- Fixture Type Recessed Trim
- Lamp Type LED
- Mounting for outlet box included strap
- Power Source Required? Yes
- Type 6in Trim
- Industry Standard(s) FCC Title 47, Part 15, Class B
- Title 20 No
- Pallet Quantity 240
- Can be mounted up or down No
- Color Generic White
- Lamp Included Yes
- Dusk to Dawn No
- Lamp Type Basic Solid State
- Number of Lamps 1
- Operating Temperature Celcius Max 30 °C
- Starting Temperature - Minimum -30 °C
- UPC 785247205233
- Frequency Rating 60 Hz
- Note Weight of fixture exceeds NEC limits No
- Width Diameter Descriptor dia.
- ENERGY STAR Certified Yes
- Other Heavy Metal Content Indicator No
- Controls - Applications 0-10 36.95 36.95 5.63 ; 10-20 98.43 135.4 20.6 ; 20-30 135.1 270.4 41.2 ; 30-40 145.6 416.0 63.4 ; 40-50 133.0 549.0 83.7 ; 50-60 85.75 634.7 96.8 ; 60-70 20.36 655.1 99.9 ; 70-80 0.6937 655.8 100 ; 80-90 0.0678 655.9 100
- Finish Type Painted
- Lamp Type Actual LED
- Light Source LED
- Photocell No
- Sub Brand Progress LED
- Height 4 in
- Amperage Rating 0.11 A
- Voltage Rating 120 V
- Certified Listed Location Wet Location Listed
- DarkSky No
- Americans with Disabilities Act No
- EnergyStar Yes
- TM-21 50000
- Carton Quantity 4
- Title 24 Yes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents P8071-28-30K Specs
