HBL4100RS1W Hubbell Industrial Automation Components
Part#:HBL4100RS1W
Manufacturer:Hubbell
Product Lifecycle:Active
Get a quick Quote!

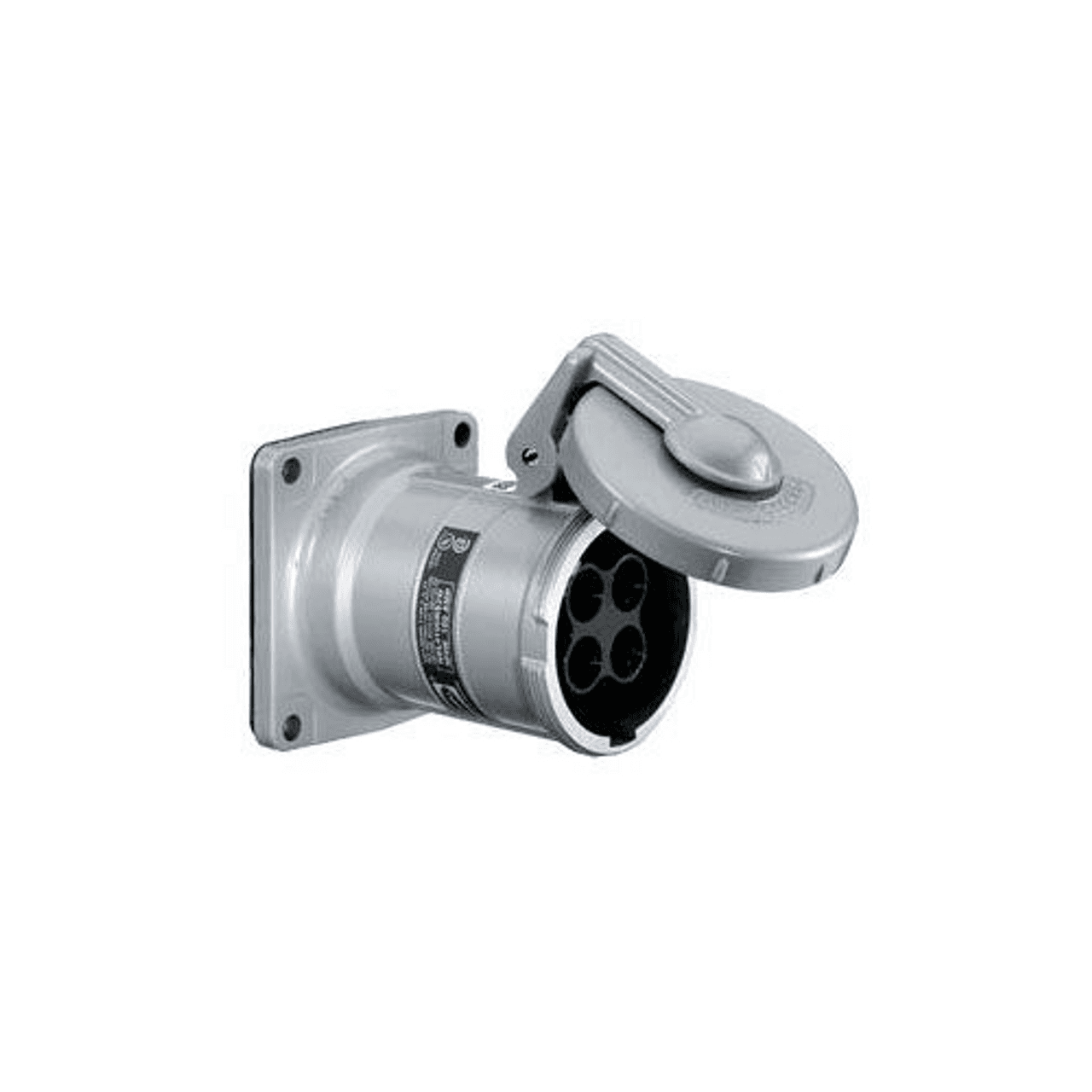

Heavy Duty Products, Insulgrip Pin and Sleeve Devices, Industrial Grade, Female, Receptacle, 100A 600V AC, 3- Pole 4-Wire Grounding, Terminal Screws, Gray and Black, Watertight ; Watertight neoprene sealing glands for reliable seal ; Spring-Loaded, gaske
About the manufacturer: Hubbell is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. Hubbell offers a variety of products that are specifically designed to tackle challenges faced by businesses, increase energy efficiency, enhance safety, perform well in harsh environments, streamline wiring organization, and improve grounding systems in and around buildings.
Check out the HBL4100RS1W Hubbell price in the box on the right side or send a quick quote.
Product Details
- Item Type Single Flanged-Reversed
- OEM Brand Name Hubbell Wiring Device-Kellems
- UPC 783585011066
- Phase Single/Three
- Number Of Wires 4-Wire
- Type Watertight Receptacle
- Material - Mounting Hardware Screw Mounting
- Environmental Conditions Watertight
- Current / Amperage Rating 100 A
- Current Rating 100 A
- Nema Rating Non-NEMA
- Connectivity Pressure Terminal Screws
- Wire Size #3 AWG to #1/0 AWG
- Style Standard Service,Style 1 Grounding
- Material Thermoplastic
- Amperage Rating 100 A
- Voltage Rating 600 VAC/250 VDC
- Industry Standard(s) CSA Certified to CSA Spec. C22.2 No. 182.1 ; UL Listed and CSA Certified Type 4X ; UL Standard 1682
- Performance Electrical - Current Interrupting - Certified for current interrupting at full rated current ; Electrical - Dielectric Voltage - Withstands 3,000V AC ; Electrical - Max. Working Voltage - 600V AC RMS ; Environmental - Flammability (Enclosure) - UL 94V-0 a
- Number Of Poles 3-Pole
- Application Metallic with Nylon Shroud
- Voltage Rating Description 600V AC/250V DC
- Wattage 60000
- Display Size Standard Sized Product
- Shipping Height: 0.00 In.
- UPC: 78358501106
- Shipping Weight: 0.00 lbs.
- Shipping Width: 0.00 In.
- Shipping Length: 0.00 In.
- TS PIK: 115231238
