8078840 Festo Pneumatic Actuators
Part#:8078840
Manufacturer:Festo
Alt. Part#:DGST-10-20-E1A
Product Lifecycle:Active
Get a quick Quote!

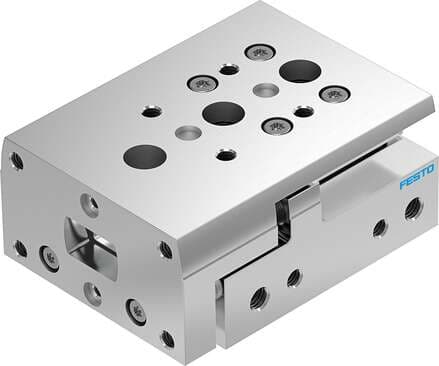

mini slide DGST-10-20-E1A Stroke: 20 mm, Piston diameter: 10 mm, Operating mode of drive unit: Yoke, Cushioning: Elastomer cushioning, at both ends, stroke not adjustable, Assembly position: Any
About the manufacturer: Festo is one of the manufacturers that offers Pneumatic Actuators that you can order at marketplace.quotebeam.com. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 8078840 Festo price in the box on the right side or send a quick quote.
Product Details
- Max. force Fz 480 N
- Type code DGST
- Guide Recirculating ball bearing guide
- Operating pressure 0.1 MPa ... 0.8 MPa
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Impact energy in the end positions 0.05 J
- Max. torque Mx 3 Nm
- Theoretical force at 6 bar, advancing 94 N
- Theoretical force at 6 bar, retracting 79 N
- Seals material HNBR
- Design Twin piston Slide
- Mode of operation Double-acting
- Ambient temperature -10 °C ... 60 °C
- Cushioning length 1.6 mm
- Max. torque My 3 Nm
- Pneumatic connection M5
- Housing material Wrought aluminum alloy
- Piston diameter 10 mm
- Cushioning Elastomer cushioning, at both ends, stroke not adjustable
- Position sensing For proximity sensor
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Max. torque Mz 3 Nm
- Moving mass 134 g
- Cover material Wrought aluminum alloy
- Piston rod material High-alloy stainless steel
- Guide material POM High-alloy steel
- Drive unit operating mode Yoke
- Symbol 00991249
- Repetition accuracy <= 0.3 mm
- Max. force Fy 480 N
- Product weight 254 g
- Note on materials Free of copper and PTFE RoHS-compliant
- Stroke 20 mm
- Mounting position Any
- Max. speed 0.5 m/s
- Corrosion resistance class (CRC) 1 - Low corrosion stress
- Type of mounting With through-hole
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 8078840 Specs
