578404 Festo Pneumatic Fittings
Part#:578404
Manufacturer:Festo
Alt. Part#:NPQH-BK-M5-P10
Product Lifecycle:Active
Get a quick Quote!

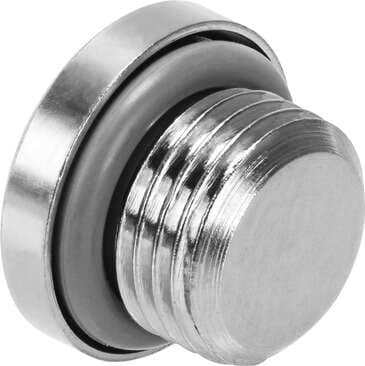

plug screw NPQH-BK-M5-P10 Size: Standard, Type of seal on screw-in stud: Sealing ring, Assembly position: Any, Container size: 10, Operating pressure complete temperature range: -0,95 - 20 bar
About the manufacturer: Festo is one of the manufacturers that offers Pneumatic Fittings that you can order at marketplace.quotebeam.com. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 578404 Festo price in the box on the right side or send a quick quote.
Product Details
- Type code NPQH
- Pack size 10
- Ambient temperature 0 °C ... 150 °C
- Product weight 0.8 g
- Certificate issuing authority NSF C0523185
- Mounting position Any
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-] Water as per manufacturer's declaration at www.festo.com
- Max. tightening torque 1.5 Nm
- Housing material Brass, nickel-plated
- Operating pressure for entire temperature range -0.95 bar ... 20 bar
- Pneumatic connection 1 External thread M5
- Type of seal on screwed trunnion Sealing ring
- For use in the food industry See declaration of conformity NSF/ANSI 169
- Corrosion resistance class (CRC) 3 - High corrosion stress
- Releasing ring material Brass, nickel-plated
- Size Standard
- Information on operating and pilot media Operation with oil lubrication possible
- Note on materials RoHS-compliant
- Material of threaded seal FPM
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 578404 Specs
