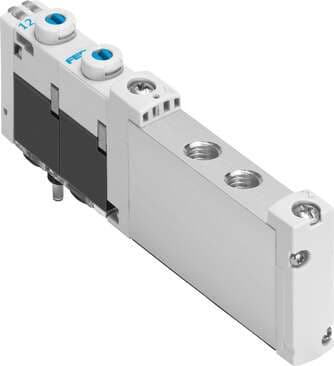

573400 Festo Directional Control Valves
Part#:573400
Manufacturer:Festo
Alt. Part#:VUVG-S10-T32H-AZT-M7-1T1L
Product Lifecycle:Active
Get a quick Quote!
solenoid valve VUVG-S10-T32H-AZT-M7-1T1L Valve function: 2x3/2 open/closed, monostable, Type of actuation: electrical, Valve size: 10 mm, Standard nominal flow rate: 160 l/min, Operating pressure: 1,5 - 10 bar
About the manufacturer: Festo is one of the manufacturers that offers Directional Control Valves that you can order at marketplace.quotebeam.com. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 573400 Festo price in the box on the right side or send a quick quote.
Product Details
- Valve function 2x3/2, open/closed, monostable
- Standard nominal flow rate 160 l/min
- Reset method Pneumatic spring
- Exhaust air function With flow control option
- Mounting position Any
- Pilot pressure 1.5 bar ... 8 bar
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Corrosion resistance class (CRC) 2 - Moderate corrosion stress
- Pilot medium Compressed air as per ISO 8573-1:2010 [7:4:4]
- Type of mounting On terminal strip
- Degree of protection IP65 IP67
- Manual override Detenting Non-detenting
- Switching time off 20 ms
- Duty cycle 100%
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
- Electrical connection Via sub-base
- Note on materials RoHS-compliant
- Operating pressure 1.5 bar ... 10 bar
- Valve size 10 mm
- Pneumatic working port M7
- Sealing principle Soft
- Pilot air supply port External
- Symbol 00992909
- Max. positive test pulse with 0 signal 1600 µs
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Product weight 59 g
- Pneumatic connection 2 M7
- Pilot pressure MPa 0.15 MPa ... 0.8 MPa
- Design Piston gate valve
- Certification c CSA us (OL) c UL us - Recognized (OL)
- Signal status display LED
- Max. switching frequency 3 Hz
- Permissible voltage fluctuations +/- 10 %
- Ambient temperature -5 °C ... 60 °C
- Housing material Wrought aluminum alloy
- Lap Overlap
- Actuation type Electrical
- Operating voltage 24V DC
- Type code VUVG
- Type of control Pilot-controlled
- On switching time 8 ms
- Coil characteristics 22 V DC: 1.0 W
- Max. negative test pulse on 1 signal 3000 µs
- Temperature of medium -5 °C ... 60 °C
- Pneumatic connection 4 M7
- Seals material HNBR NBR
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 573400 Specs
