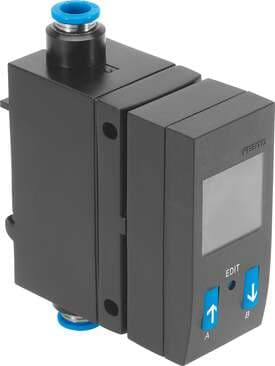

565387 Festo Flow Sensors

Product Details

• KC characters
  KC EMC
• Note on materials
  RoHS-compliant
• Measuring principle
  Thermal
• Ambient temperature
  0 °C ... 50 °C
• Zero point repetition accuracy in ± %FS
  0.2 %FS
• Flow characteristic curve, start value
  0 l/min
• DC operating voltage range
  15 V ... 30 V
• Mounting position
  Any
• Display type
  Illuminated LCD blue
• Flow measuring range end value
  10 l/min
• Operating medium
  Compressed air as per ISO 8573-1:2010 [6:4:4] Nitrogen
• Switching function
  Window comparator Threshold value comparator
• Max. output current
  ≤ 100 mA
• Max. load resistance of current output
  500 Ohm
• Flow characteristic curve, end value
  10 l/min
• Electrical connection
  5-pin Plug, straight
• Product weight
  600 g
• Degree of protection
  IP65
• Corrosion resistance class (CRC)
  2 - Moderate corrosion stress
• Type code
  SFAB
Certificate issuing authority
UL E322346
Flow direction
Unidirectional P1 -> P2
Temperature of medium
0 °C ... 50 °C
Switching element function
N/C contact N/O contact
End value output characteristic curve
20 mA
Reverse polarity protection
for all electrical connections
Type of mounting
Optionally: With wall/surface bracket
Certification
RCM compliance mark c UL us - Recognized (OL)
Measured variable
Flow rate Consumption
Flow measuring range start value
0.1 l/min
Nominal temperature
23 °C
Switching output
2 x PNP or 2 x NPN switchable
Analog output
4 - 20 mA
Short-circuit protection
yes
Pin allocation in accordance with standards
EN 60947-5-2
Housing material
PA-reinforced
Pressure drop
< 100 mbar
CE marking (see declaration of conformity)
As per EU EMC directive As per EU RoHS directive
Operating pressure
0 bar ... 10 bar
Accuracy of flow rate
± (3% o.m.v. + 0.3% FS)
Repetition accuracy margin in ± %FS
0.8 %FS
Output characteristic curve initial value
4 mA
Pneumatic connection
QS-6
Displayable unit(s)
l scfm
