562560 Festo Pneumatic Components
Part#:562560
Manufacturer:Festo
Alt. Part#:HSW-12-AP-AW
Product Lifecycle:Active
Get a quick Quote!

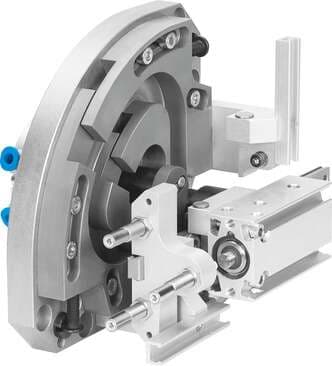

handling module HSW-12-AP-AW Pick and Place for repositioning parts at an angle of 90°, with additional rest position. Working stroke: 15 - 25 mm, Size: 12, Max. linear stroke at 90° swivel angle: 142/142 mm, Maximum Z-stroke, wait position: 15 mm, Z stro
About the manufacturer: Festo is one of the manufacturers that offers Pneumatic Components that you can order at marketplace.quotebeam.com. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 562560 Festo price in the box on the right side or send a quick quote.
Product Details
- Working stroke 15 mm ... 25 mm
- Mounting position Any
- Repetition accuracy end positions +/-0.02 mm
- Max. torque Mx 1.5 Nm
- Theoretical force at 6 bar 35 N
- Spring pressure piece material High-alloy steel
- Link material Case-hardened steel Hardened
- Size 12
- Type code HSW
- Design Linear guide plus ball bearing Positively driven motion sequence
- Operating medium Compressed air as per ISO 8573-1:2010 [7:-:-]
- Max. torque My 1.5 Nm
- Product weight 3060 g
- Pneumatic connection M5
- Retaining bracket material Wrought aluminum alloy Anodized
- Setting screw material High-alloy steel
- Maximum wait position module Z-stroke 15 mm
- Minimum cycle time 0.8 s
- Maximum process force in y direction 35 N
- Base plate material Wrought aluminum alloy Anodized
- Cross guide material Tempered steel
- Sensor rail material Wrought aluminum alloy Anodized
- Max. linear stroke at 90° swivel angle 142/142 mm
- Cushioning Pneumatic shock absorber at both ends Soft characteristic curve
- Position sensing For proximity sensor
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Max. torque Mz 1.5 Nm
- Type of mounting Via through-hole and centering sleeve
- Stops material High-alloy steel
- Swivel lever material Case-hardened steel Burnished
- Z-stroke 80 mm ... 100 mm
- Operating pressure 4 bar ... 8 bar
- Ambient temperature 0 °C ... 60 °C
- Max. payload 1 kg
- Wait position pneumatic connection M5
- Fixed link material Wrought aluminum alloy Anodized
