3568167 Festo Pneumatic Components
Part#:3568167
Manufacturer:Festo
Alt. Part#:SRBG-C1-N-20N-ZC-C2-C2-EX5
Product Lifecycle:Active
Get a quick Quote!

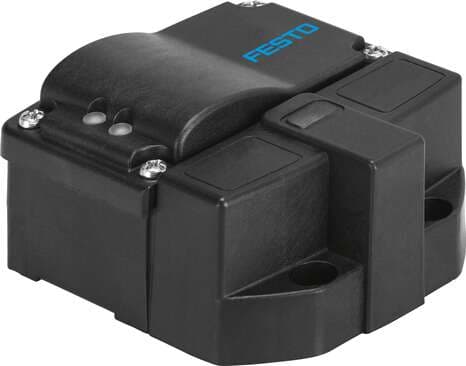

sensor box SRBG-C1-N-20N-ZC-C2-C2-EX5 For electrical feedback and position monitoring of process valves actuated with pneumatic quarter turn actuators, inductive measuring principle. Design: Angular, Based on the standard: (* EN 60947-5-6, * VDI/VDE 3845)
About the manufacturer: Festo is one of the manufacturers that offers Pneumatic Components that you can order at marketplace.quotebeam.com. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 3568167 Festo price in the box on the right side or send a quick quote.
Product Details
- Certification RCM compliance mark c UL us (OL)
- Explosion protection certification outside the EU EPL Ga (IEC-EX)
- Type of ignition protection for gas Ex ia IIC T6...T1 Ga
- Switching element function N/C contact
- DC operating voltage range 8.2 V
- Electrical connection, output Spring-loaded terminal
- Product weight 170 g
- Status indicator LED yellow = pneumatic valve switching status
- Effective internal capacitance Ci 100 nF
- Based on norm EN 60947-5-6 VDI/VDE 3845
- Certificate issuing authority IECEx TUN 18.0003X German Technical Control Board (TÜV) 16 ATEX 174269 X
- Ambient temperature -25 °C ... 100 °C
- Short-circuit protection yes
- Closable nominal conductor cross-section 0.2 mm² ... 2.5 mm²
- Storage temperature -40 °C ... 100 °C
- Type code SRBG
- Design Rectangular
- ATEX category gas II 1G
- Note on materials Contains paint-wetting impairment substances RoHS-compliant
- Switching output NAMUR
- Cable fitting M12x1.5 M20x1.5
- Housing material PBT
- Shock resistance Shock test with severity level 2 as per FN 942017-5 and EN 60068-2-27
- Max. input parameter of intrinsically safe circuit See IECEx certificate See ATEX certificate
- CE marking (see declaration of conformity) As per EU EMC directive As per EU RoHS directive
- Explosive ambient temperature See ATEX certificate See IECEx certificate
- Measuring principle Inductive
- Max. switching frequency 3000 Hz
- Electrical connection, input Spring-loaded terminal
- Mounting position Any
- Switching status indication LED yellow
- Degree of protection IP67
- Effective internal inductance Li 100 µH
- Explosion prevention and protection Zone 0 (ATEX) Zone 0 (IEC-EX)
- Safety integrity level (SIL) SIL 2
- Max. output current DC 3 mA
- Reverse polarity protection for all electrical connections
- Material of screws High-alloy stainless steel
- Contamination level 3
- Vibration resistance Transport application test with severity level 2 as per FN 942017-4 and EN 60068-2-6
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
