192315 Festo Compressed Air Preparation Units
Part#:192315
Manufacturer:Festo
Alt. Part#:LR-1/2-D-7-I-MIDI
Product Lifecycle:Active
Get a quick Quote!

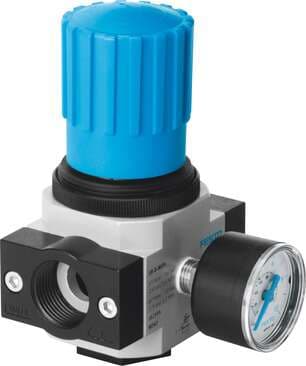

pressure regulator LR-1/2-D-7-I-MIDI With increased return exhaust, working pressure up to 7 bar. Size: Midi, Series: D, Actuator lock: Rotary knob with lock, Assembly position: Any, Design structure: directly-controlled diaphragm regulator
About the manufacturer: Festo is one of the manufacturers that offers Compressed Air Preparation Units that you can order at marketplace.quotebeam.com. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 192315 Festo price in the box on the right side or send a quick quote.
Product Details
- Type code LR
- Mounting position Any
- Symbol 00991558
- Pressure gauge with pressure gauge
- Operating medium Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Ambient temperature -10 °C ... 60 °C
- Type of mounting Front panel mounting With accessories
- Actuator lock Rotary knob with detent
- Operating pressure 0 bar ... 16 bar
- Controller function Outlet pressure constant With return flow function
- Standard nominal flow rate 4000 l/min
- Product weight 720 g
- Pneumatic connection 1 G1/2
- Seals material NBR
- Maritime classification See certificate
- Design Directly controlled diaphragm regulator
- Max. pressure hysteresis 0.2 bar
- Air quality class at the output Compressed air as per ISO 8573-1:2010 [7:4:4] Inert gas
- Note on materials RoHS-compliant
- Temperature of medium -10 °C ... 60 °C
- Pneumatic connection 2 G1/2
- Size Midi
- Series D
- Pressure regulation range 0.5 bar ... 7 bar
- Information on operating and pilot media Operation with oil lubrication possible (required for further use)
- Material of sub-base Die-cast zinc
- Housing material Die-cast zinc
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 192315 Specs
