192159 Festo Pneumatic Components
Part#:192159
Manufacturer:Festo
Alt. Part#:CRVZS-5
Product Lifecycle:Active
Get a quick Quote!

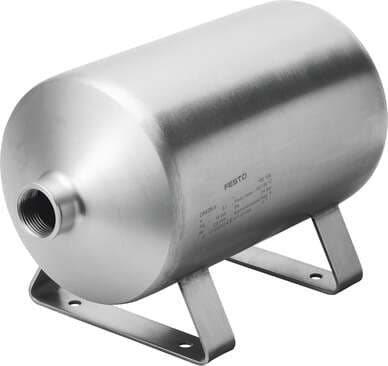

air reservoir CRVZS-5 Volume: 5 l, Assembly position: Downward condensate drain, Conforms to standard: AD 2000 reference sheet, Operating pressure: -0,95 - 16 bar, Authorisation: (* CRN, * TÜV)
About the manufacturer: Festo is one of the manufacturers that offers Pneumatic Components that you can order at marketplace.quotebeam.com. Festo Corp. has been a top supplier of automation and intelligent automation solutions for more than four decades in the United States and eight decades globally. The company is committed to transforming the manufacturing sector and enhancing business efficiency.
Check out the 192159 Festo price in the box on the right side or send a quick quote.
Product Details
- Volume 5 l
- Product weight 3581 g
- Air reservoir material High-alloy stainless steel
- Type code CRVZS
- Symbol 00991474
- Corrosion resistance class (CRC) 3 - High corrosion stress
- Mounting position Condensate drain downwards
- CE marking (see declaration of conformity) as per EU pressure equipment directive
- Certification CRN German Technical Control Board (TÜV)
- Type of mounting With through-hole
- Operating pressure -0.95 bar ... 16 bar
- Certificate issuing authority CRN0H15669.5C
- For use in the food industry See supplementary material information
- Max. tightening torque for condensate drain 27 Nm
- Pneumatic connection G1
- Conforms to standard AD 2000
- Operating medium Compressed air as per ISO 8573-1:2010 [-:-:-] Nitrogen
- Temperature of medium -10 °C ... 100 °C
- Ambient temperature -10 °C ... 100 °C
- Note on materials Free of copper and PTFE RoHS-compliant
- Max. tightening torque for connecting thread 130 Nm
- Condensate drain connection G3/8
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents 192159 Specs
