XTCE025C10D Eaton Industrial Automation Components
Part#:XTCE025C10D
Manufacturer:Eaton
Product Lifecycle:Active
Get a quick Quote!

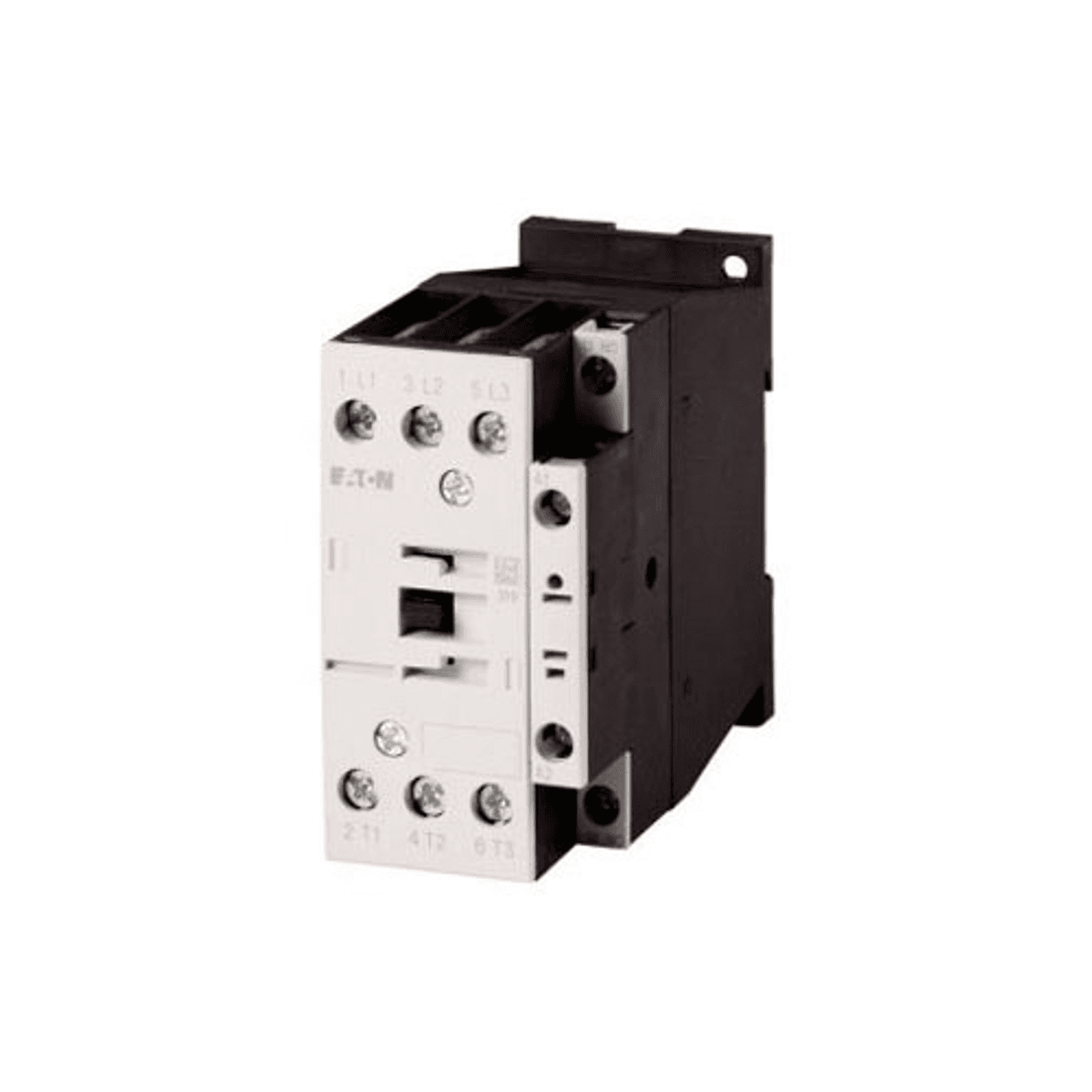

XTCE025C10D Eaton - Eaton XT IEC contactor, 25A, 550 Vac 50 Hz, 600 Vac 60 Hz, 1NO, 25A, Frame C, 45 mm, 50-60 Hz, 2, 3, 5/ 7.5, 10, 15, 20 hp (1/3PH @115, 200, 230/200, 230, 460, 575 V), Three-pole, Screw terminals, Full voltage non-reversing contactor
About the manufacturer: Eaton is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. At Eaton, we are dedicated to improving quality of life and preserving the environment through power management technologies that emphasize reliability, efficiency, safety, and sustainability. Our attention is on impactful solutions, and we are committed to their success.
Check out the XTCE025C10D Eaton price in the box on the right side or send a quick quote.
Product Details
- Product Height 3.898 in
- Coil voltage 550 Vac, 50/60 Hz
- Amperage Rating 25A
- Compliances RoHS Compliant CE Marked
- Product Width 1.85 in
- Certifications CSA Certified EN 60947 UL Listed IEC 60947
- Number Of Poles Three-pole
- Catalog Number XTCE025C10D
- Product Length/Depth 3.425 in
- Series XT IEC
- Warranty 1 year
- EAN 4015082771270
- Frame size 45 mm
- Operation Non-reversing
- Product Weight .9 lb
- Continuous ampere rating 25 A
- Contact configuration 1 NO
- Terminals Screw terminals
- Product Name Eaton XT IEC contactor
- Catalog Notes Screw terminals (6-65A); 5 mm (80-150A); no lugs (185-2000A)
- Frequency rating 50-60 Hz
- HP rating - max 2, 3, 5/ 7.5, 10, 15, 20 hp (1/3PH @115,200,230/200,230,460,575 V)
- Type Full Voltage Non-reversing Contactor
- Frame 45 millimeters
- Weight .9 pounds
- Coil Voltage 550 volts
- Height 3.898 inches
- Contact Configuration 1NO
- Length 3.425 inches
- Terminal Type Screw Terminals
- Amperage 25 amperes
- Shipping Weight: 0.90 lbs.
- Shipping Width: 4.00 In.
- UPC: 015082771274
- TS PIK: 125233110
- Shipping Height: 3.50 In.
- Shipping Length: 2.00 In.
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
1-year warranty
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of Eaton
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
Eaton Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Eaton Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Eaton, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
