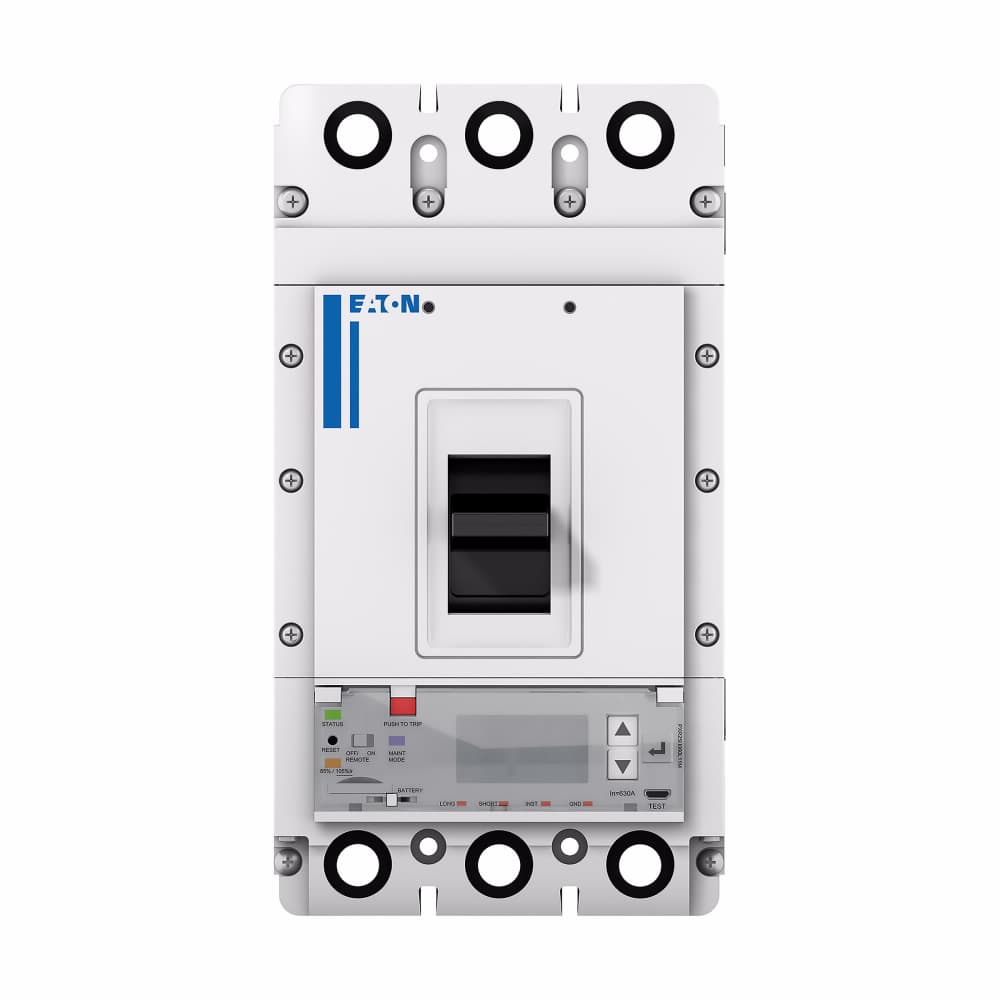

PDG32N0125P5YJ Eaton Molded Case Circuit Breakers (MCCB)
Part#:PDG32N0125P5YJ
Manufacturer:Eaton
Product Lifecycle:Active
Get a quick Quote!
Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 125A, 85kA/480V, PXR25 ARMS LSIG w/ Modbus RTU, CAM Link, ZSI and Relays, Standard Line and Load (PDG3X2TA300)
About the manufacturer: Eaton is one of the manufacturers that offers Molded Case Circuit Breakers (MCCB) that you can order at marketplace.quotebeam.com. At Eaton, we are dedicated to improving quality of life and preserving the environment through power management technologies that emphasize reliability, efficiency, safety, and sustainability. Our attention is on impactful solutions, and we are committed to their success.
Check out the PDG32N0125P5YJ Eaton price in the box on the right side or send a quick quote.
Product Details
- Catalog Number PDG32N0125P5YJ
- Certifications CSA UL 489 CCC Marked IEC 60947-2
- Switch off technique Electronic
- Product Weight 5.2163 kg
- Product Width 138.9 mm
- Amperage Rating 125 A
- Communication Modbus RTU and CAM Link
- Product Height 257.1 mm
- Rated operation voltage (Ue) at AC - max 600
- Voltage rating 600 Vac
- Product Length/Depth 109.1 mm
- Special features ZSI / Modbus / Relays / CAM
- Class Class A
- Product Name Eaton Power Defense molded case circuit breaker
- Frame 3
- Trip Type PXR 25 LSIG w/ARMS
- Interrupt rating 85 kAIC at 480 Vac
- Circuit breaker frame type Complete breaker
- UPC 786679380055
- Voltage rating - max 600 V
- Terminals Standard Line and Load
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Number of poles Two-pole
- Compliances RoHS Compliant
- Circuit breaker type PD3 Global
- Interrupt rating range 50 kAIC @600V (UL/CSA) 150 kAIC Icu/ 100 kAIC Ics/ 330 kAIC Icm @240V (IEC) 20 kAIC Icu/ 10 kAIC Ics/ 42 kAIC Icm @690V (IEC) 22 kAIC Icu @250 Vdc 70 kAIC Icu/ 70 kAIC Ics/ 154 kAIC Icm @380-415V (IEC) 85 kAIC @480V (UL) 35 kAIC Icu/ 25 kAIC Ics/ 73
