PDG32F0400D2DL Eaton Molded Case Circuit Breakers (MCCB)
Part#:PDG32F0400D2DL
Manufacturer:Eaton
Product Lifecycle:Active
Get a quick Quote!

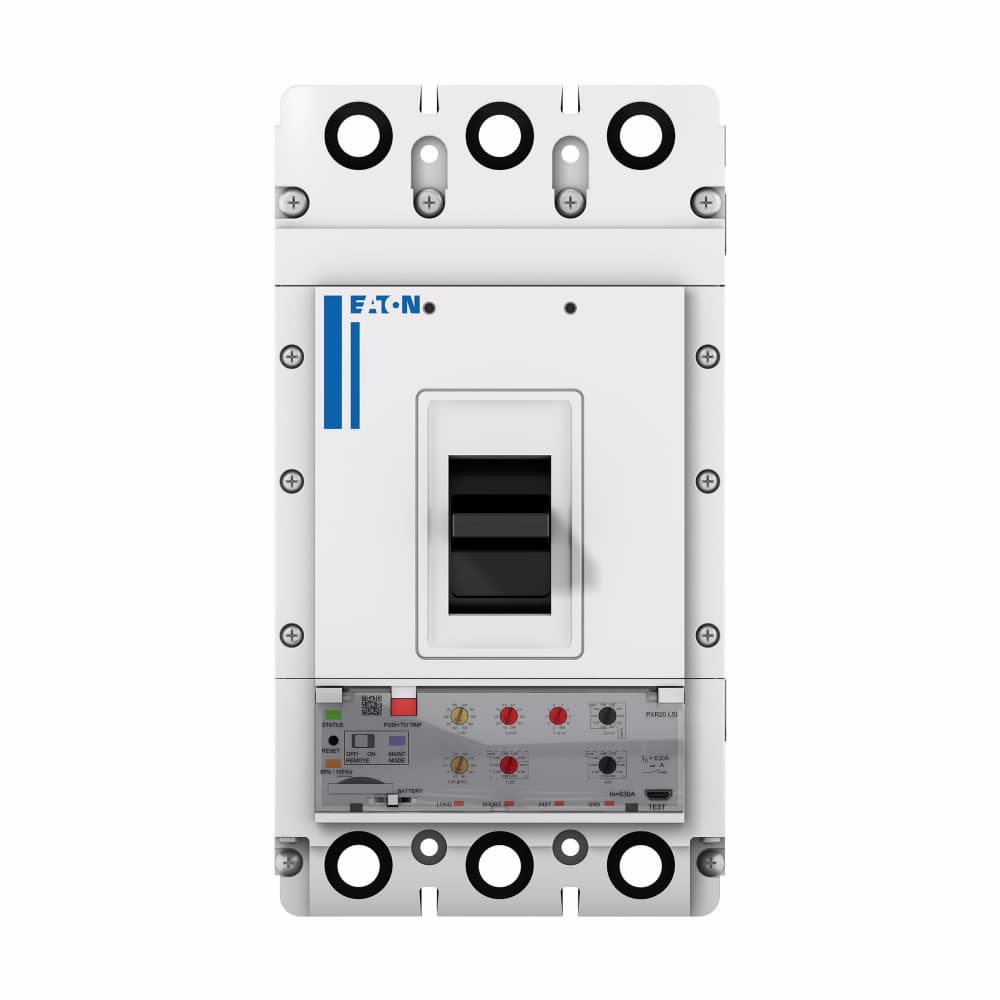

Eaton Power Defense molded case circuit breaker, Globally Rated, Frame 3, Two Pole, 400A, 25kA/480V, PXR20D LSI w/ Modbus RTU, CAM Link and Relays, Standard Terminals Load Only (PDG3X2TA400)
About the manufacturer: Eaton is one of the manufacturers that offers Molded Case Circuit Breakers (MCCB) that you can order at marketplace.quotebeam.com. At Eaton, we are dedicated to improving quality of life and preserving the environment through power management technologies that emphasize reliability, efficiency, safety, and sustainability. Our attention is on impactful solutions, and we are committed to their success.
Check out the PDG32F0400D2DL Eaton price in the box on the right side or send a quick quote.
Product Details
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Voltage rating - max 600 V
- Product Width 138.9 mm
- Interrupt rating 25 kAIC at 480 Vac
- Voltage rating 600 Vac
- Compliances RoHS Compliant
- Rated operation voltage (Ue) at AC - max 600
- Circuit breaker frame type Complete breaker
- Product Height 257.1 mm
- Amperage Rating 400 A
- Terminals Standard Terminals Load Only
- Product Name Eaton Power Defense molded case circuit breaker
- Number of poles Two-pole
- Trip Type PXR 20D LSI
- Product Weight 5.2163 kg
- Frame 3
- Class Class A
- UPC 786679976913
- Switch off technique Electronic
- Certifications UL 489 IEC 60947-2 CSA CCC Marked
- Interrupt rating range 10 kAIC Icu @250 Vdc 35 kAIC @240V (UL)
- Catalog Number PDG32F0400D2DL
- Product Length/Depth 109.1 mm
- Circuit breaker type PD3 Global
- Special features Modbus / Relays / CAM
- Communication Modbus RTU and CAM Link
