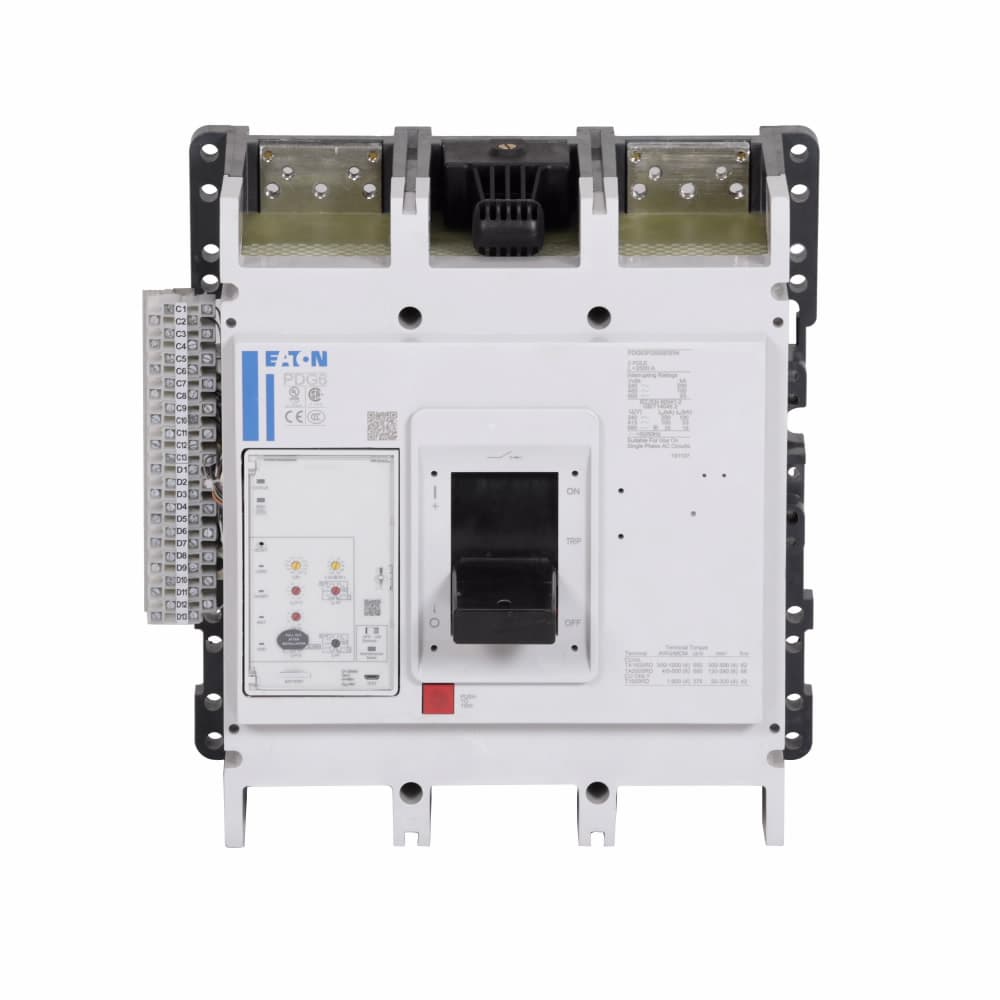

PDF63P1600E5XM Eaton Molded Case Circuit Breakers (MCCB)
Part#:PDF63P1600E5XM
Manufacturer:Eaton
Product Lifecycle:Active
Get a quick Quote!
Eaton Power Defense molded case circuit breaker, Globally Rated 100% UL, Frame 6, Three Pole, 1600A, 100kA/480V, PXR20 ARMS LSIG w/ CAM Link, ZSI and Relays, No Terminals (Metric Tapped Conductors)
About the manufacturer: Eaton is one of the manufacturers that offers Molded Case Circuit Breakers (MCCB) that you can order at marketplace.quotebeam.com. At Eaton, we are dedicated to improving quality of life and preserving the environment through power management technologies that emphasize reliability, efficiency, safety, and sustainability. Our attention is on impactful solutions, and we are committed to their success.
Check out the PDF63P1600E5XM Eaton price in the box on the right side or send a quick quote.
Product Details
- Special features ZSI / CAM / Relays
- Class Class A
- Trip rating 1600 A
- Terminals No Terminals
- Product Height 406.4 mm
- Certifications CCC Marked IEC 60947-2
- Interrupt rating range 200 kAIC Icu/ 100 kAIC Ics/ 440 kAIC Icm @240V (IEC) 200 kAIC @240V (UL) 100 kAIC Icu/ 50 kAIC Ics/ 220 kAIC Icm @440V (IEC) 65 kAIC @600/347V (UL) 40 kAIC Icu/ 25 kAIC Ics/ 84 kAIC Icm @525V South Africa (IEC) 100 kAIC Icu/ 50 kAIC Ics/ 220 kAIC Icm
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Frame 6
- Circuit breaker frame type Complete breaker
- Catalog Number PDF63P1600E5XM
- Compliances RoHS Compliant
- Circuit breaker type PD6 Global (100% UL)
- Product Width 393.7 mm
- Switch off technique Electronic
- Product Length/Depth 247.7 mm
- Interrupt rating 100 kAIC at 480 Vac
- Number of poles Three-pole
- Product Name Eaton Power Defense molded case circuit breaker
- Voltage rating - max 600 V
- Communication CAM Link
- UPC 786679981115
- Amperage Rating 1600 A
- Voltage rating 600 Vac
- Product Weight 77.11 kg
- Rated operation voltage (Ue) at AC - max 690
- Trip Type PXR 20 LSIG w/ARMS
