PDF54P0800D5MN Eaton Industrial Automation Components
Part#:PDF54P0800D5MN
Manufacturer:Eaton
Product Lifecycle:Active
Get a quick Quote!

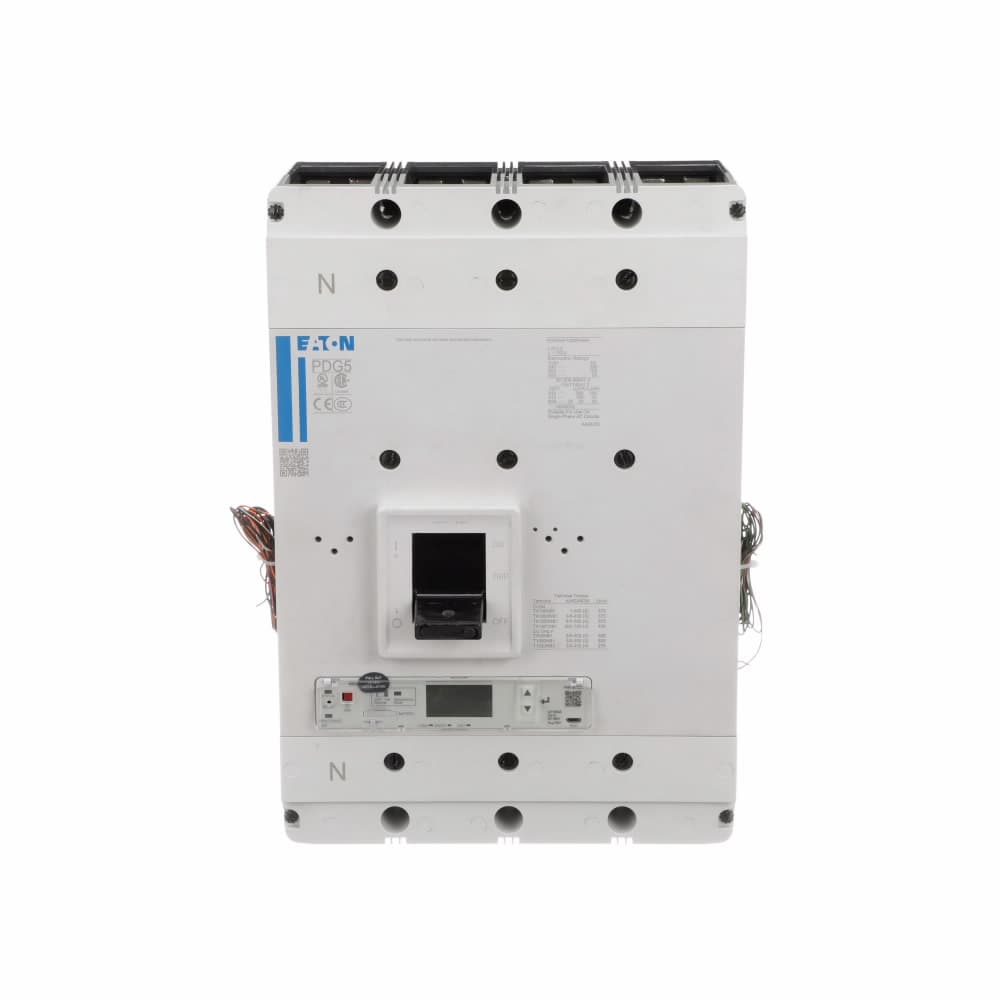

PDF54P0800D5MN Eaton - Eaton Power Defense molded case circuit breaker, Globally Rated 100% UL, Frame 5, Four Pole (100% N), 800A, 100kA/480V, PXR20D ARMS LSIG w/ Modbus RTU and Relays, No Terminals
About the manufacturer: Eaton is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. At Eaton, we are dedicated to improving quality of life and preserving the environment through power management technologies that emphasize reliability, efficiency, safety, and sustainability. Our attention is on impactful solutions, and we are committed to their success.
Check out the PDF54P0800D5MN Eaton price in the box on the right side or send a quick quote.
Product Details
- Product Height 406.4 mm
- Rated operation voltage (Ue) at AC - max 690
- Protection 100% neutral protection
- Product Width 282.7 mm
- Switch off technique Electronic
- Communication Modbus RTU
- Product Name Eaton Power Defense molded case circuit breaker
- Number of poles Four-pole (100% N)
- Interrupt rating range 100 kAIC @480/277V (UL) 200 kAIC @240V (UL) 85 kAIC Icu/ 40 kAIC Ics/ 187 kAIC Icm @480V Brazil (IEC) 35 kAIC Icu/ 18 kAIC Ics/ 73.5 kAIC Icm @690V (IEC) 40 kAIC Icu/ 25 kAIC Ics/ 84 kAIC Icm @525V South Africa (IEC) 65 kAIC @600/347V (UL) 100 kAIC
- Certifications IEC 60947-2 CCC Marked
- Amperage Rating 800 A
- Circuit breaker frame type Complete breaker
- Catalog Number PDF54P0800D5MN
- Special features Modbus / relays
- Circuit breaker type PD5 Global (100% UL)
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Class Class A
- Product Length/Depth 139.7 mm
- Frame 5
- Voltage rating 600 Vac
- UPC 786679263945
- Interrupt rating 100 kAIC at 480 Vac
- Terminals No Terminals
- Product Weight 21.32 kg
- Compliances RoHS Compliant
- Voltage rating - max 600 V
- Amperage 800 amperes
- Weight 21.32 kilograms
- Trip Type PXR 20D LSIG W/ARMS
- Height 406.4 millimeters
- Voltage 600 volts
- Length 139.7 millimeters
- Terminal Type No Terminals
- Circuit Breaker Type PD5 Global
