HFD3050 Eaton Industrial Automation Components
Part#:HFD3050
Manufacturer:Eaton
Product Lifecycle:Active
Get a quick Quote!

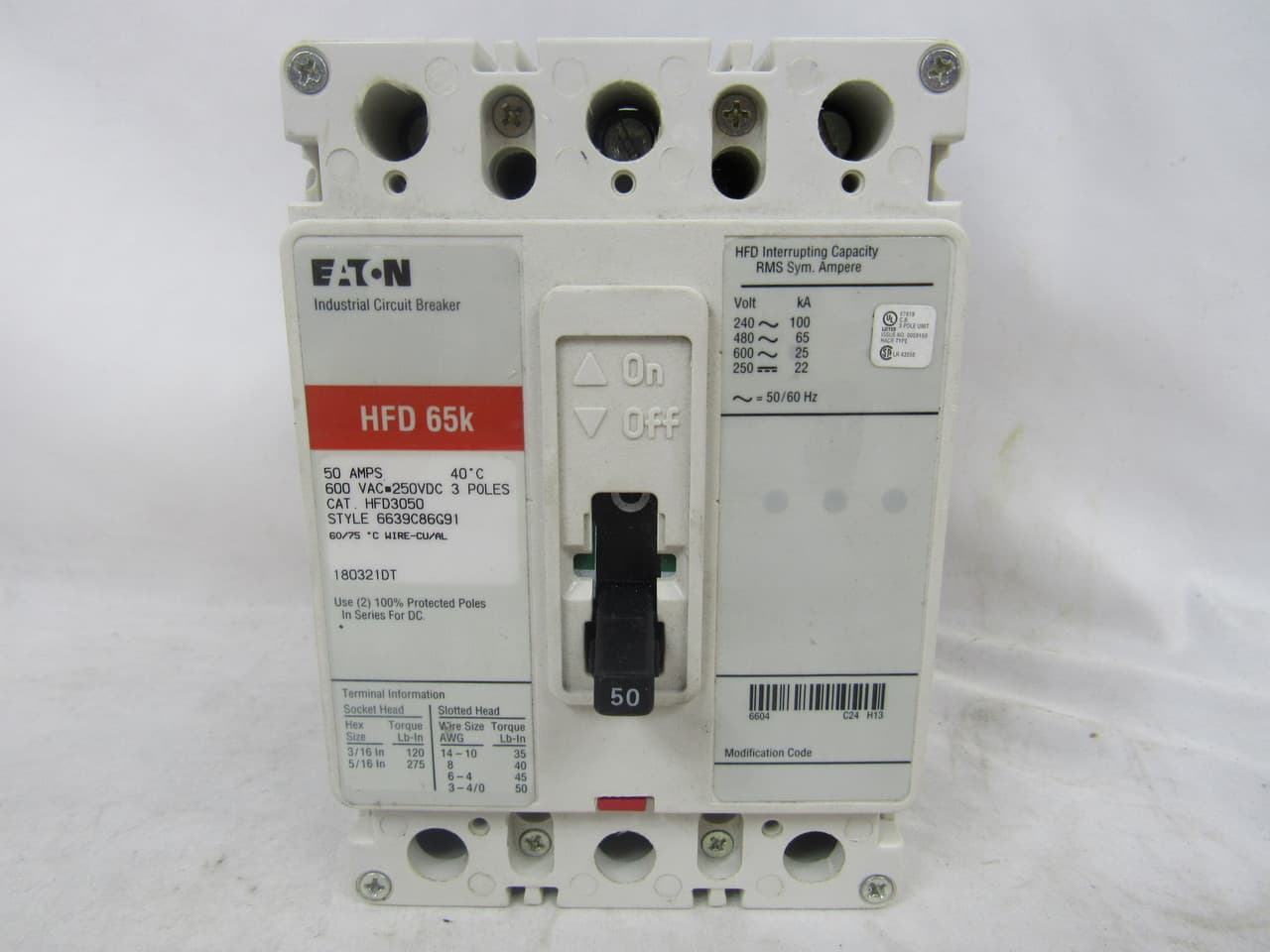

HFD3050 Eaton - Eaton Series C complete molded case circuit breaker, F-frame, HFD, Complete breaker, Fixed thermal, Fixed magnetic trip type, Three-pole, 50 A, 600 Vac, 250 Vdc, Load side, 50/60 Hz
About the manufacturer: Eaton is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. At Eaton, we are dedicated to improving quality of life and preserving the environment through power management technologies that emphasize reliability, efficiency, safety, and sustainability. Our attention is on impactful solutions, and we are committed to their success.
Check out the HFD3050 Eaton price in the box on the right side or send a quick quote.
Product Details
- Interrupt rating 65 kAIC at 480 Vac 100 kAIC at 240 Vac
- Trip Type Fixed Magnetic, Fixed Thermal
- Product Width 4.13 in
- Product Height 6 in
- Voltage rating 600 Vac, 250 Vdc
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Circuit breaker type HFD
- Catalog Number HFD3050
- Terminals Load side
- Product Weight 4.3 lb
- Frame F
- Number of poles Three-pole
- Product Length/Depth 3.38 in
- Series Series C
- Amperage Rating 50 A
- Product Name Eaton Series C complete molded case circuit breaker
- Circuit breaker frame type Complete breaker
- UPC 786679175859
- Certifications UL Listed
- Frequency rating 50/60 Hz
- UPC: 786679175859
- Volts: 600 VAC at 50/60 Hertz
- Approval: UL 489
- Amps: 32 A
- Shipping Height: 4.80 In.
- Terminal Type: Standard Pressure Load
- Shipping Weight: 4.30 lbs.
- Maximum AC Voltage Rating: 600 Volt
- Series: C, HFD
- Size: 4.13 Inch Width x 3.38 Inch Depth x 6 Inch Height
- Shipping Length: 7.40 In.
- Type: Molded Case
- Shipping Width: 5.00 In.
- Frame Type: FD
- Poles: 3
- Maximum DC Voltage Rating: 250 Volt
- Interrupting Rating: 100 kA at 240 Volt AC at 50/60 Hertz
- Circuit Breaker Type HFD
- Frequency 50 hertz, 60 hertz
- Length 3.38 inches
- Interrupt Rating 65 kiloamps
- Height 6 inches
- Weight 4.3 pounds
- Amperage 50 amperes
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents HFD3050 Specs
