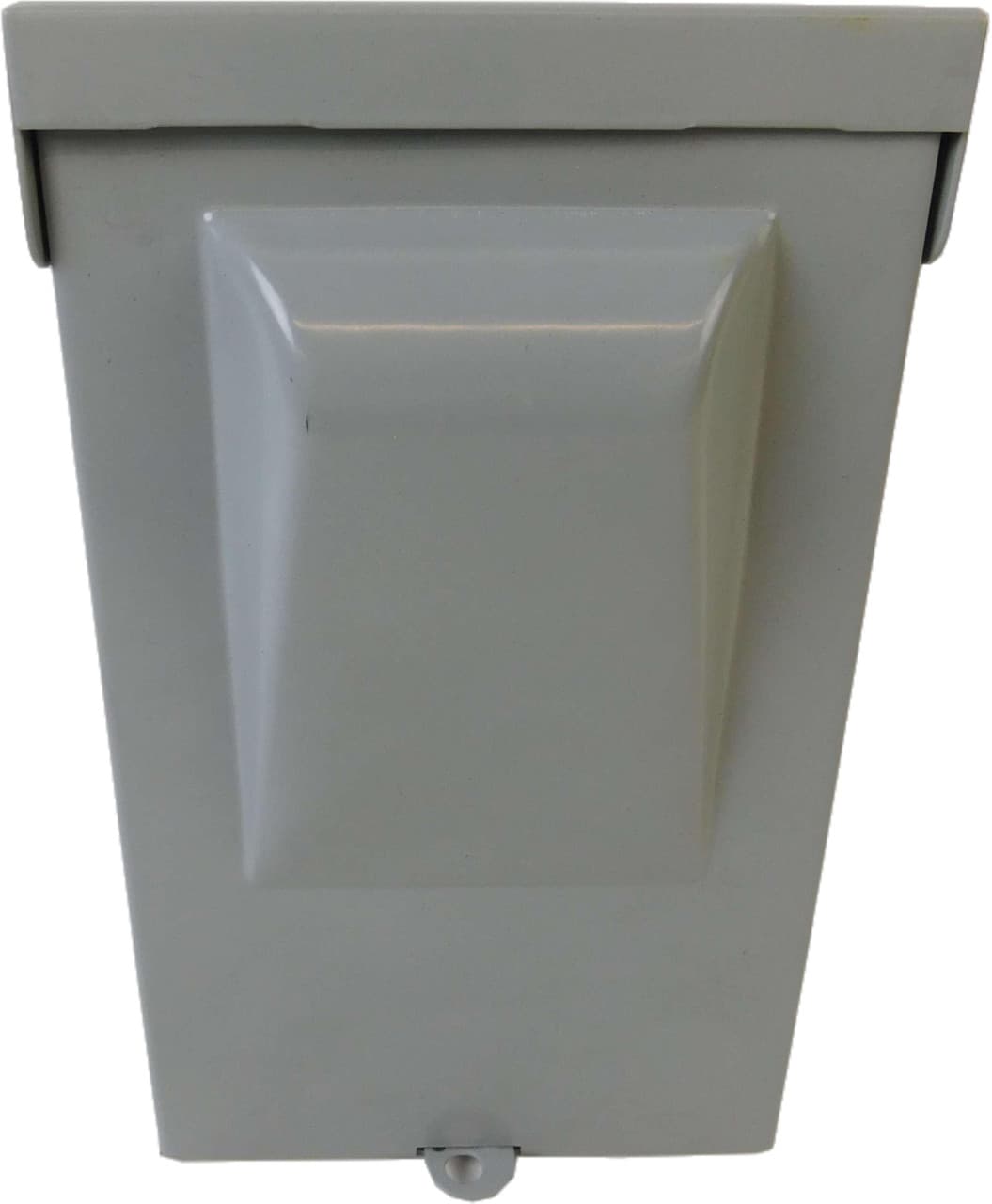

DPU222R Eaton Industrial Automation Components
Part#:DPU222R
Manufacturer:Eaton
Product Lifecycle:Active
In-stock parts: 9
Jun 29, 2025
DPU222R Eaton - Eaton air conditioning disconnect, Non-fused pullout, 60A, 120/240V, 10 kAIC, #14-3 Cu/Al 60°C or 75°C, NEMA 3R Galvanized Steel enclosure, 10 hp at 240V, ANSI 61 gray
About the manufacturer: Eaton is one of the manufacturers that offers Industrial Automation Components that you can order at marketplace.quotebeam.com. At Eaton, we are dedicated to improving quality of life and preserving the environment through power management technologies that emphasize reliability, efficiency, safety, and sustainability. Our attention is on impactful solutions, and we are committed to their success.
Check out the DPU222R Eaton price in the box on the right side or send a quick quote.
Product Details
- Type Non-fused Pullout
- Certifications CSA Certified UL Listed
- Enclosure 3R
- Product Width 5.5 in
- Color Gray
- Product Weight 3 lb
- Warranty Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
- Interrupt rating 10 kAIC
- Horsepower 10 horse power
- Product Height 2 in
- UPC 782113926858
- Voltage rating 120/240 V
- Product Length/Depth 9 in
- Catalog Notes For replacement pullout head, order part number 96-3258-4.
- Amperage Rating 60A
- Catalog Number DPU222R
- Wire size #14-3 AWG Cu/Al
- Product Name Eaton air conditioning disconnect
- Enclosure material Galvanized steel
- UPC: 782113926858
- Enclosure: NEMA 3R
- Size: 5.4 Inch Width x 3.15 Inch Depth x 8.7 Inch Height
- Shipping Weight: 2.70 lbs.
- Fuse Provision: Non-Fusible
- Shipping Width: 6.00 In.
- Volts: 120/240 V
- Enclosure Material: ANSI 61 Gray Galvanized Steel
- Amps: 60 A
- Type: Air Conditioner Disconnect Pull-Out
- Shipping Length: 9.00 In.
- Gauge: 14 to 3 AWG (Copper/Aluminum) at 60 Deg C or 75 Deg C
- Approval: UL
- Power: 10 HP at 240 Volt
- Shipping Height: 3.00 In.
- Series: DPU
- Length 9 inches
- Voltage 120/240 volts
- Amperage 60 amperes
- Weight 3 pounds
- Height 2 inches
- Enclosure Material Galvanized Steel
- Interrupt Rating 10 kiloamps
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents DPU222R Specs
