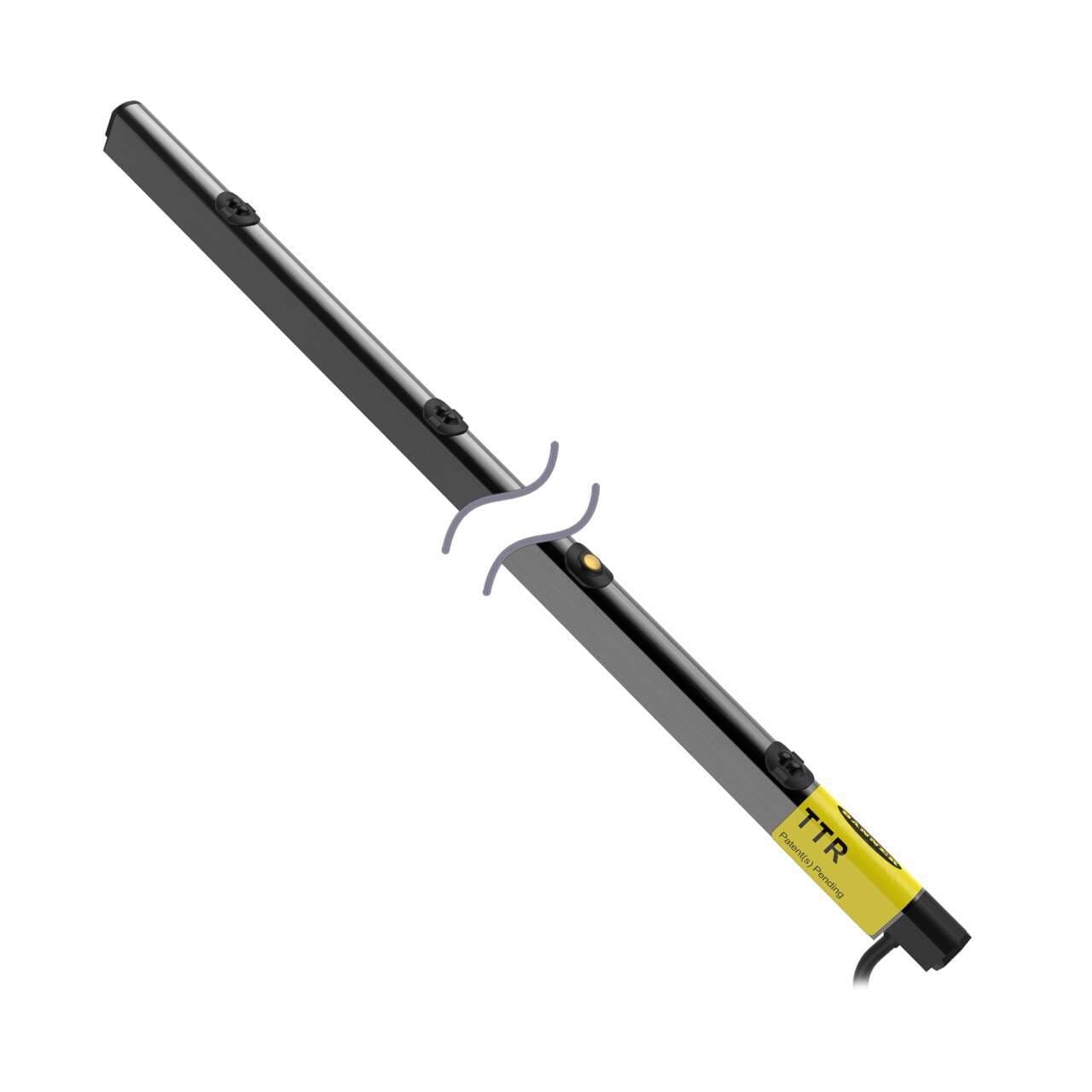

TTR991RPSD6T-1.0Q5-075 Banner Safety Light Curtains
Part#:TTR991RPSD6T-1.0Q5-075
Manufacturer:Banner
Alt. Part#:809862
Product Lifecycle:Active
Get a quick Quote!
TTR Series 6 Beam Sensor Array 39.0 in Between Frame; Beam Spacing: 162 mm; Range: 120 mm Diffuse; Output: DO PNP; Input: 18-30 V dc; 1 m (3.3 ft) M12 Conn. T: T-Slot Mount Endcap
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TTR991RPSD6T-1.0Q5-075 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight458.12792 g
- Country Of OriginMX
- Max Sensing Range (mm) 120
- Indicator Indicator LEDs
- Slot Depth/Array Length (mm) 991
- Number of Pins 4
- NEMA Rating N/A
- Delay at Power-up (ms) 1500
- Cable Length (m) 1
- Quick Disconnect Type M12 (Euro)
- Max Op. Temperature (°C) 55
- Connection Pigtail QD
- Output response time (ms) 1
- Power Supply/Supply Voltage 18-30 V dc
- Max Op. Relative Humidity (%) 95% @ 55°C
- Sensing Mode (Detailed) Diffuse
- Adjustments N/A
- Number of Beams 6
- End Cap Type T: T-Slot Mounting
- Slot Overall Depth (mm) 12
- Beam to Beam Spacing [mm] 162
- Primary Housing Material Black Anodized Aluminum
- Lens Material Polycarbonate
- Distance to First Beam [mm] 75
- Housing Style Roller Conveyor
- Power DC
- Outputs PNP
- IP Rating IP50
- Operation Dark Operate
- Min Op. Temperature (°C) -10
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TTR991RPSD6T-1.0Q5-075 Description
TTR Series 6 Beam Sensor Array 39.0 inch Between Frame, Beam Spacing: 162 mm Range: 120 mm Diffuse, Output: DO PNP Input: 18 - 30 V dc, M12 Conn. T: T-Slot Mount Endcap 1m (3 ft)
