TTR892APSC7D-2.0FL-CTR Banner Safety Light Curtains
Part#:TTR892APSC7D-2.0FL-CTR
Manufacturer:Banner
Alt. Part#:810176
Product Lifecycle:Active
Get a quick Quote!
TTR Series 7 Beam Sensor Array 35.13 in Between Frame; Beam Spacing: 108 mm; Range: 120 mm Diffuse; Output: LO PNP; Input: 18-30 V dc; 2 m (6.5 ft) Flying Leads Endcap D: Flat Up / Round
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TTR892APSC7D-2.0FL-CTR Banner price in the box on the right side or send a quick quote.
Product Details
- Weight435.44832 g
- Country Of OriginMX
- Primary Housing Material Black Anodized Aluminum
- Max Op. Temperature (°C) 55
- Cable Length (m) 2
- Outputs Bimodal
- Min Op. Temperature (°C) -10
- Connection Cable
- Indicator Indicator LEDs
- Max Sensing Range (mm) 120
- Adjustments N/A
- Number of Beams 7
- Slot Depth/Array Length (mm) 886
- Power Supply/Supply Voltage 18-30 V dc
- Max Op. Relative Humidity (%) 95% @ 55°C
- Quick Disconnect Type No QD
- Power DC
- Operation Light Operate
- End Cap Type T: T-Slot Mounting
- Output response time (ms) 1
- NEMA Rating N/A
- Housing Style Sensing Array Bar
- Lens Material Polycarbonate
- Distance to First Beam [mm] 122
- Sensing Mode (Detailed) Diffuse
- IP Rating IP50
- Delay at Power-up (ms) 1500
- Beam to Beam Spacing [mm] 108
- Number of Pins 4
- Slot Overall Depth (mm) 12
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TTR892APSC7D-2.0FL-CTR Description

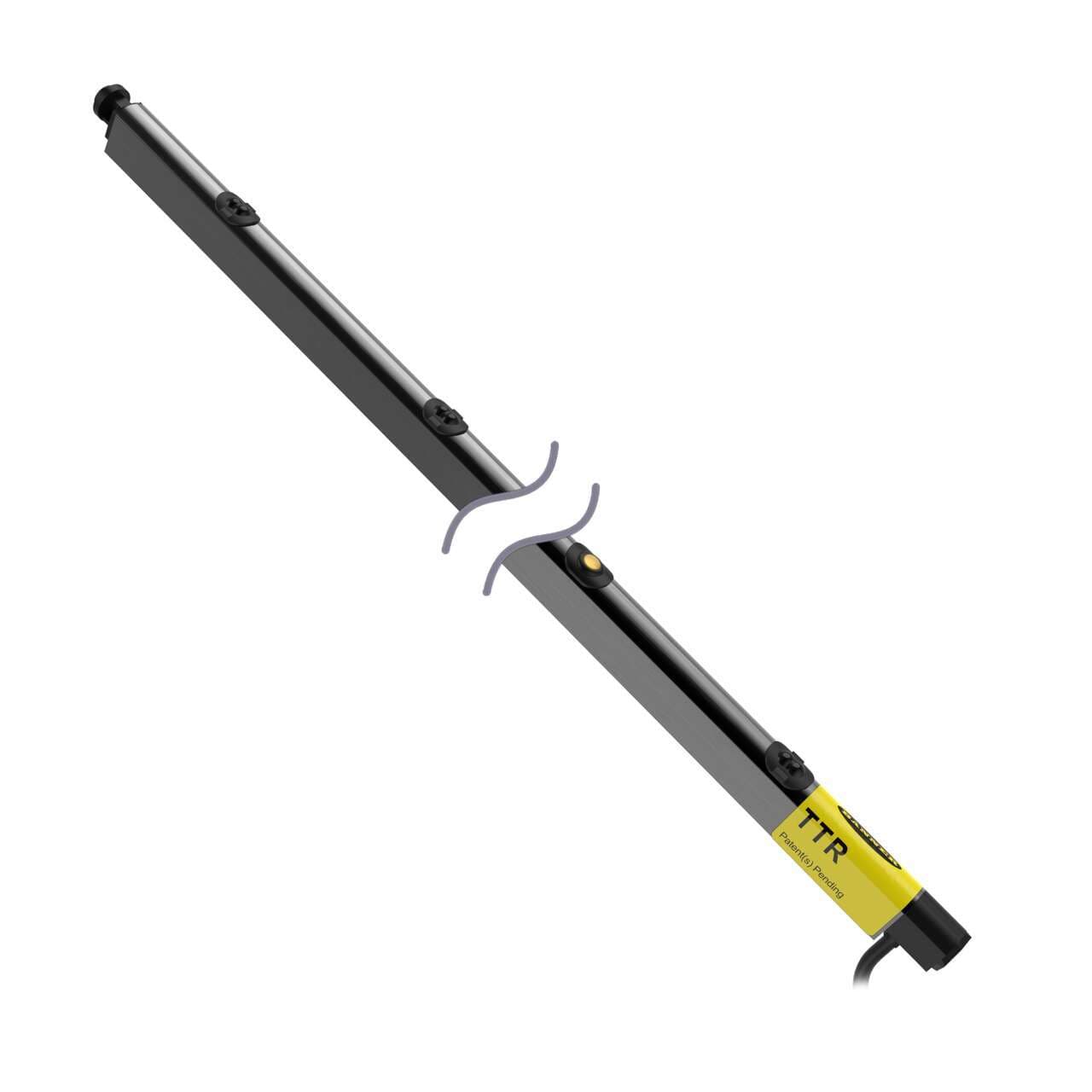

Banner Engineering TTR892APSC7D-2.0FL-CTR is a sensor array designed with a diffuse mode featuring 7 beams. This part is pre-wired with a 2m cable that has bare end flying leads for connection. It has a rectangular shape with an array length of 892mm and operates within a supply voltage range of 18Vdc to 30Vdc, with a nominal voltage of 24Vdc. The ambient air temperature suitable for its operation ranges from -10 to +70°C. It offers a degree of protection rated at IP50. The sensor array is designed with a beam spacing or pitch of 108mm and has a sensing distance of 120mm. It includes 1 x digital output (PNP transistor) and utilizes infrared (IR) light with a wavelength of 940 nm for detection.
Related documents TTR892APSC7D-2.0FL-CTR Specs
