TTR600BMSB6B-2.0FL-CTR Banner Safety Light Curtains
Part#:TTR600BMSB6B-2.0FL-CTR
Manufacturer:Banner
Alt. Part#:809793
Product Lifecycle:Active
Get a quick Quote!
TTR Series 6 Beam Sensor Array 23.61 in Between Frame; Beam Spacing: 93.1 mm; Range: 120 mm Diffuse; Output: Bimodal; Input: 18-30 V dc; 2 m (6.5 ft) Flying Leads Endcap B: Point Up / Hex & Round
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TTR600BMSB6B-2.0FL-CTR Banner price in the box on the right side or send a quick quote.
Product Details
- Weight358.33768 g
- Country Of OriginMX
- NEMA Rating N/A
- Cable Length (m) 2
- Outputs Bimodal
- Indicator Indicator LEDs
- Beam to Beam Spacing [mm] 93.1
- Max Sensing Range (mm) 120
- Power DC
- Adjustments N/A
- IP Rating IP50
- End Cap Type B: Hex Point Up / Spring 11 mm Hex - 8 mm Round
- Lens Material Polycarbonate
- Output response time (ms) 1
- Number of Beams 6
- Primary Housing Material Black Anodized Aluminum
- Min Op. Temperature (°C) -10
- Connection Cable
- Number of Pins 4
- Operation Light/Dark Operate
- Slot Depth/Array Length (mm) 600
- Power Supply/Supply Voltage 18-30 V dc
- Max Op. Temperature (°C) 55
- Distance to First Beam [mm] 67.25
- Housing Style Roller Conveyor
- Slot Overall Depth (mm) 19
- Delay at Power-up (ms) 1500
- Max Op. Relative Humidity (%) 95% @ 55°C
- Quick Disconnect Type No QD
- Sensing Mode (Detailed) Diffuse
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TTR600BMSB6B-2.0FL-CTR Description

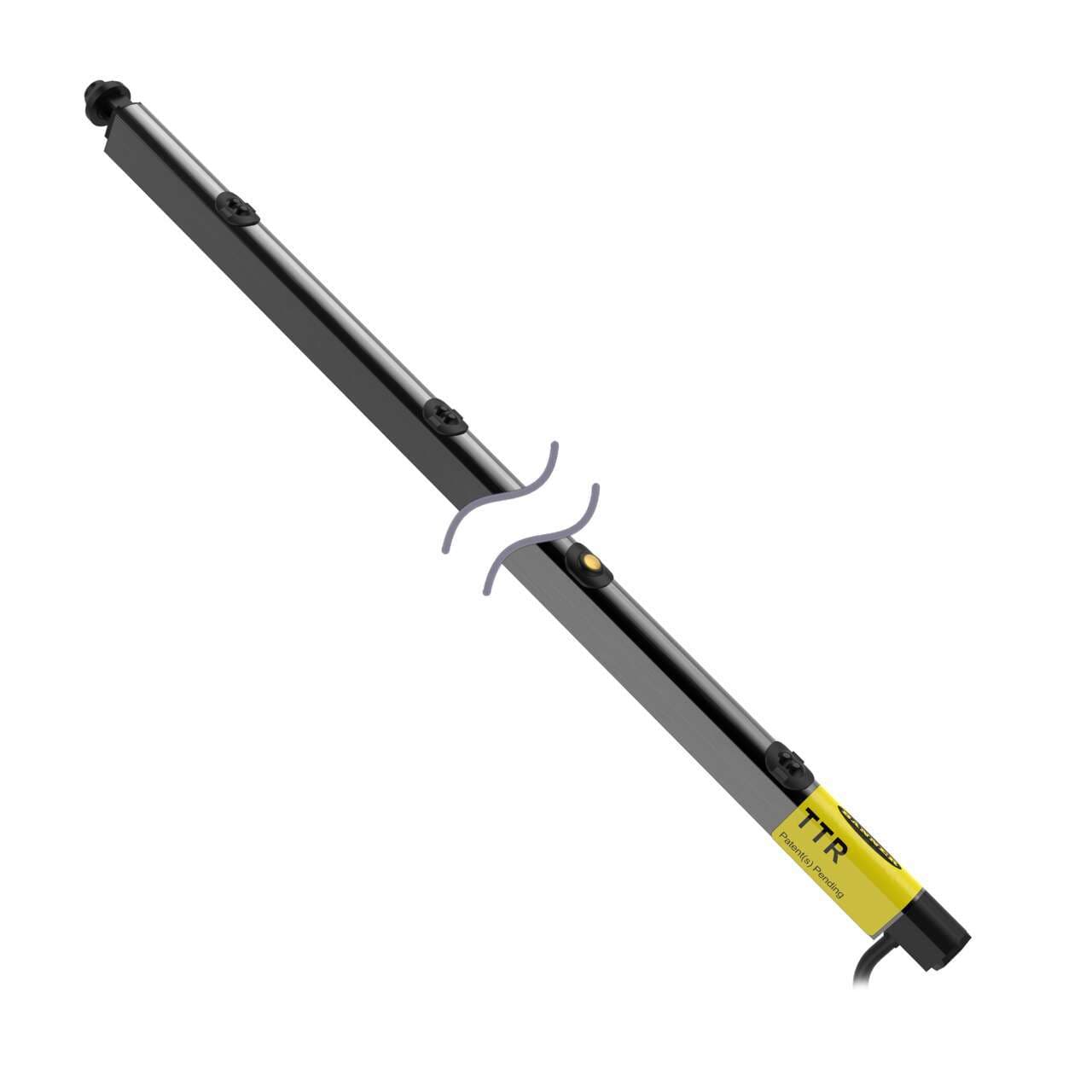

Banner Engineering TTR600BMSB6B-2.0FL-CTR is a sensor array designed with a diffuse mode featuring 6 beams. This part is pre-wired with a 2-meter cable that has bare end flying leads for connections. It has a rectangular shape with dimensions specifying a 600mm array length and operates within a supply voltage range of 18Vdc to 30Vdc, with a nominal voltage of 24Vdc. The ambient air temperature suitable for its operation ranges from -10 to +70 degrees Celsius. It offers a degree of protection rated at IP50. The distance between beams, or beam spacing/pitch, is 93.1mm. It includes 1 digital output (PNP/NPN transistor) and has a sensing distance of 120mm. The light emitted by this sensor is in the infrared (IR) spectrum with a wavelength of 940 nm.
