TL50PBL1ALSQ Banner Signal Towers
Part#:TL50PBL1ALSQ
Manufacturer:Banner
Alt. Part#:808191
Product Lifecycle:Active
Get a quick Quote!
TL50 Pro Tower Light with Sealed Loud Audible, Beacon Black Housing: 1 Lighted Segment; Voltage: 10-30 V dc; Environ. Rating: IP67; Colors: Multicolor; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL50PBL1ALSQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight272.1552 g
- Country Of OriginMX
- Number of Tower Light Segments 2
- Housing Style Base Mount - Tower
- Max Current Color (mA) 220
- Audible Operating Frequency (kHz) 2.9
- Modbus RTU No
- Power Source DC
- Connection Integral QD
- Lumens Color 2 29.2
- Max Current - Audible Alarm (mA) 35
- Feature: Chemical Resistant No
- Primary Housing Material ABS
- Lumens Color 1 21.8
- Color 3 - Wavelength/Color Temp/Coordinates 620 nm
- NEMA Type and UL Type Rating NEMA and UL 13
- Mounting Thread M30 x 1.5
- Color 1 - Wavelength/Color Temp/Coordinates 522 nm
- Color Option 3 Red
- Max Audible Intensity (db at 1m) 94
- Environmental Rating IP67
- IO Link No
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) Yes
- Number of Colors / Segments 3
- Color Option 1 Green
- Audible Alarm Type Continuous
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 179.1
- Min Op. Temperature (°C) -20
- Indication Yes
- Product Size (mm) 50
- Color 2 - Wavelength/Color Temp/Coordinates 576 nm
- Input Type Bimodal (PNP/NPN)
- Feature: Hazardous Area No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Technology RGB Configurable
- Number of Input Pins/Conductors 5
- Max Input Response Time (ms) 250
- Feature: Audible Yes
- PFM Input Yes
- Quick Disconnect Type M12 (Euro)
- Supply Voltage 10-30 V dc
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Max Op. Temperature (°C) 50
- Power DC
- Color Option 2 Yellow
- Lumens Color 3 9.8
- Min Audible Intensity (db at 1m) 74
- Primary Window Material Polycarbonate Diffused
- Feature: Quick Disconnect Yes
- Multi-Color Device Simultaneous Colors On
- Indication Intensity High Brightness & Daylight Visible
- Wireless No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL50PBL1ALSQ Description

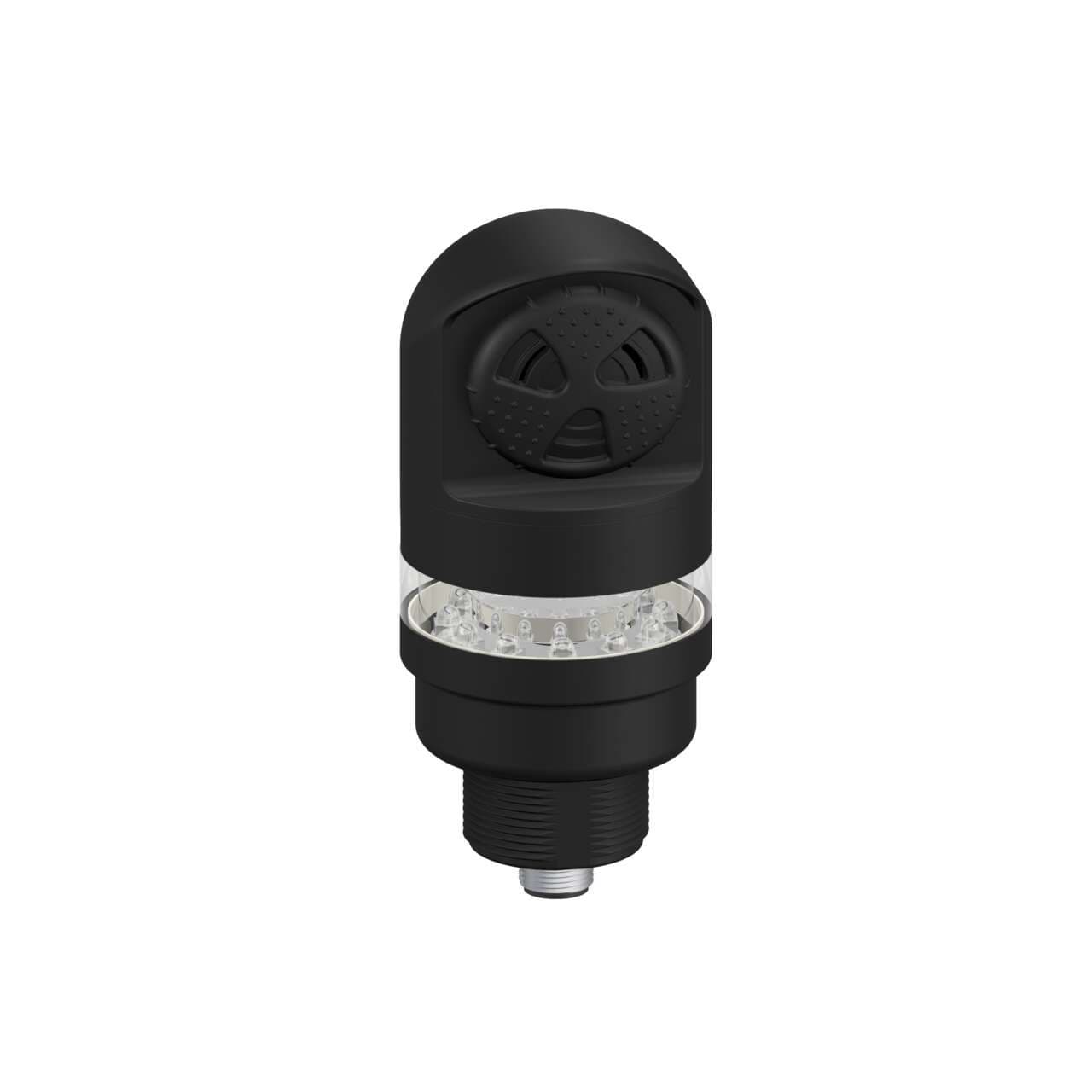

Banner Engineering TL50PBL1ALSQ is a beacon from the Beacon series designed with continuous loud sound 1-tier 14-color multicolor LED illumination. This sealed audible beacon programmable light features polycarbonate (PC) windows and segments with an ABS base and covers. It has a diameter of 50mm / 2" and comes pre-equipped with a 5-pin M12 Euro-style QD connector. The housing color is black, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). It offers surface / base pole M30 thread mounting mode and can operate in ambient air temperatures ranging from -20°C to +50°C. This product is rated with a degree of protection IP67 NEMA 13 UL type 13, has a cylindrical shape, and a current consumption of 220mA. It includes 1 x digital input (10-30Vdc; PNP/NPN) for color control and 1 x digital input (10-30Vdc; PNP/NPN) for alarm input.
Related documents TL50PBL1ALSQ Specs
