TL50P6CQ Banner Signal Towers
Part#:TL50P6CQ
Manufacturer:Banner
Alt. Part#:806721
Product Lifecycle:Active
Get a quick Quote!
TL50 Pro Tower Light, Standard Gray Housing: 6 Segment; Voltage: 10-30 V dc; Environ. Rating: IP67; Colors: Multicolor; 8-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL50P6CQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight412.76872 g
- Country Of OriginMX
- PFM Input Yes
- Power Source DC
- Color 1 - Wavelength/Color Temp/Coordinates 599 nm
- Color 3 - Wavelength/Color Temp/Coordinates 466 nm
- Lumens Color 6 7.2
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Indication Yes
- Color Option 1 Orange
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Quick Disconnect Type M12 (Euro)
- Color Option 4 Green
- Number of Input Pins/Conductors 8
- Power DC
- Number of Tower Light Segments 6
- Lumens Color 2 24.8
- Color 5 - Wavelength/Color Temp/Coordinates 576 nm
- Environmental Rating IP67
- Feature: Hazardous Area No
- Mounting Thread M30 x 1.5
- Connection Integral QD
- Color Option 5 Yellow
- Max Current Color (mA) 220
- Feature: Audible No
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- IO Link No
- Housing Style Base Mount - Tower
- Color Option 2 White
- Lumens Color 3 3.4
- Input Type Bimodal (PNP/NPN)
- NEMA Type and UL Type Rating NEMA and UL 13
- Feature: Quick Disconnect Yes
- Primary Housing Material ABS
- Product Size (mm) 50
- Color 2 - Wavelength/Color Temp/Coordinates 5700K
- Color Option 6 Red
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 292.0
- Multi-Color Device Simultaneous Colors On
- Number of Colors / Segments 6
- Lumens Color 1 11.3
- Lumens Color 4 17.5
- Color 6 - Wavelength/Color Temp/Coordinates 620 nm
- Min Op. Temperature (°C) -40
- Wireless No
- Color Technology RGB Configurable
- Color Option 3 Blue
- Lumens Color 5 23.8
- Supply Voltage 10-30 V dc
- Primary Window Material Polycarbonate Diffused
- Color 4 - Wavelength/Color Temp/Coordinates 522 nm
- Primary Housing Color Gray
- Max Input Response Time (ms) 250
- Pro-Editor Compatible (Discrete) Yes
- Feature: Chemical Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL50P6CQ Description

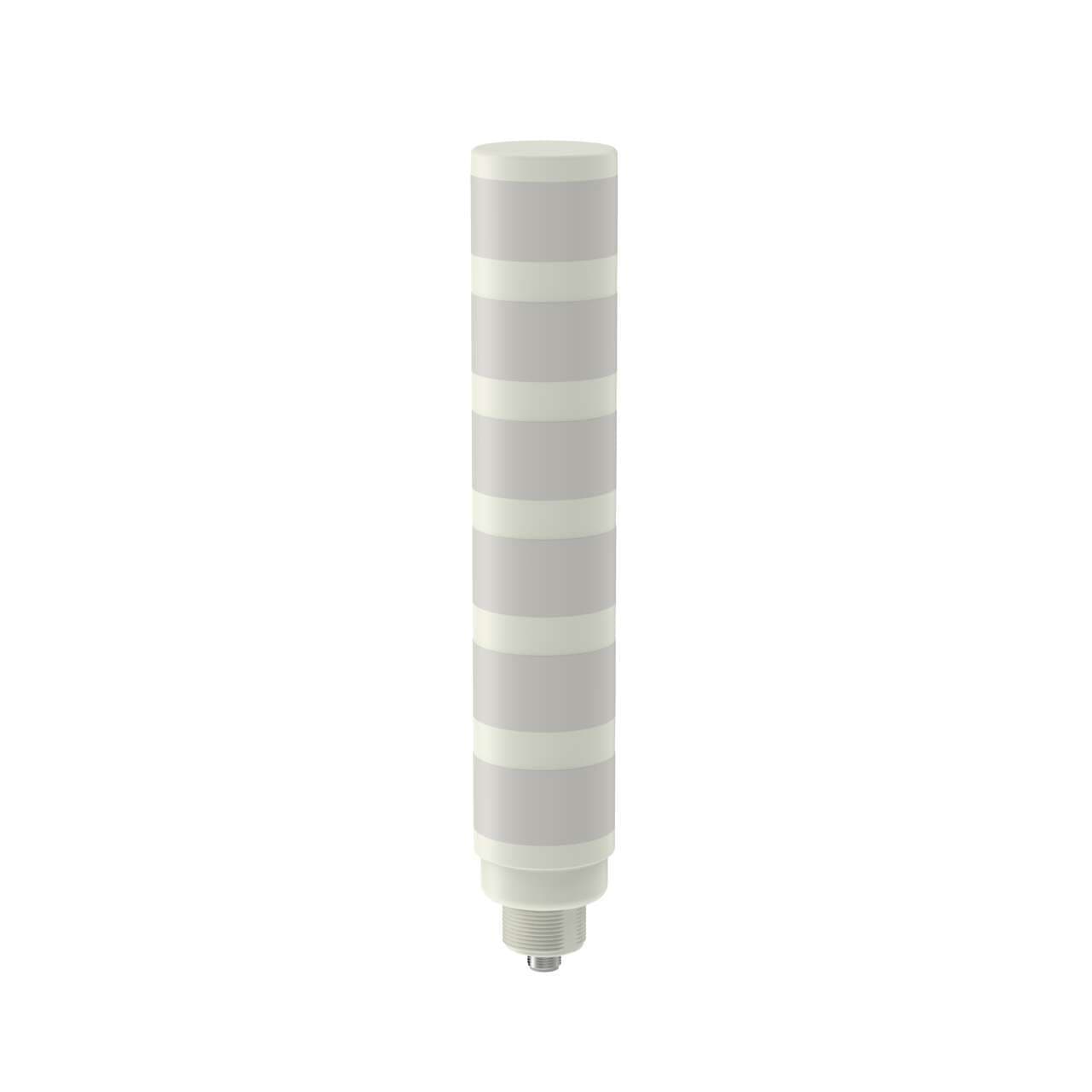

Banner Engineering TL50P6CQ is a tower light from the Standard series, featuring a monolithic design with 6-tiers and 14-color multicolor LED illumination. This programmable tower or stack light is constructed with polycarbonate (PC) windows and segments, and an ABS base and covers. It has a 50mm / 2" diameter and is pre-equipped with an 8-pin M12 Euro-style QD connector for connectivity. The housing is gray, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). Designed for surface or base pole mounting with an M30 thread, it can operate in ambient air temperatures ranging from -40°C to +50°C. The TL50P6CQ offers a degree of protection rated at IP67, NEMA 13, UL type 13, ensuring its durability in various environments. Its cylindrical shape is complemented by a current consumption of 220mA and it includes 6 x digital inputs (10-30Vdc; PNP/NPN) for color control.
Related documents TL50P6CQ Specs
