TL50P5AQ Banner Signal Towers
Part#:TL50P5AQ
Manufacturer:Banner
Alt. Part#:806699
Product Lifecycle:Active
In-stock parts: 1
Jun 19, 2025
TL50 Pro Tower Light with Audible, Standard Black Housing: 5 Lighted Segments; Voltage: 10-30 V dc; Environ. Rating: IP50; Colors: Multicolor; 8-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL50P5AQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight408.2328 g
- Country Of OriginMX
- Power DC
- Color Technology RGB Configurable
- Color 2 - Wavelength/Color Temp/Coordinates 466 nm
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 282.1
- Number of Input Pins/Conductors 8
- Feature: Chemical Resistant No
- Input Type Bimodal (PNP/NPN)
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- IO Link No
- Mounting Thread M30 x 1.5
- Product Size (mm) 50
- Color 3 - Wavelength/Color Temp/Coordinates 522 nm
- Supply Voltage 10-30 V dc
- Max Current - Audible Alarm (mA) 25
- Multi-Color Device Simultaneous Colors On
- Primary Housing Material ABS
- PFM Input Yes
- Connection Integral QD
- Number of Tower Light Segments 6
- Housing Style Base Mount - Tower
- Lumens Color 1 24.8
- Color 4 - Wavelength/Color Temp/Coordinates 576 nm
- NEMA Type and UL Type Rating NEMA and UL 13
- Primary Window Material Polycarbonate Diffused
- Indication Yes
- Color Option 2 Blue
- Lumens Color 4 23.8
- Audible Alarm Type Continuous
- Min Op. Temperature (°C) -20
- Pro-Editor Compatible (Discrete) Yes
- Power Source DC
- Color Option 1 White
- Color Option 3 Green
- Max Current Color (mA) 220
- Environmental Rating IP50
- Feature: Quick Disconnect Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Quick Disconnect Type M12 (Euro)
- Lumens Color 3 17.5
- Color 5 - Wavelength/Color Temp/Coordinates 620 nm
- Max Input Response Time (ms) 250
- Feature: Audible Yes
- Lumens Color 2 3.4
- Lumens Color 5 7.2
- Audible Operating Frequency (kHz) 2.7
- Feature: Hazardous Area No
- Color Option 4 Yellow
- Max Audible Intensity (db at 1m) 92
- Max Op. Temperature (°C) 50
- Modbus RTU No
- Number of Colors / Segments 5
- Color Option 5 Red
- Color 1 - Wavelength/Color Temp/Coordinates 5700K
- Min Audible Intensity (db at 1m) 62
- Primary Housing Color Black
- Wireless No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL50P5AQ Description

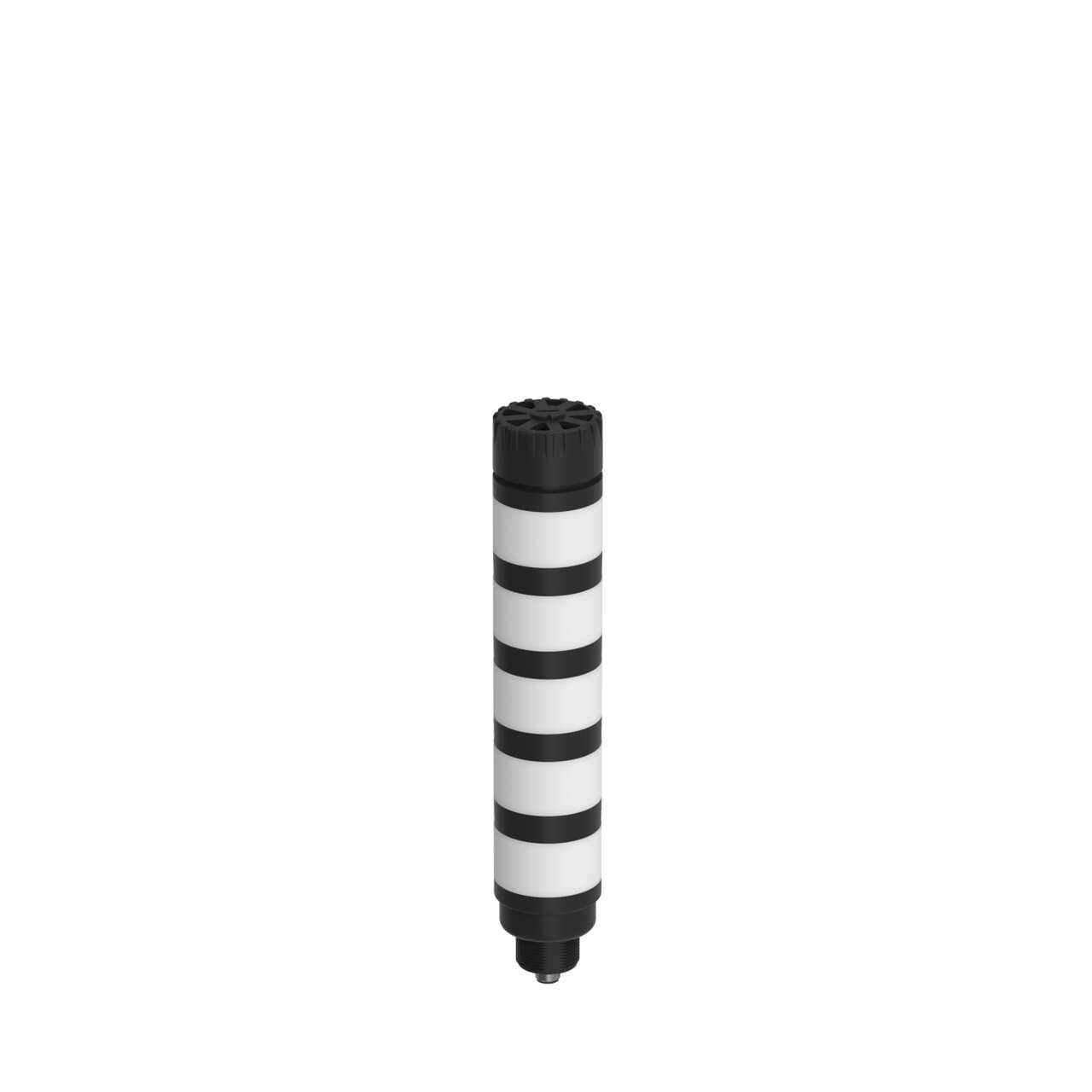

Banner Engineering TL50P5AQ is a tower light from the Standard series, featuring a monolithic design with continuous sound and 5-tiers of 14-color multicolor LED illumination. This audible programmable tower/stack light is constructed with polycarbonate (PC) windows and segments, and an ABS base and covers. It has a 50mm / 2" diameter and is pre-equipped with an 8-pin M12 Euro-style QD connector for connectivity. The housing is black, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). Designed for surface or base pole mounting with an M30 thread, it can operate in ambient air temperatures ranging from -20°C to +50°C. The TL50P5AQ offers a degree of protection rated at IP50 NEMA 13 UL type 13, has a cylindrical shape, and consumes 220mA of current. It includes 5 x digital inputs (10-30Vdc; PNP/NPN) for color control and 1 x digital input (10-30Vdc; PNP/NPN) for alarm input.
Related documents TL50P5AQ Specs
