TL50P4AOSIQ Banner Signal Towers
Part#:TL50P4AOSIQ
Manufacturer:Banner
Alt. Part#:808227
Product Lifecycle:Active
In-stock parts: 5
Jun 19, 2025
TL50 Pro Tower Light with Sealed Omnidirectional Audible w/ Intensity Adjust Indicator, Standard Black Housing: 4 Lighted Segments; Voltage: 10-30 V dc; Environ. Rating: IP67; Colors: Multicolor; 8-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL50P4AOSIQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight349.26584 g
- Country Of OriginMX
- Connection Integral QD
- Lumens Color 3 23.8
- Audible Alarm Type Adjustable Continuous
- Max Op. Temperature (°C) 50
- IO Link No
- Housing Style Base Mount - Tower
- Color 3 - Wavelength/Color Temp/Coordinates 576 nm
- Max Current - Audible Alarm (mA) 45
- Primary Window Material Polycarbonate Diffused
- Wireless No
- Power DC
- Quick Disconnect Type M12 (Euro)
- Color 2 - Wavelength/Color Temp/Coordinates 522 nm
- Input Type Bimodal (PNP/NPN)
- Primary Housing Color Black
- PFM Input Yes
- Color Technology RGB Configurable
- Lumens Color 2 17.5
- Feature: Audible Yes
- Power Source DC
- Color 1 - Wavelength/Color Temp/Coordinates 466 nm
- Color 4 - Wavelength/Color Temp/Coordinates 620 nm
- Environmental Rating IP67
- Mounting Thread M30 x 1.5
- Lumens Color 1 3.4
- Lumens Color 4 7.2
- Audible Operating Frequency (kHz) 2.1
- Min Op. Temperature (°C) -20
- Pro-Editor Compatible (Discrete) Yes
- Color Option 3 Yellow
- Max Current Color (mA) 220
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 264.5
- Feature: Hazardous Area No
- Primary Housing Material ABS
- Product Size (mm) 50
- Feature: Quick Disconnect Yes
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Color Option 1 Blue
- Number of Input Pins/Conductors 8
- Max Input Response Time (ms) 250
- Multi-Color Device Simultaneous Colors On
- Max Audible Intensity (db at 1m) 95
- NEMA Type and UL Type Rating NEMA and UL 13
- Modbus RTU No
- Cable Length (m) 2
- Number of Colors / Segments 4
- Number of Tower Light Segments 5
- Color Option 4 Red
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Feature: Chemical Resistant No
- Indication Yes
- Color Option 2 Green
- Supply Voltage 10-30 V dc
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL50P4AOSIQ Description

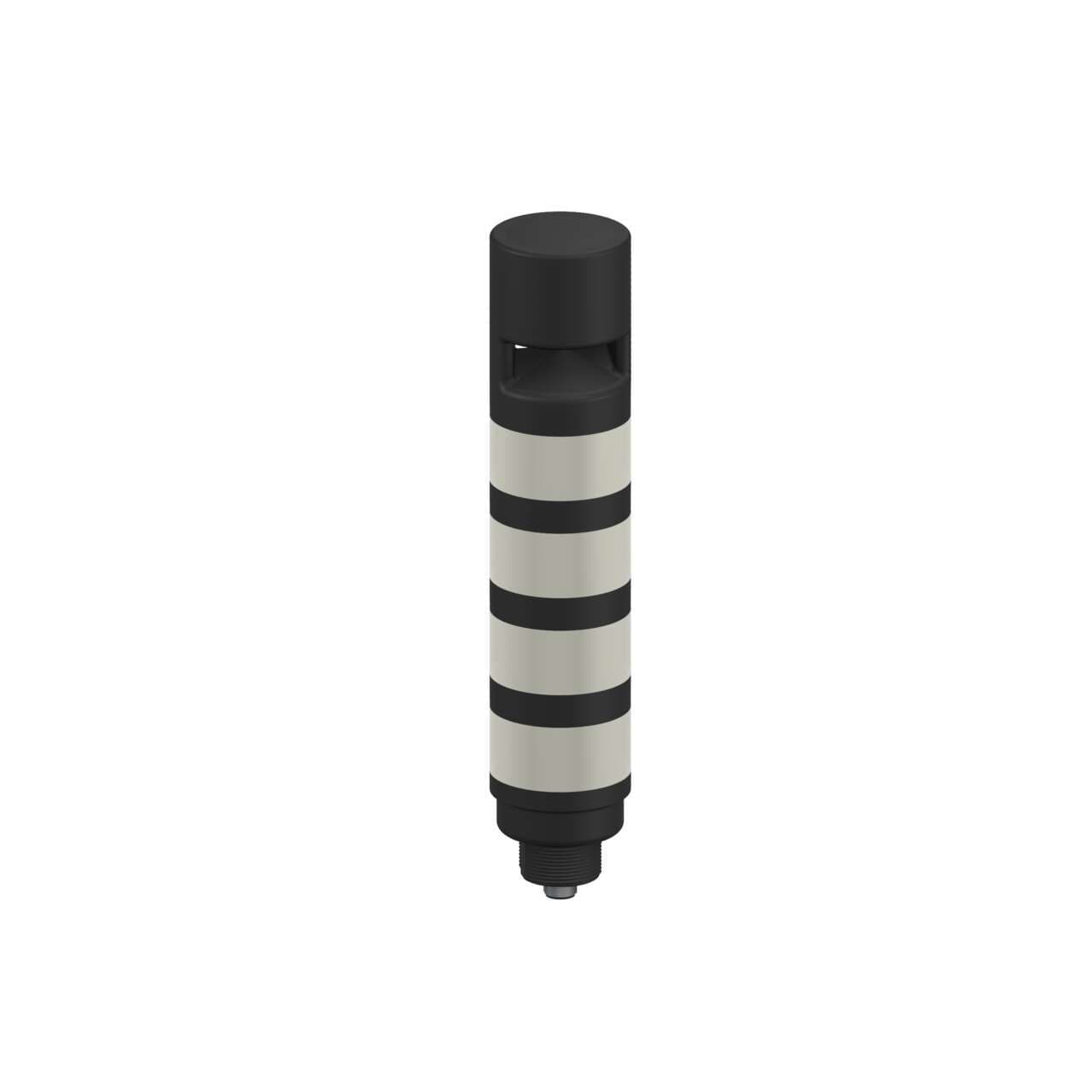

Banner Engineering TL50P4AOSIQ is a tower light from the Standard series, featuring a monolithic design with continuous sound that has adjustable intensity. This 4-tier tower light offers 14-color multicolor LED illumination, making it versatile for various signaling applications. It is constructed with polycarbonate (PC) windows and segments, and an ABS base and covers, ensuring durability. The tower light has a diameter of 50mm / 2 inches and comes pre-equipped with an 8-pin M12 Euro-style QD connector for easy connection. The housing is black, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). It can be mounted on a surface or base pole with an M30 thread. Designed for operation in ambient air temperatures ranging from -20°C to +50°C, it offers a high degree of protection with an IP67, NEMA 13, UL type 13 rating. The cylindrical shape contributes to its sleek appearance. It has a current consumption of 220mA and features 4 x digital inputs (10-30Vdc; PNP/NPN) for color control and 1 x digital input (10-30Vdc; PNP/NPN) for alarm input.
Related documents TL50P4AOSIQ Specs
