TL50P2ALSQ Banner Signal Towers
Part#:TL50P2ALSQ
Manufacturer:Banner
Alt. Part#:806707
Product Lifecycle:Active
Get a quick Quote!

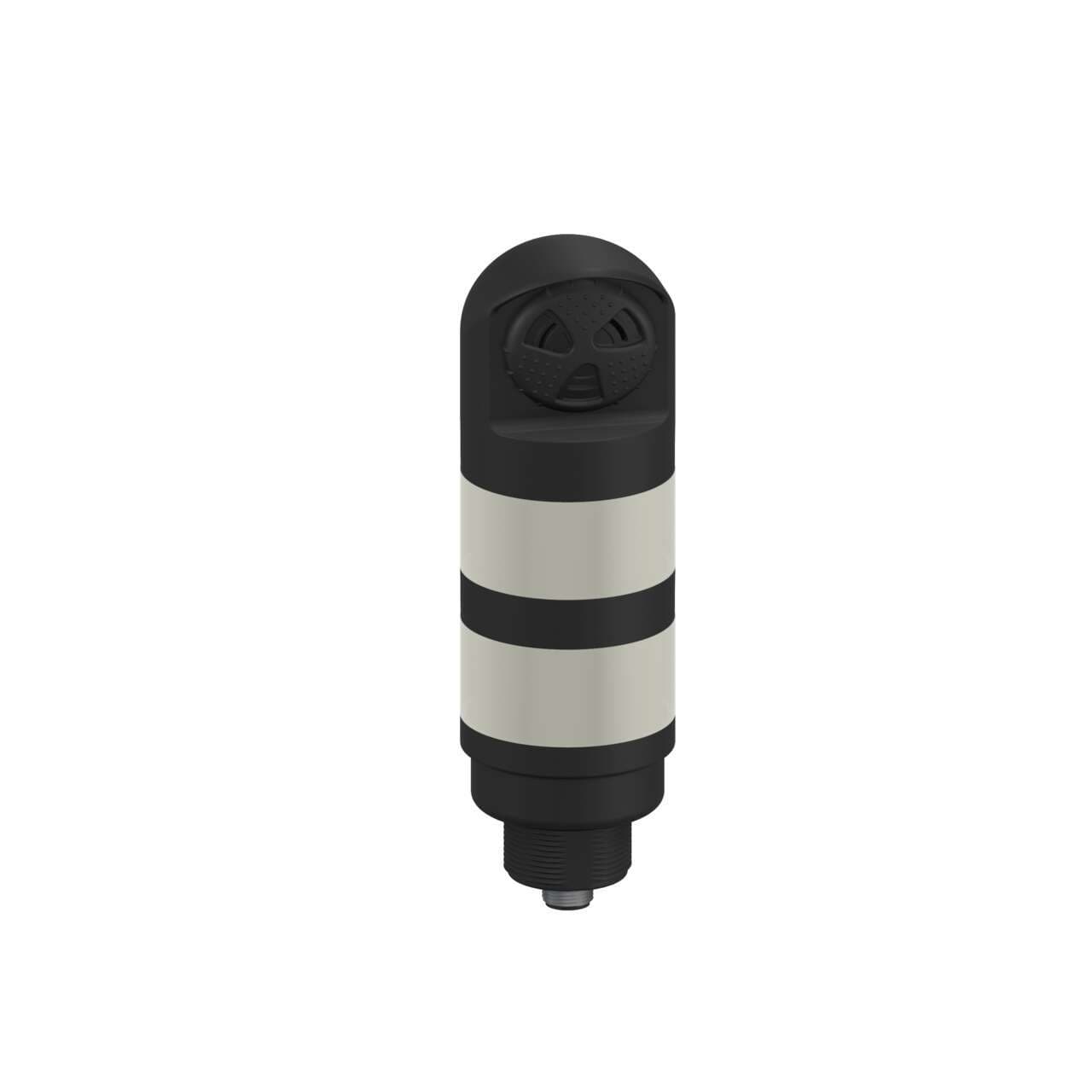

TL50 Pro Tower Light with Sealed Loud Audible, Standard Black Housing: 2 Lighted Segments; Voltage: 10-30 V dc; Environ. Rating: IP67; Colors: Multicolor; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL50P2ALSQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight254.01152 g
- Country Of OriginMX
- Number of Colors / Segments 2
- Connection Integral QD
- Primary Housing Color Black
- PFM Input Yes
- Housing Style Base Mount - Tower
- Color 1 - Wavelength/Color Temp/Coordinates 522 nm
- Max Current Color (mA) 220
- Max Current - Audible Alarm (mA) 35
- Min Op. Temperature (°C) -20
- Feature: Hazardous Area No
- Modbus RTU No
- Mounting Thread M30 x 1.5
- Indication Yes
- Lumens Color 2 7.2
- Audible Alarm Type Continuous
- Environmental Rating IP67
- Primary Window Material Polycarbonate Diffused
- Wireless No
- Power Source DC
- Quick Disconnect Type M12 (Euro)
- Color 2 - Wavelength/Color Temp/Coordinates 620 nm
- Number of Input Pins/Conductors 5
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 183.1
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Feature: Audible Yes
- Pro-Editor Compatible (Discrete) Yes
- Power DC
- Color Technology RGB Configurable
- Color Option 2 Red
- Input Type Bimodal (PNP/NPN)
- Max Op. Temperature (°C) 50
- Feature: Chemical Resistant No
- Feature: Quick Disconnect Yes
- Primary Housing Material ABS
- Product Size (mm) 50
- Color Option 1 Green
- Supply Voltage 10-30 V dc
- Min Audible Intensity (db at 1m) 74
- Audible Operating Frequency (kHz) 2.9
- NEMA Type and UL Type Rating NEMA and UL 13
- IO Link No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Number of Tower Light Segments 3
- Lumens Color 1 17.5
- Max Audible Intensity (db at 1m) 94
- Max Input Response Time (ms) 250
- Multi-Color Device Simultaneous Colors On
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL50P2ALSQ Description
Banner Engineering TL50P2ALSQ is a tower light from the Standard series, featuring a monolithic design with continuous loud sound and 2-tiers of 14-color multicolor LED illumination. This sealed audible programmable tower/stack light is constructed with polycarbonate (PC) windows and segments, and an ABS base and covers. It has a 50mm / 2" diameter and is pre-equipped with a 5-pin M12 Euro-style QD connector for connectivity. The housing is black, and it operates on a supply voltage of 10Vdc-30Vdc (12Vdc-24Vdc nom.). Designed for surface or base pole mounting with an M30 thread, it can operate in ambient air temperatures ranging from -20°C to +50°C. This model offers a degree of protection rated at IP67, NEMA 13, UL type 13, and has a cylindrical shape. It has a current consumption of 220mA and includes 2 x digital inputs (10-30Vdc; PNP/NPN) for color control and 1 x digital input (10-30Vdc; PNP/NPN) for alarm input.
