TL50C5KQ Banner Signal Towers
Part#:TL50C5KQ
Manufacturer:Banner
Alt. Part#:804926
Product Lifecycle:Active
Get a quick Quote!
TL50 Pro Tower Light with IO-Link, Compact Black Housing: 5-Segment; Voltage: 18-30 V dc; Environmental Rating: IP67; Colors: Multicolor; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL50C5KQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight254.01152 g
- Country Of OriginMX
- Power Source DC
- Max Input Response Time (ms) 20
- Feature: Chemical Resistant No
- Indication Yes
- Quick Disconnect Type M12 (Euro)
- Environmental Rating IP67
- Power DC
- Animation Option 1 Programmable
- Number of Input Pins/Conductors 4
- Max Op. Temperature (°C) 50
- Number of Colors / Segments 5
- Max Current Color (mA) 100
- Input Type Communication Protocol
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Product Size (mm) 50
- Color Technology RGB IO-Link
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 176.8
- Feature: Audible No
- Primary Housing Material ABS
- Connection Integral QD
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Feature: Hazardous Area No
- Color Input Control Communication Protocol
- Dimming Option Programmable
- Supply Voltage 18-30 V dc
- Primary Window Material Polycarbonate Diffused
- Wireless No
- Housing Style Base Mount - Tower
- Color Option 1 RGB
- NEMA Type and UL Type Rating NEMA and UL 13
- Feature: Quick Disconnect Yes
- Mounting Thread M30 x 1.5
- Number of Tower Light Segments 5
- Min Op. Temperature (°C) -40
- IO Link Yes
- Multi-Color Device Simultaneous Colors On
- Modbus RTU No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL50C5KQ Description

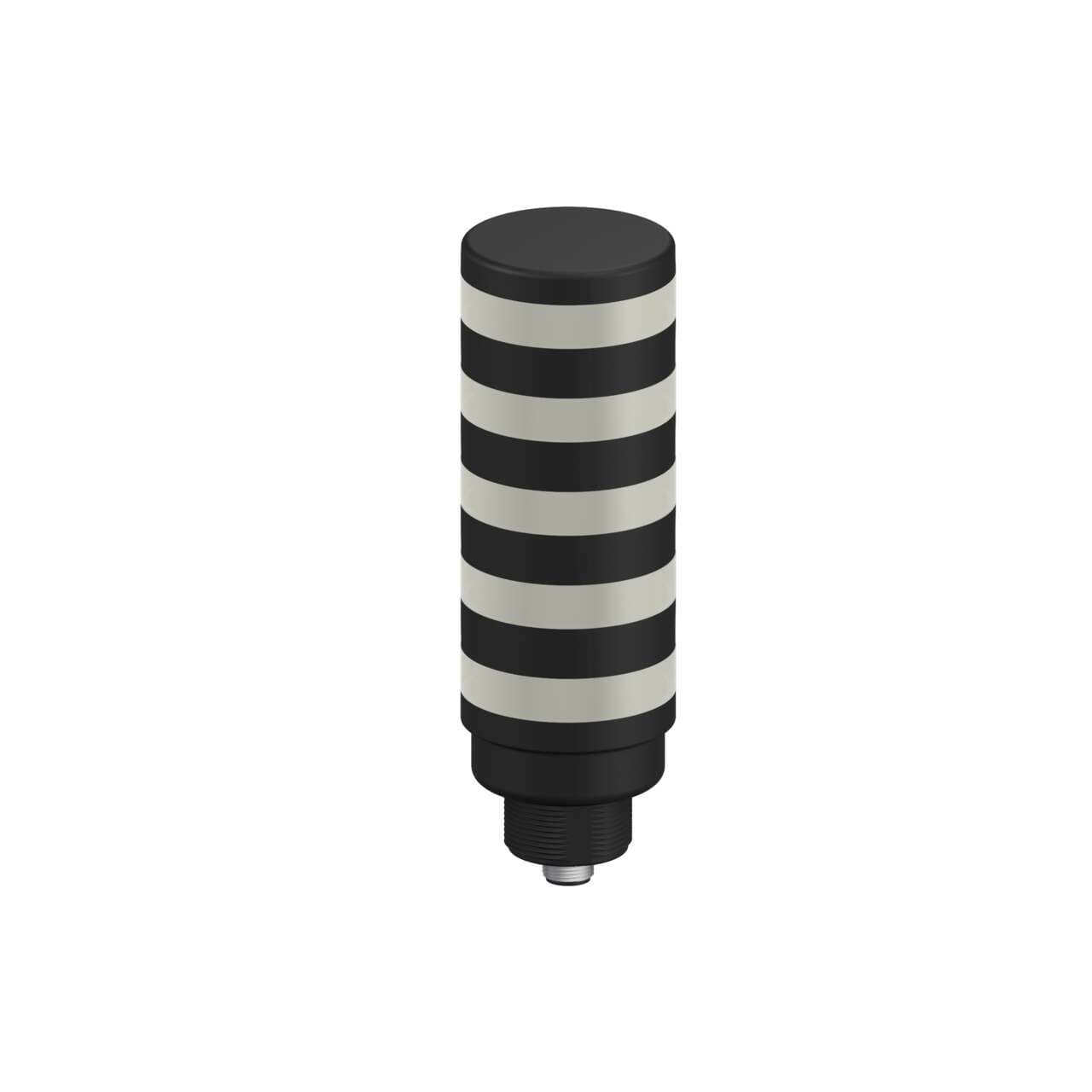

Banner Engineering TL50C5KQ is a tower light from the Compact series, featuring a monolithic design that is IO-Link compatible with 5-tiers of 14-color multicolor LED illumination. This programmable compact tower or stack light is constructed with polycarbonate (PC) windows and segments, and an ABS base and covers. It has a 50mm / 2" diameter and is pre-equipped with a 4-pin M12 Euro-style QD connector. The housing is black, and it operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.). The TL50C5KQ can be mounted via surface or base pole with an M30 thread and is designed to operate in ambient air temperatures ranging from -40°C to +50°C. It offers a degree of protection of IP67, NEMA 13, UL type 13, and has a cylindrical shape. The current consumption of the device is 100mA.
Related documents TL50C5KQ Specs
