TL504AOSIKQ Banner Signal Towers
Part#:TL504AOSIKQ
Manufacturer:Banner
Alt. Part#:808337
Product Lifecycle:Active
Get a quick Quote!
TL50 Pro Tower Light with IO-Link Sealed Omnidirectional Audible w/ Intensity Adjust, Standard Black Housing: 4 Lighted Segments; Voltage: 18-30 V dc; Environmental Rating: IP67; Colors: Multicolor; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL504AOSIKQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight326.58624 g
- Country Of OriginMX
- Color Input Control Communication Protocol
- Supply Voltage 18-30 V dc
- Primary Housing Color Black
- Number of Colors / Segments 4
- Max Current Color (mA) 100
- Environmental Rating IP67
- IO Link Yes
- Dimming Option Programmable
- Max Current - Audible Alarm (mA) 45
- Feature: Chemical Resistant No
- Product Size (mm) 50
- Number of Input Pins/Conductors 4
- Max Op. Temperature (°C) 50
- Indication Yes
- Number of Tower Light Segments 5
- Audible Alarm Type Adjustable Continuous
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Wireless No
- Housing Style Base Mount - Tower
- Connection Integral QD
- Audible Operating Frequency (kHz) 2.1
- Primary Window Material Polycarbonate Diffused
- Power Source DC
- Color Technology RGB IO-Link
- Max Audible Intensity (db at 1m) 95
- NEMA Type and UL Type Rating NEMA and UL 13
- Multi-Color Device Simultaneous Colors On
- Power DC
- Animation Option 1 Programmable
- Max Input Response Time (ms) 20
- Feature: Hazardous Area No
- Primary Housing Material ABS
- Quick Disconnect Type M12 (Euro)
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 241.4
- Feature: Audible Yes
- Mounting Thread M30 x 1.5
- Color Option 1 RGB
- Input Type Communication Protocol
- Min Op. Temperature (°C) -20
- Modbus RTU No
- Pro-Editor Compatible (Discrete) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL504AOSIKQ Description

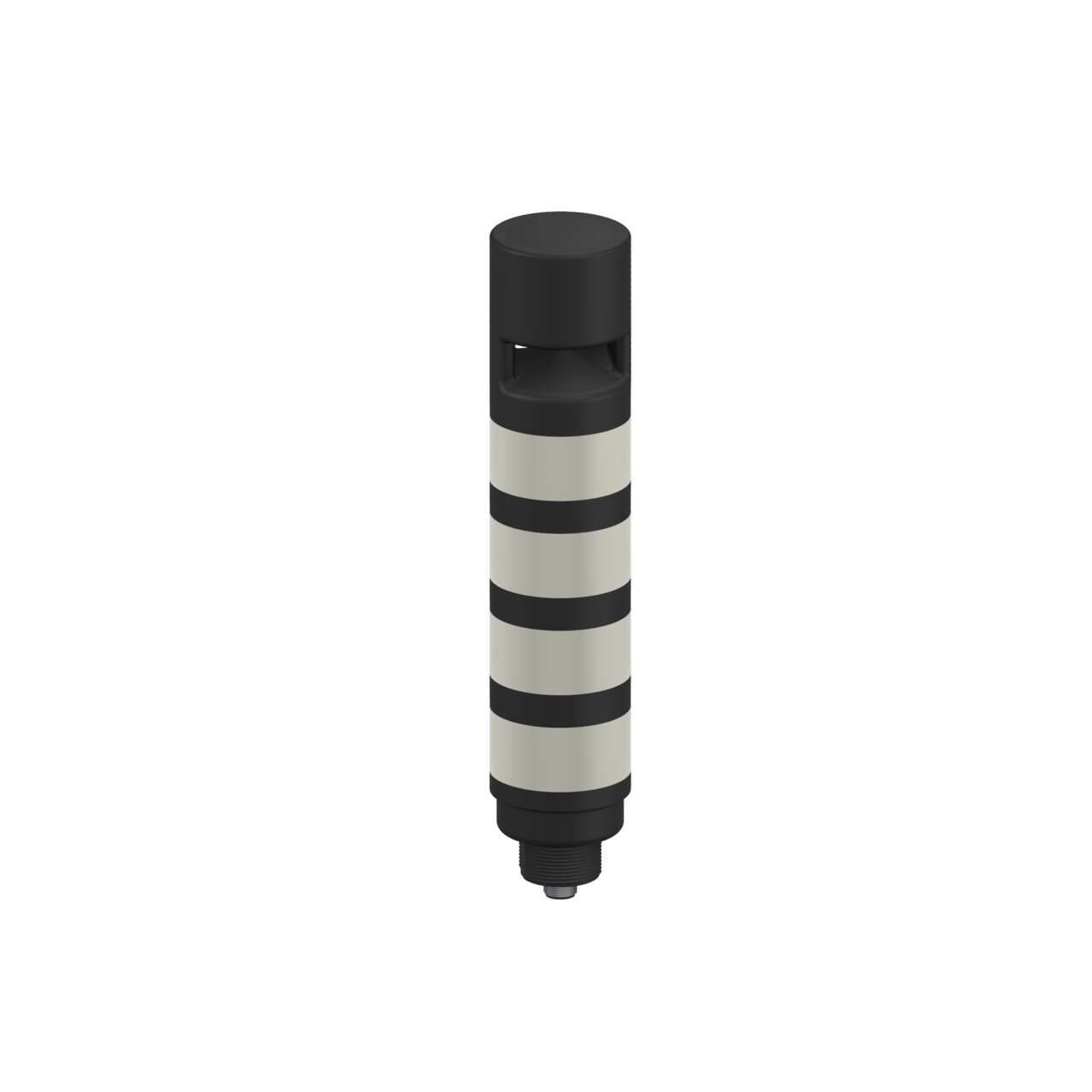

Banner Engineering TL504AOSIKQ is a tower light from the Standard series, featuring a monolithic design with continuous sound that has adjustable intensity and is IO-Link compatible. This 4-tier tower light offers 14-color multicolor LED illumination. It is constructed with polycarbonate (PC) windows and segments, and an ABS base and covers. The part has a 50mm / 2" diameter and comes pre-equipped with a 4-pin M12 Euro-style QD connector. The housing is black, and it operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.). It can be mounted via surface or base pole with an M30 thread. The TL504AOSIKQ is designed to operate in ambient air temperatures ranging from -20°C to +50°C and offers a degree of protection rated at IP67, NEMA 13, UL type 13, in a cylindrical shape.
Related documents TL504AOSIKQ Specs
1-year warranty
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of Banner
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
Banner Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Banner Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Banner, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
