TL504AOSIKCQ Banner Signal Towers
Part#:TL504AOSIKCQ
Manufacturer:Banner
Alt. Part#:806774
Product Lifecycle:Active
Get a quick Quote!

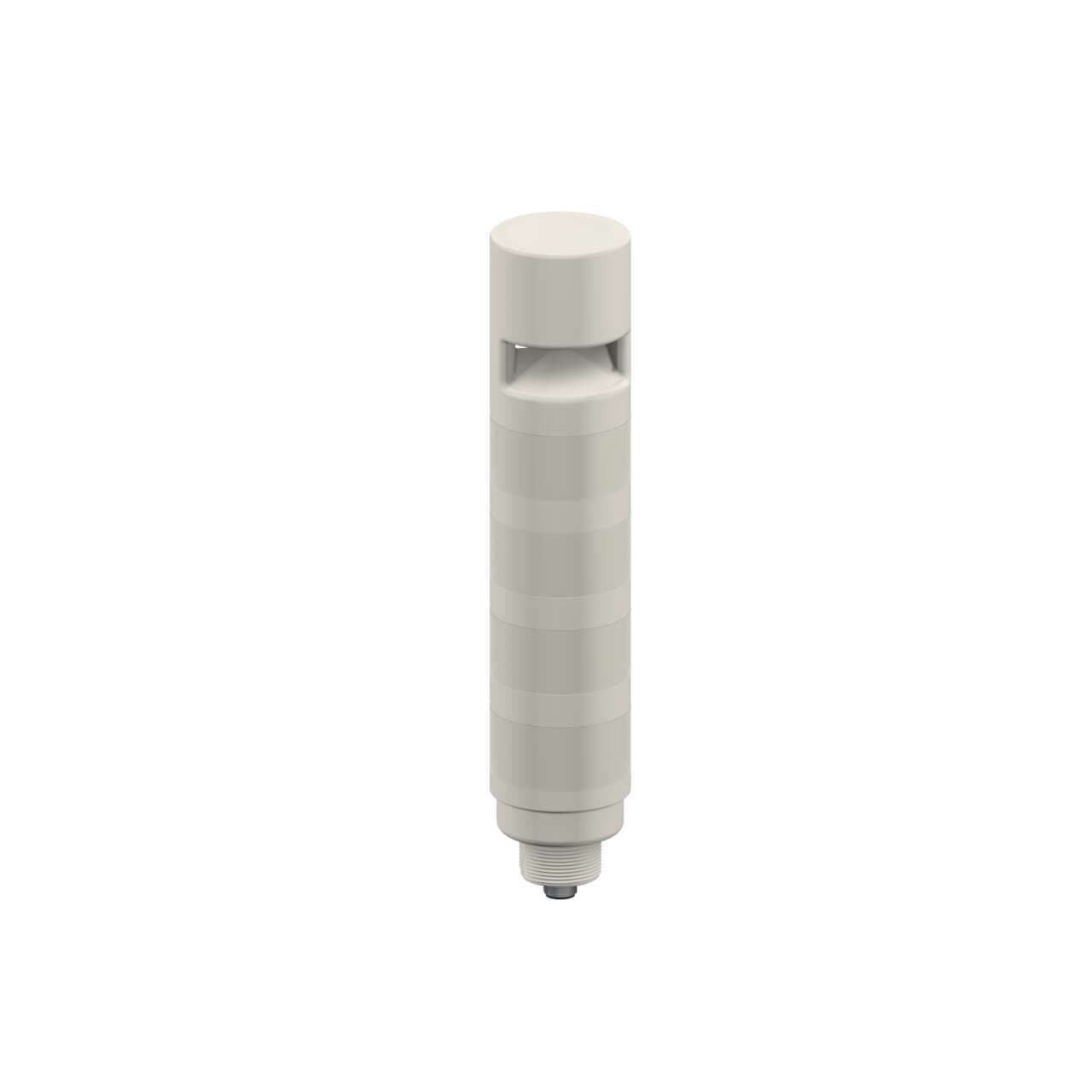

TL50 Pro Tower Light with IO-Link Sealed Omnidirectional Audible w/ Intensity Adjust, Gray Housing: 4 Lighted Segments; Voltage: 18-30 V dc; Environmental Rating: IP67; Colors: Multicolor; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL504AOSIKCQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight326.58624 g
- Country Of OriginUS
- Product Size (mm) 50
- Housing Style Base Mount - Tower
- Dimming Option Programmable
- Max Current - Audible Alarm (mA) 45
- Feature: Hazardous Area No
- Primary Housing Material ABS
- Quick Disconnect Type M12 (Euro)
- Audible Alarm Type Adjustable Continuous
- Power Source DC
- Color Option 1 RGB
- Number of Colors / Segments 4
- Audible Operating Frequency (kHz) 2.1
- Indication Yes
- Supply Voltage 18-30 V dc
- Max Audible Intensity (db at 1m) 99
- Feature: Audible Yes
- Color Input Control Communication Protocol
- Connection Integral QD
- Max Op. Temperature (°C) 50
- Max Input Response Time (ms) 20
- Modbus RTU No
- Color Technology RGB IO-Link
- Max Current Color (mA) 100
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 241.4
- Wireless No
- Mounting Thread M30 x 1.5
- Number of Tower Light Segments 5
- Number of Input Pins/Conductors 4
- Environmental Rating IP67
- Feature: Quick Disconnect Yes
- Power DC
- Animation Option 1 Programmable
- Input Type Communication Protocol
- Min Op. Temperature (°C) -20
- Primary Housing Color Gray
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Pro-Editor Compatible (Discrete) No
- IO Link Yes
- Primary Window Material Polycarbonate Diffused
- Multi-Color Device Simultaneous Colors On
- NEMA Type and UL Type Rating NEMA and UL 13
- Feature: Chemical Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL504AOSIKCQ Description
Banner Engineering TL504AOSIKCQ is a tower light from the Standard series, featuring a monolithic design with continuous sound that has adjustable intensity and is IO-Link compatible. This 4-tier tower light offers 14-color multicolor LED illumination. It is designed with polycarbonate (PC) windows and segments, and an ABS base and covers, ensuring durability. The tower light has a 50mm / 2" diameter and comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy connection. The housing is gray, and it operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.). It can be mounted via surface or base pole with an M30 thread. Suitable for operation in ambient air temperatures ranging from -20°C to +50 °C, it boasts a degree of protection of IP67, NEMA 13, and UL type 13, making it suitable for a variety of industrial environments. The shape of the tower light is cylindrical.
Related documents TL504AOSIKCQ Specs
