TL503AOSIKQ Banner Signal Towers
Part#:TL503AOSIKQ
Manufacturer:Banner
Alt. Part#:805001
Product Lifecycle:Active
Get a quick Quote!

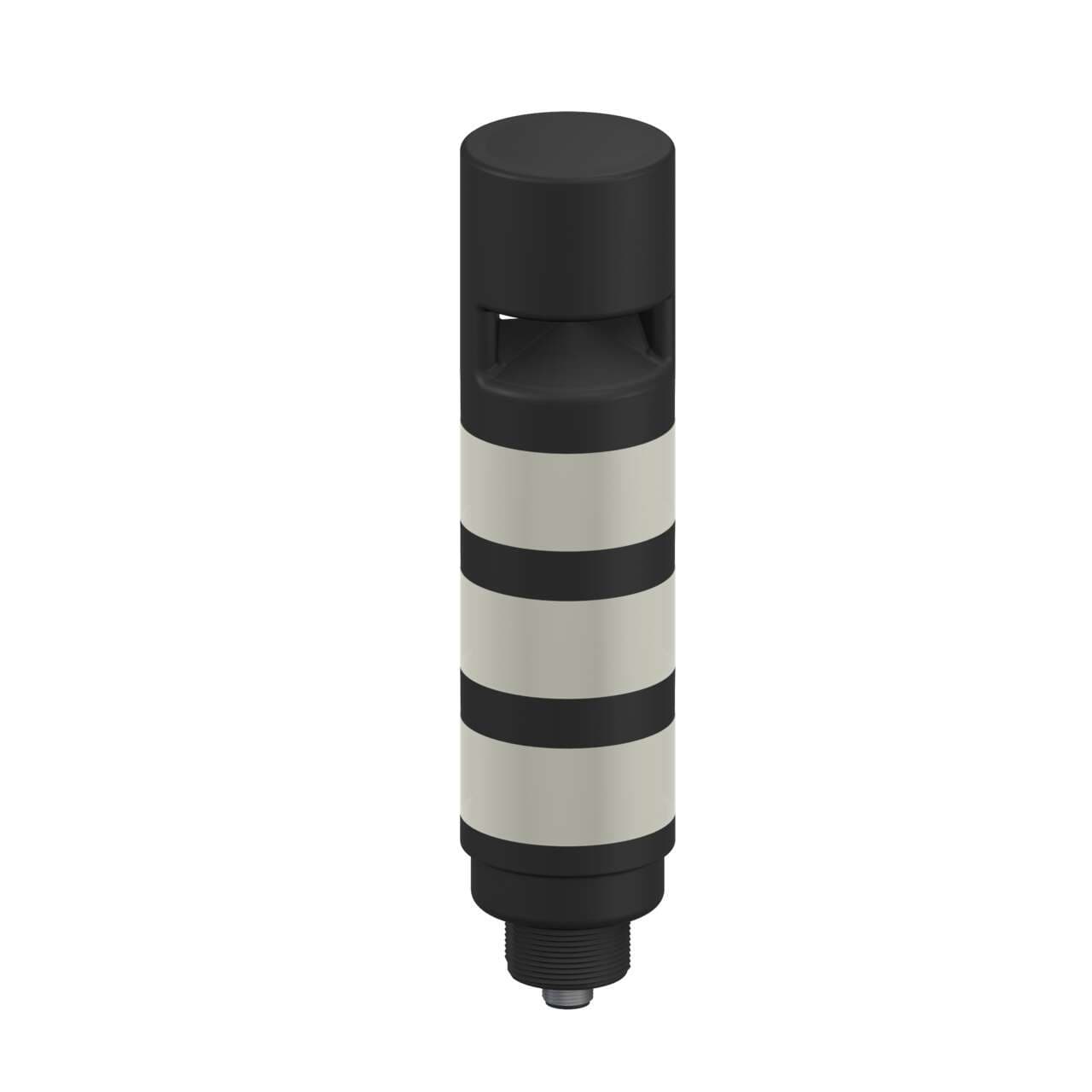

TL50 Pro Tower Light with IO-Link Sealed Omnidirectional Audible with Volume Adjust, Standard Black Housing: 3 Lighted Segments; Voltage: 18-30 V dc; Environmental Rating: IP67; Colors: Multicolor; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL503AOSIKQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight317.5144 g
- Country Of OriginMX
- Housing Style Base Mount - Tower
- Color Option 1 RGB
- Audible Alarm Type Adjustable Continuous
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Mounting Thread M30 x 1.5
- Power DC
- Primary Housing Material ABS
- Power Source DC
- Color Technology RGB IO-Link
- Indication Yes
- Max Op. Temperature (°C) 50
- Wireless No
- Min Op. Temperature (°C) -20
- Feature: Hazardous Area No
- Multi-Color Device Simultaneous Colors On
- Feature: Quick Disconnect Yes
- IO Link Yes
- Modbus RTU No
- Feature: Audible Yes
- Pro-Editor Compatible (Discrete) No
- Feature: Chemical Resistant No
- Color Input Control Communication Protocol
- Quick Disconnect Type M12 (Euro)
- Max Audible Intensity (db at 1m) 95
- Environmental Rating IP67
- Input Type Communication Protocol
- Max Input Response Time (ms) 20
- Number of Input Pins/Conductors 4
- NEMA Type and UL Type Rating NEMA and UL 13
- Animation Option 1 Programmable
- Number of Tower Light Segments 4
- Max Current Color (mA) 100
- Max Current - Audible Alarm (mA) 45
- Primary Housing Color Black
- Number of Colors / Segments 3
- Dimming Option Programmable
- Supply Voltage 18-30 V dc
- Audible Operating Frequency (kHz) 2.1
- Primary Window Material Polycarbonate Diffused
- Connection Integral QD
- Min Audible Intensity (db at 1m) 83
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 237.9
- Product Size (mm) 50
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL503AOSIKQ Description
Banner Engineering TL503AOSIKQ is a tower light from the Standard series, featuring a monolithic design with continuous sound whose intensity is adjustable and is IO-Link compatible. This 3-tier tower light offers 14-color multicolor LED illumination. It is designed with polycarbonate (PC) windows and segments, and an ABS base and covers, ensuring durability. The part has a 50mm / 2" diameter and comes pre-equipped with a 4-pin M12 Euro-style QD connector for easy connection. The housing is black, and it operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.). It can be mounted via surface or base pole with an M30 thread. The TL503AOSIKQ is designed to operate in ambient air temperatures ranging from -20°C to +50°C and offers a degree of protection rated at IP67, NEMA 13, UL type 13, making it suitable for various environments. Its cylindrical shape and a current consumption of 100mA complete its technical specifications.
