TL5010KQ Banner Signal Towers
Part#:TL5010KQ
Manufacturer:Banner
Alt. Part#:804915
Product Lifecycle:Active
Get a quick Quote!

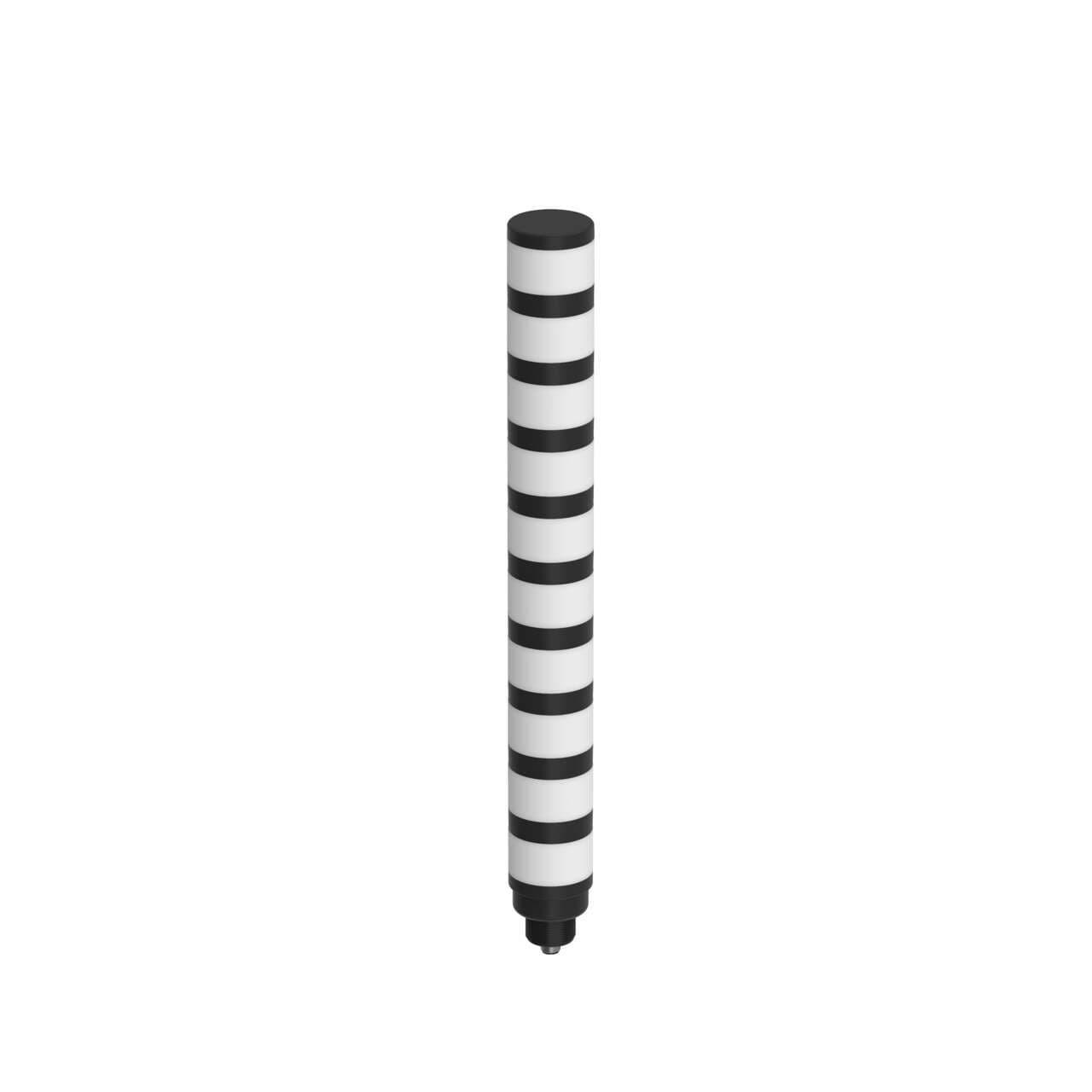

TL50 Pro Tower Light with IO-Link, Standard Black Housing: 10-Segment; Voltage: 18-30 V dc; Environmental Rating: IP67; Colors: Multicolor; 4-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Signal Towers that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the TL5010KQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight580.59776 g
- Country Of OriginMX
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 454.8
- Wireless No
- Modbus RTU No
- Input Type Communication Protocol
- Primary Window Material Polycarbonate Diffused
- NEMA Type and UL Type Rating NEMA and UL 13
- Feature: Audible No
- Max Op. Relative Humidity Non-Condensing (%) 95% @ 50°C
- Multi-Color Device Simultaneous Colors On
- IO Link Yes
- Min Op. Temperature (°C) -40
- Primary Housing Color Black
- Pro-Editor Compatible (Discrete) No
- Feature: Quick Disconnect Yes
- Feature: Hazardous Area No
- Feature: Chemical Resistant No
- Primary Housing Material ABS
- Product Size (mm) 50
- Environmental Rating IP67
- Max Op. Temperature (°C) 50
- Cable Length (m) 0.15
- Mounting Thread M30 x 1.5
- Number of Tower Light Segments 10
- Max Current Color (mA) 100
- Max Input Response Time (ms) 20
- Power Source DC
- Animation Option 1 Programmable
- Number of Input Pins/Conductors 4
- Power DC
- Color Option 1 RGB
- Number of Colors / Segments 10
- Dimming Option Programmable
- Supply Voltage 18-30 V dc
- Housing Style Base Mount - Tower
- Quick Disconnect Type M12 (Euro)
- Color Input Control Communication Protocol
- Connection Integral QD
- Indication Yes
- Color Technology RGB IO-Link
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
TL5010KQ Description
Banner Engineering TL5010KQ is a tower light from the Standard series, featuring a monolithic design that is IO-Link compatible with 10 tiers of 14-color multicolor LED illumination. This programmable tower or stack light is constructed with polycarbonate (PC) windows and segments, and an ABS base and covers. It has a 50mm / 2" diameter and is pre-equipped with a 4-pin M12 Euro-style QD connector for connectivity. The housing is black, and it operates on a supply voltage of 18Vdc-30Vdc (24Vdc nom.). Designed for surface or base pole mounting with an M30 thread, it can operate in ambient air temperatures ranging from -40°C to +50°C. The TL5010KQ offers a degree of protection rated at IP67, NEMA 13, UL type 13, and has a cylindrical shape. Its current consumption is 100mA.
Related documents TL5010KQ Specs
