SLLVE23-1820 Banner Safety Light Curtains
Part#:SLLVE23-1820
Manufacturer:Banner
Alt. Part#:804060
Product Lifecycle:Active
Get a quick Quote!
EZ-SCREEN LS BASIC, Emitter; Resolution: 23 mm; Range: 8 m (26 ft); Defined Area: 1820 mm (71.7 in); Housing: Black; Connection: Removable Disconnect (RD); Mounting Hardware Ordered Separately
About the manufacturer: Banner is one of the manufacturers that offers Safety Light Curtains that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the SLLVE23-1820 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight5034.8712 g
- Country Of OriginUS
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
SLLVE23-1820 Description

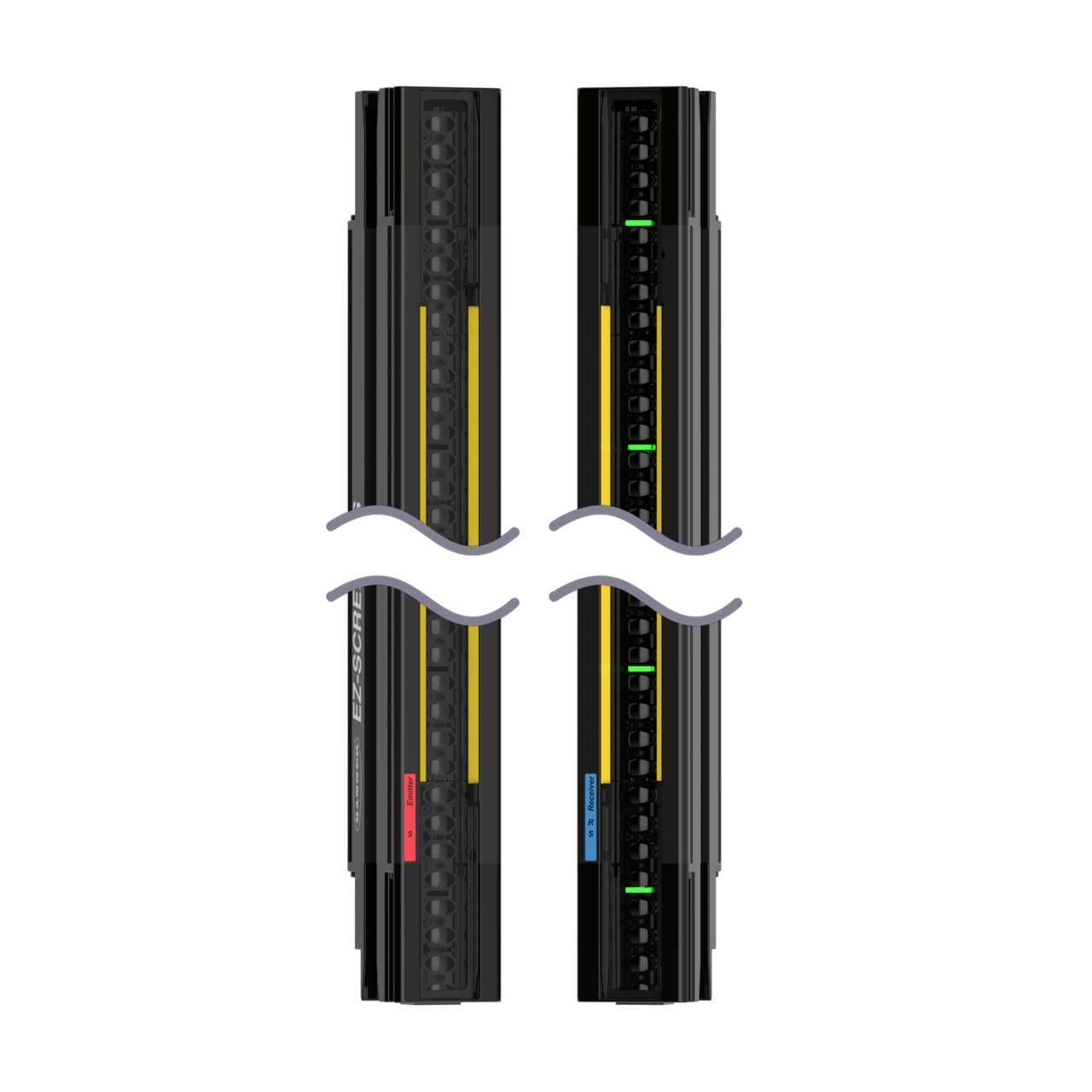

Banner Engineering SLLVE23-1820 is a safety light curtain from the LS Basic heavy-duty safety light curtains series designed for hand detection with a resolution of 23mm. This unit, featuring an aluminum housing, acrylic lens, and zinc end caps, offers a protective height of 1820mm and operates with a 24Vdc supply voltage. It is equipped with a wiring chamber connection for ease of installation. The safety light curtain operates within an ambient air temperature range of -20 to +55°C and is rated with a degree of protection of IP65 and IP67, ensuring durability in various environmental conditions. The device has a net width of 36mm, a height of 1821mm, and a depth of 45mm. It provides a sensing distance from 10cm to 8m and utilizes infrared light with a wavelength of 850nm. The SLLVE23-1820 features two digital outputs (24Vdc; 500mA; sourcing; redundant OSSD solid-state outputs) and one digital output for emitter fault (24Vdc; sourcing/PNP transistor; 70mA), alongside two digital inputs (10Vdc-30Vdc; 30mA) for position ID and scan code. Its response time is 26.9ms.
Related documents SLLVE23-1820 Specs
1-year warranty
Get a quick Quote!
Request a quote, and we will send you price and availability within minutes.
Select Qty:
Average response time: 11 minutes
By purchasing this item, you agree to the Terms & Conditions
Quotebeam is NOT an authorized distributor of Banner
Shipping and Delivery Worldwide
calculate costs and time
Secure Payment Processing
with money back guarantee
1 year warranty
on all parts
Responsive Customer Support
we're here to help!
Need more details?
Feel free to chat with us or check our FAQ
Banner Disclaimer:
The product is unused surplus. Quotebeam is not an authorized surplus dealer or affiliate for the Manufacturer of this product. Products may feature older date codes or be from an earlier series than what is currently available from the manufacturer or authorized dealers. Because Quotebeam is not an authorized distributor of this product, the Original Manufacturer’s warranty does not apply. While many Banner Controls products will have firmware already installed, Quotebeam makes no representation as to whether a Controls product will or will not have firmware and, if it does have firmware, whether the firmware is the revision level that you need for your application. Quotebeam also makes no representations as to your ability or right to download or otherwise obtain firmware for the product from Banner, its distributors, or any other source. Quotebeam also makes no representations as to your right to install any such firmware on the product. Quotebeam will not obtain or supply firmware on your behalf. It is your obligation to comply with the terms of any End-User License Agreement or similar document related to obtaining or installing firmware.
