S15WLWQ Banner Light Bars

Banner S15WLWQ S15WL Series: 1-Color In-Line Illuminator; Voltage: 24 V dc; Housing: PVC; IP67; Colors: Cool White; Male-Female 4-pin M12 Integral QD
Banner

Part#:S15WLWQ

Manufacturer:Banner

Alt. Part#:809919

Product Lifecycle:Active

Get a quick Quote!

S15WL Series: 1-Color In-Line Illuminator; Voltage: 24 V dc; Housing: PVC; IP67; Colors: Cool White; Male-Female 4-pin M12 Integral QD

About the manufacturer: Banner is one of the manufacturers that offers Light Bars that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the S15WLWQ Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight22.6796 g
  • Country Of OriginMX
  • Color Input Control
    Individual (One wire/color, same number of colors as input wires)
  • Connection
    Integral QD
  • Min Op. Temperature (°C)
    -40
  • Modbus RTU
    No
  • PFM Input
    Yes
  • Animation Option 1
    Solid On
  • Number of Input Pins/Conductors
    4
  • Feature: Chemical Resistant
    No
  • Power Source
    DC
  • Color Technology
    Standard LED
  • Dimming Option
    PWM
  • Storage Temp (°C)
    -40 to 70
  • USB
    No
  • Mounting Thread
    No Thread
  • Environmental Rating
    IP65; IP67; IP68
  • Multi-Color Device
    Single Color On
  • Primary Housing Material
    PVC
  • Lumens Color 1
    80
  • Supply Voltage
    24 V DC
  • Max Op. Temperature (°C)
    50
  • Wireless
    No
  • Illumination
    Yes
  • Quick Disconnect Type
    M12 (Euro)
  • Physical Dimensions (LxWxH or DxH mm)
    15.0 X 58.0
  • IO Link
    No
  • Product Size (mm)
    15
  • Power
    DC
  • Max Current Color (mA)
    55
  • Feature: Cascade
    Yes
  • Housing Style
    Inline
  • Color Option 1
    White
  • Input Type
    PNP
  • Feature: Hazardous Area
    No
  • Pro-Editor Compatible (Discrete)
    No
  • Number of Colors / Segments
    1
  • Color 1 - Wavelength/Color Temp/Coordinates
    6500K
  • Max Op. Relative Humidity Non-Condensing (%)
    95% @ 50°C
  • Feature: Audible
    No

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

S15WLWQ Description

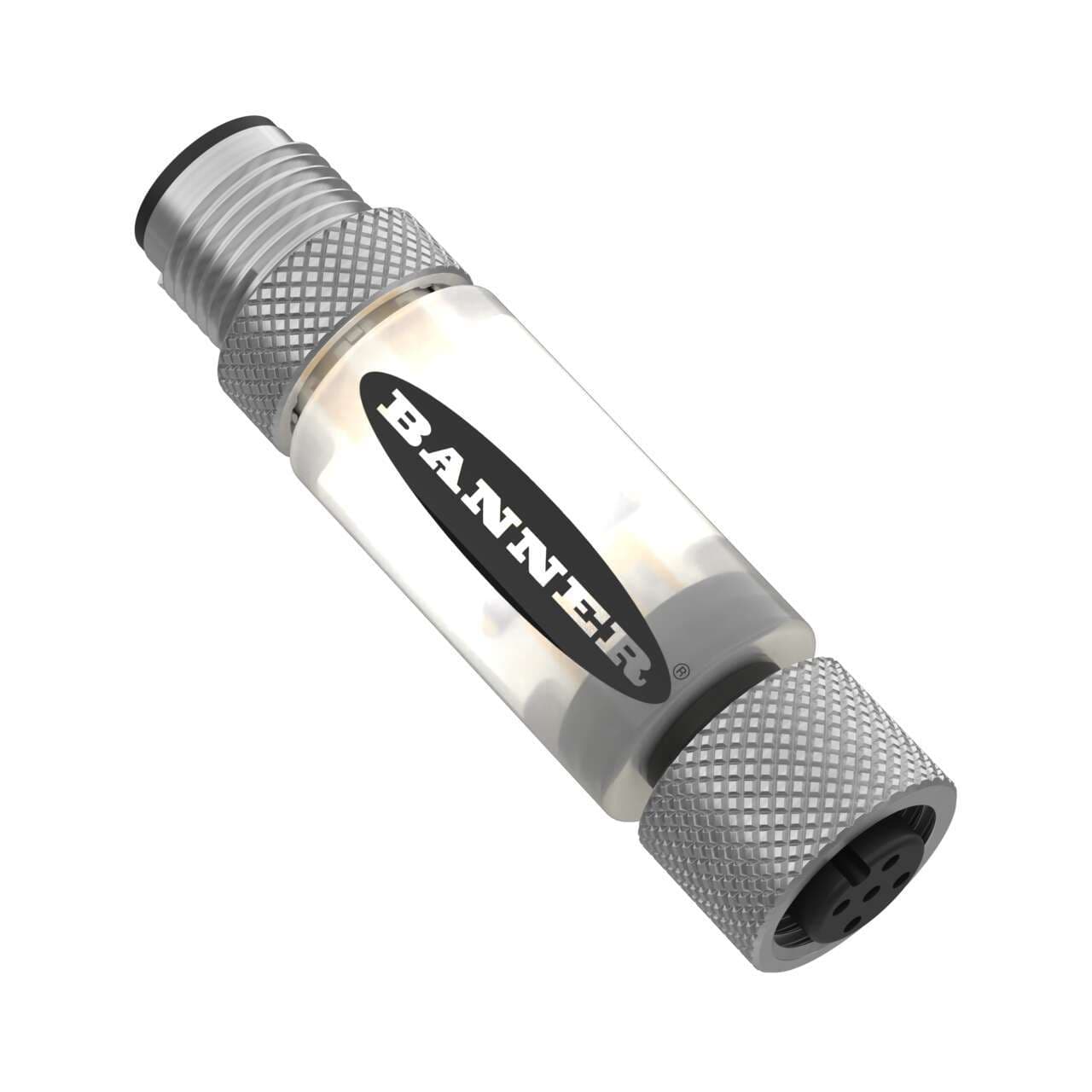

Banner Engineering S15WLWQ is a pilot light designed with 1-color Cool White (W) LED illumination and functions as a 1-color in-line indicator. It features a PVC housing and is pre-equipped with a 4-pin Euro-style M12 male connector for connectivity. The dimensions of this part are L27.9mm x D15mm and L58mm x D15mm, supporting a supply voltage of 24VDC. It is operational within an ambient air temperature range of -40°C to +70°C. The S15WLWQ offers a degree of protection rated at IP66, IP67, IP68, and NEMA 1, ensuring its durability in various environments. Its shape is described as a cylindrical linear strip, and it includes 1 x digital input (10-30Vdc; PNP) for color control.

Related documents S15WLWQ Specs

S15WLWQ 218808.pdf
