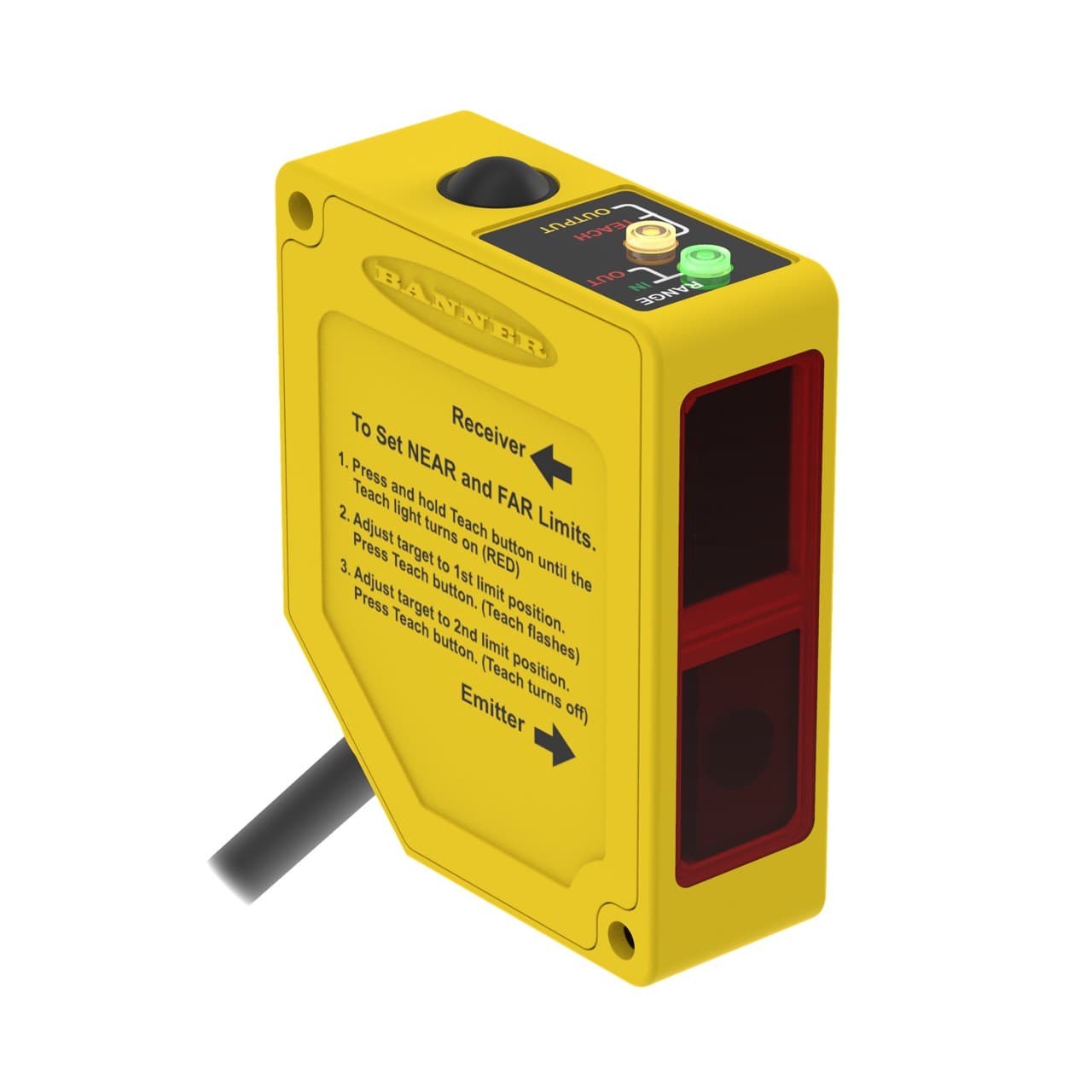

Q50AVU W/30 Banner Electronic Components
Part#:Q50AVU W/30
Manufacturer:Banner
Product Lifecycle:Active
Get a quick Quote!
Q50 Series: LED-based Triangulation Measurement, Visible Red LED Range: 50-150 mm; Input: 15 to 30 V, Output: 0 to 10V; Response: 4 / 64 ms Selectable, 9 m (30 ft) Cable
About the manufacturer: Banner is one of the manufacturers that offers Electronic Components that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the Q50AVU W/30 Banner price in the box on the right side or send a quick quote.
Product Details
- Cable Length (m) 9
- Input/Output Analog
- Adjustments Teach Button
- IP Rating IP67
- Minimum Window Size (mm) 5
- Common Ethernet Protocol No
- Profibus No
- Device Type Sensor
- Quick Disconnect Type No QD
- Mechanical Shock IEC 60947-5-2 requirements: 30G 11 ms duration, half sine wave
- Max Operating Temperature (°C) 55
- Max Measurement Range >100 mm - <=500 mm
- Sensing Mode (Detailed) Triangulation
- Max Sensing Distance (mm) 150
- Analog Resolution/Discrete Repeatability 0.5
- Sensing Beam Wavelength (nm) 685
- NEMA Rating NEMA 6
- Min Operating Temperature (°C) -10
- Warm-up Time (minutes) 15
- RS-232 No
- Sensing Mode (General) Proximity
- Indicator LED(s)
- Delay at Power-up (ms) 2000
- Analog Voltage Output Rating 15mA Max
- Analog Linearity (mm) +/- 1.5
- Power/Current Consumption (exclusive of load) 70 mA
- 1-wire Serial Interface No
- Power DC
- Connection Flying Leads
- Number of Pins 5
- Minimum Response Time (ms) 4
- Max Ambient Light (Lux) 10000
- SSI No
- PC Configurable No
- Minimum Sensing Distance (mm) 50
- Vibration MIL-STD-202F req. Method 201A (vibration:10 to 60Hz max., double amplitude 0.06", max acc. 10G).
- Max Op. Relative Humidity Non-Condensing (%) 90 at 50°C
- RS-422 No
- Feature: Chemical Resistant No
- Sensing Beam Visible Red LED
- Housing Style Rectangular
- Power Supply 15-30 V dc
- Output Protection Protected against short circuit conditions
- Spot Size (@ Reference Distance) 20 mm
- Remote Teach and Laser Control Input Impedence 15 kΩ
- Primary Housing Material ABS/Polycarbonate
- Analog Output Configuration 0-10 V dc
- Temperature Effect (mm/°C) 0.08 mm/°C from 0 to 50°C, 0.11 mm/°C from -10 to 55°C
- Window Material Acrylic
- Feature: Remote Teach Yes
- Wireless No
- Color Sensitivity (Typical) 90% white to 18% gray: < 1.25 mm; 90% white to 6% black: < 5.5 mm (see chart for details)
- IO Link No
- RS-485 No
- Supply Protection Circuitry Protected against reverse polarity and transient overvoltages
- PROFINET No
- Feature: Timing (Hold/Delay) No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
Related documents Q50AVU W/30 Specs
