PKG6Z-.5 Banner Cordsets
Part#:PKG6Z-.5
Manufacturer:Banner
Alt. Part#:71429
Product Lifecycle:Active
Get a quick Quote!

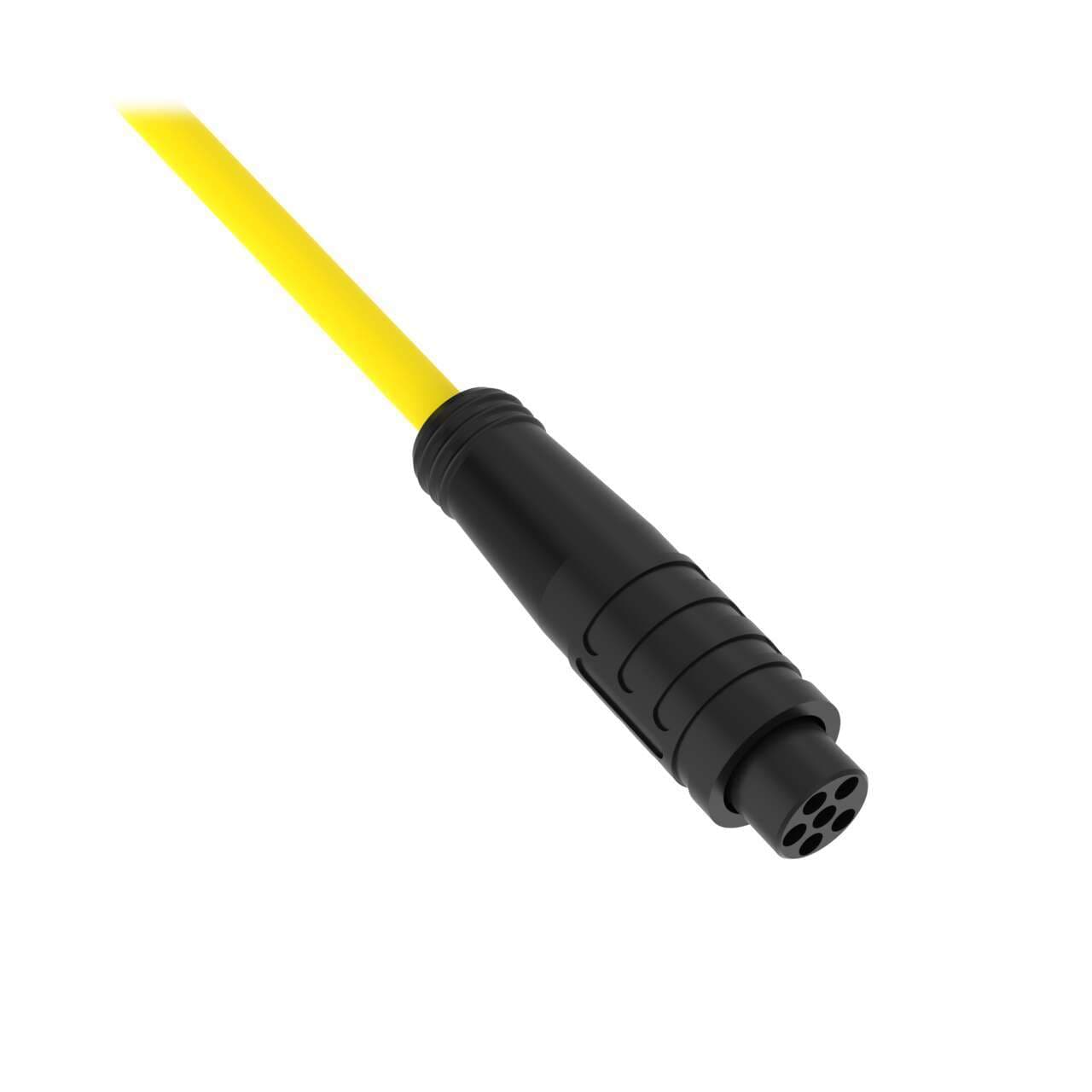

Cordset: Single Ended M8 Snap; 6-pin Straight Female Connector; 0.5 m (1.64 ft) Yellow PVC Jacket; Nylon Black Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PKG6Z-.5 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight27.21552 g
- Country Of OriginTW
- Connector Body Material/Color PUR Black
- Primary Connector Type PICO
- Outside Cable Diameter (mm) 4.7
- IP Rating IP67
- Number of Contacts 6
- Primary Coupling Method M8 Snap
- Number of Connectors 1
- Voltage Rating (V) 125 V ac/dc
- Primary Number of Conductors 6
- Feature: Hazardous Area No
- Trunk Length (m) No Trunk
- Minimum Temp. (°C) -40
- Primary AWG 26
- Shield/No Shield No Shield
- Cable Jacket Color Black
- Secondary Connector Type Flying Leads
- Current Rating (A) 2.0
- Oil/Grease Resistant No
- Cordset Length (m) 0.5
- Maximum Temp. (°C) 90
- Primary Orientation Straight
- Cable Jacket Material PVC
- Coupling Material/Color Nylon Black
- Primary Gender Female
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
PKG6Z-.5 Description
Banner Engineering PKG6Z-.5 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 6-pin M8 female connector and bare end flying leads. The cable has a diameter of 4.7mm and is encased in black PVC sheathing. It is 6.5 feet (approximately 2 meters) in length. This part operates within an ambient air temperature range of -40 to +90 degrees Celsius and offers a degree of protection rated at IP67, making it suitable for environments where dust and temporary immersion in water are concerns. The rated voltage for AC applications is 125Vac.
