PKG4M-2 Banner Cordsets
Part#:PKG4M-2
Manufacturer:Banner
Alt. Part#:2878
Product Lifecycle:Active
In-stock parts: 1
Jun 20, 2025

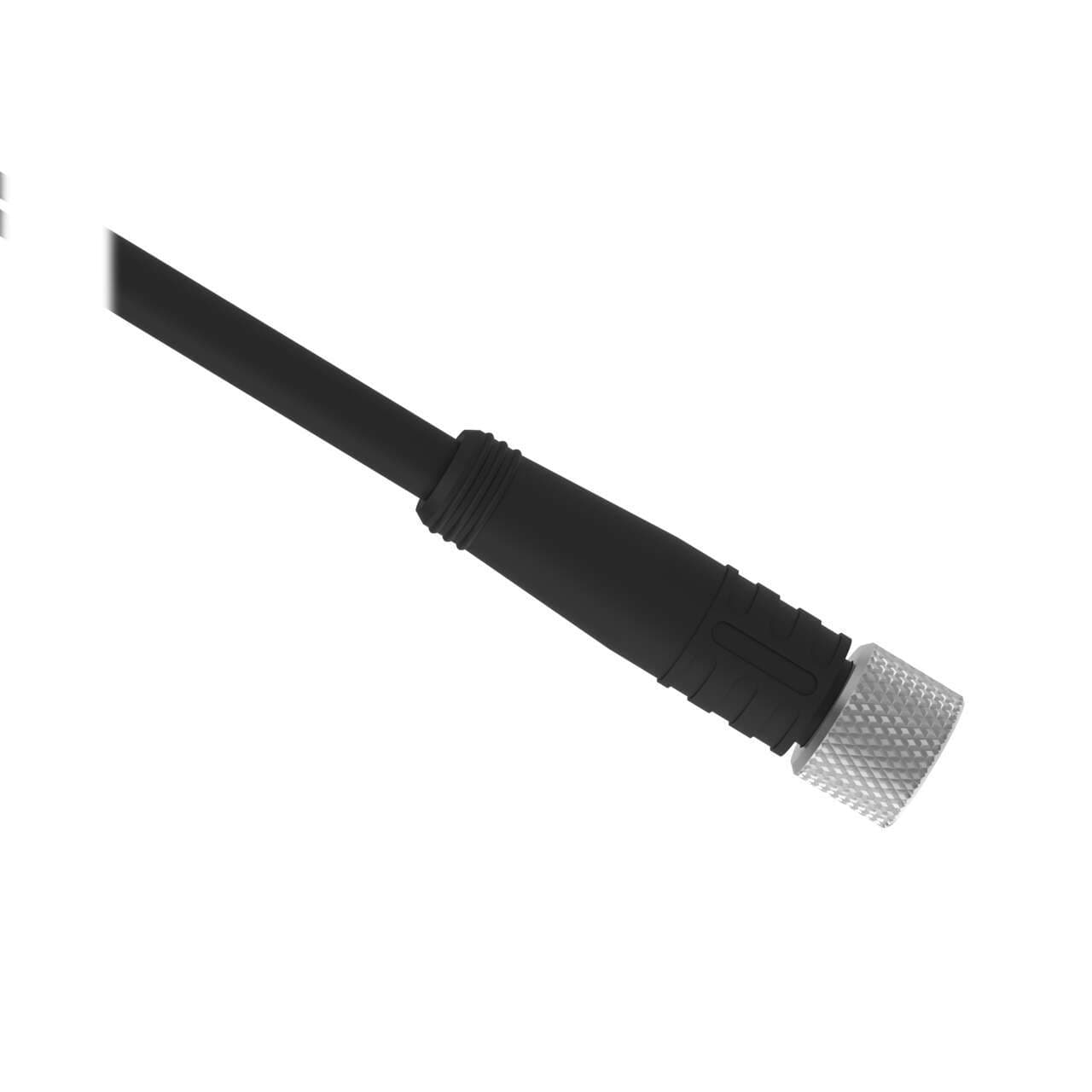

Cordset: Single Ended M8; 4-pin Straight Female; 2.04 m 4x26 Black PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PKG4M-2 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight49.89512 g
- Country Of OriginTW
- Outside Cable Diameter (mm) 3.8
- Current Rating (A) 2.0
- Coupling Material/Color Nickel Plated Brass
- Primary Number of Conductors 4
- Trunk Length (m) No Trunk
- IP Rating IP67
- Cordset Length (m) 2
- Primary Gender Female
- Connector Body Material/Color PUR Black
- Maximum Temp. (°C) 105
- Number of Connectors 1
- Primary Orientation Straight
- Shield/No Shield No Shield
- Primary AWG 26
- Number of Contacts 4
- Voltage Rating (V) 125 V ac/dc
- Cable Jacket Color Black
- Secondary Connector Type Flying Leads
- Cable Jacket Material PVC
- Minimum Temp. (°C) -40
- Feature: Hazardous Area No
- Primary Connector Type PICO
- Primary Coupling Method M8 Thread
- Oil/Grease Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
PKG4M-2 Description
Banner Engineering PKG4M-2 is a pre-assembled cable/cordset designed for various automation applications. It features a double-ended design with a 4-pin M8 female connector on one end and a 2-pin BNC male connector on the other. The cable has a diameter of 4.4mm and is encased in black PVC sheathing. It is 6.5 feet (2 meters) in length and can operate in ambient air temperatures ranging from -40 to +105 degrees Celsius. This model is rated for a voltage of 125Vac and offers a degree of protection rated at IP67, indicating its capability to withstand dust and water ingress in demanding environments.
