PITL23UM4-VL Banner Through Beam Sensors
Part#:PITL23UM4-VL
Manufacturer:Banner
Alt. Part#:801985
Product Lifecycle:Active
Get a quick Quote!

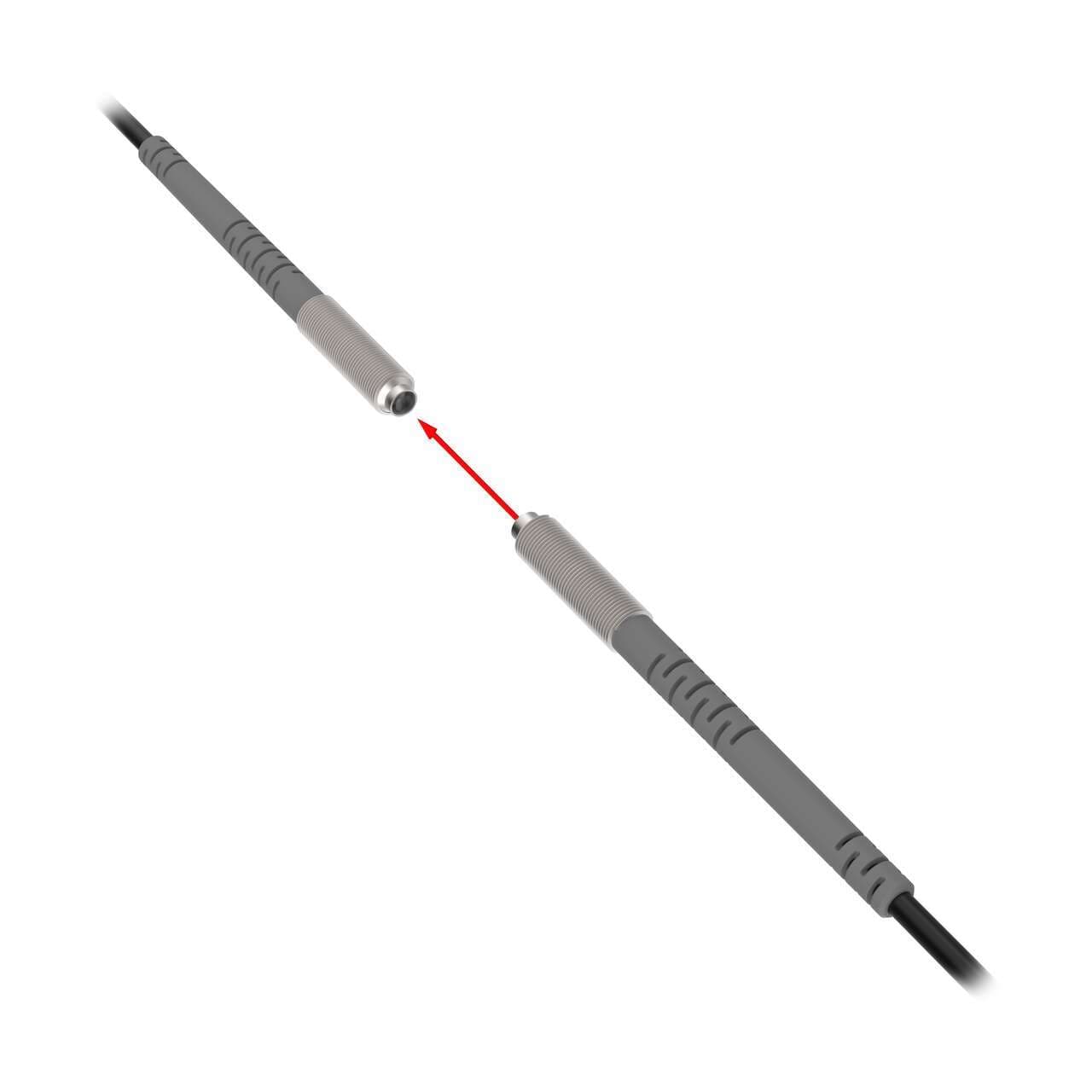

Plastic Fiber; Opposed Mode Pair; Core Dia.: 0.5 mm; Fiber Length 1 m; Stainless Thread M4 With integrated Lens, 30 mm spot size at 100 mm range; Flex Relief, Free cut, Vantage Line
About the manufacturer: Banner is one of the manufacturers that offers Through Beam Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PITL23UM4-VL Banner price in the box on the right side or send a quick quote.
Product Details
- Weight18.14368 g
- Country Of OriginTW
- Primary brand Banner Engineering
- Thread size M4
- Functions Fiber optic sensor
- Length 3ft / 1m
- Product series / family name Fiber sensors
- Main function Fiber sensor
- Equivalent to PITL23UM4VL
- Material Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
- Ambient air temperature for operation +70 °C
- Order code / Manufacturer SKU 801985
- Design through-beam system / opposed mode flex strain relief end tip lns. pair of individual fibers In-line sensing
- Shape Cylindrical (threaded) end tip
- Sub-range name Plastic fiber - Vantage Line
- Diameter 0.5mm fiber core
- Housing Style Round
- Fiber Length (m) 1
- Retractile No
- Termination Type Plastic Fiber Sensors
- Fiber Sensing End Tip Lens
- Core Diameter (mm) 0.5
- Feature: Small Object Detection No
- Max Distance: DF-G2 (mm) No Data
- Sensing End Material (Specific) Stainless Steel
- Termination Free Cut
- Integrated Lens Yes
- Application: Vacuum Feed Through None
- Fiber Optic Type Plastic
- Sensing Mode (Detailed) Reflective
- Minimum Bend Radius (mm) 15
- Application: Liquid Level No
- Max Distance: DF-G1 (mm) No Data
- Quantity Included 2
- Sensing End Segment 2 Lens
- Feature: Chemical Resistant No
- Measured Max Distance (mm) No Data
- Fiber Sheathing Material (Jacket) Polyethylene
- Sensing End Segment 1 Thread
- Max Temp ( °C) 70
- Fiber Sensing End Size - Mounting Area M4
- Sensing Mode (General) Opposed
- Flex Relief Yes
- Feature: Extended Range Yes
- Max Distance: DF-G3 (mm) No Data
- Beam Exit In-line
- Fiber Sensing End Size M4
- Tariff Fiber Meters (fbm) 2
- Minimum Repeat Bending Endurance 1000
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
PITL23UM4-VL Description
Banner Engineering PITL23UM4-VL is a fiber optic sensor designed for through-beam system applications, functioning as an opposed mode pair of individual fibers in-line sensing. It features a 0.5mm fiber core diameter and is part of the Plastic fiber series. The sensor has a cylindrical (threaded) probe tip shape, with the sensing end made of stainless steel and the fiber sheathed in polyethylene (PE). It is capable of operating in ambient air temperatures up to +70°C. The total length of the sensor is 6ft / 2m.
Related documents PITL23UM4-VL Specs
