PIA26U Banner Through Beam Sensors

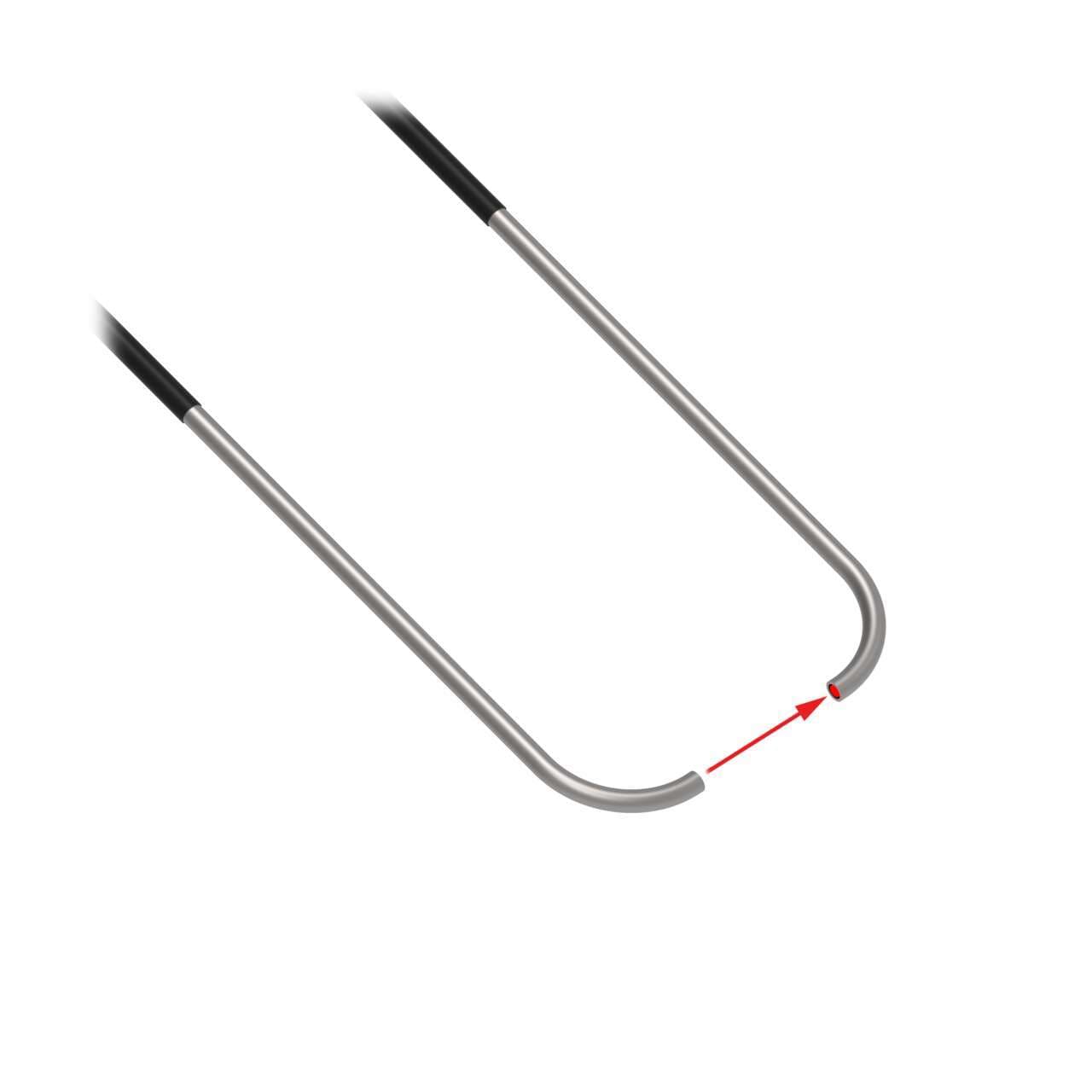

Banner PIA26U Plastic Fiber, Opposed Mode; Core Dia.: 0.5 mm; Fiber Length 2 m; Angle; Free cut
Banner

Part#:PIA26U

Manufacturer:Banner

Alt. Part#:25905

Product Lifecycle:Active

Get a quick Quote!

Plastic Fiber, Opposed Mode; Core Dia.: 0.5 mm; Fiber Length 2 m; Angle; Free cut

About the manufacturer: Banner is one of the manufacturers that offers Through Beam Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PIA26U Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight37.648136 g
  • Country Of OriginJP
  • Product series / family name
    Fiber sensors
  • Material
    Stainless steel sensing end Plastic fiber Polyethylene fiber sheath
  • Functions
    Fiber optic sensor
  • Main function
    Fiber sensor
  • Diameter
    0.91mm (end) 0.5mm fiber core
  • Order code / Manufacturer SKU
    25905
  • Sub-range name
    Plastic fiber series
  • Ambient air temperature for operation
    +70 °C
  • Primary brand
    Banner Engineering
  • Design
    through-beam system / opposed mode pair of individual fibers Side / right-angled sensing
  • Length
    6ft / 2m
  • Housing Style
    Round
  • Flex Relief
    No
  • Application: Vacuum Feed Through
    None
  • Sensing Mode (Detailed)
    Reflective
  • Max Temp ( °C)
    70
  • Max Distance: DF-G2 (mm)
    No Data
  • Sensing Mode (General)
    Opposed
  • Retractile
    No
  • Feature: Small Object Detection
    No
  • Fiber Optic Type
    Plastic
  • Sensing End Segment 2
    Angle
  • Feature: Extended Range
    No
  • Termination Type
    Plastic Fiber Sensors
  • Quantity Included
    2
  • Fiber Length (m)
    2
  • Termination
    Free Cut
  • Fiber Sensing End Size - Mounting Area
    0.9 mm
  • Integrated Lens
    No
  • Application: Liquid Level
    No
  • Fiber Sheathing Material (Jacket)
    Polyethylene
  • Minimum Bend Radius (mm)
    10
  • Measured Max Distance (mm)
    No Data
  • Fiber Sensing End Tip
    Angle
  • Fiber Sensing End Size
    0.9 mm
  • Feature: Chemical Resistant
    No
  • Max Distance: DF-G1 (mm)
    No Data
  • Sensing End Material (Specific)
    Stainless Steel
  • Core Diameter (mm)
    0.5
  • Tariff Fiber Meters (fbm)
    4
  • Beam Exit
    Right Angle
  • Sensing End Segment 1
    Probe
  • Minimum Repeat Bending Endurance
    5000
  • Max Distance: DF-G3 (mm)
    No Data

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

PIA26U Description

Banner Engineering PIA26U is a fiber optic sensor designed for precise detection tasks, featuring a through-beam system with an opposed mode probe tip pair of individual fibers positioned side by side in a right-angled sensing configuration. This sensor is part of the Plastic fiber series and operates effectively at an ambient air temperature up to +70°C. It has a 0.5mm fiber core diameter and comes with a cylindrical (smooth) probe tip. The sensing end is made of stainless steel, while the fiber is a plastic material with a polyethylene (PE) fiber sheath for added durability. The total length of the sensor is 6ft / 2m, accommodating various installation requirements.

Related documents PIA26U Specs

PIA26U PIA2 SERIES UNTERMINATED-1630955328751.pdf
PIA26U PIA2 SERIES UNTERMINATED-1630955328756.stp
