PGIRS66U-15 Banner Through Beam Sensors

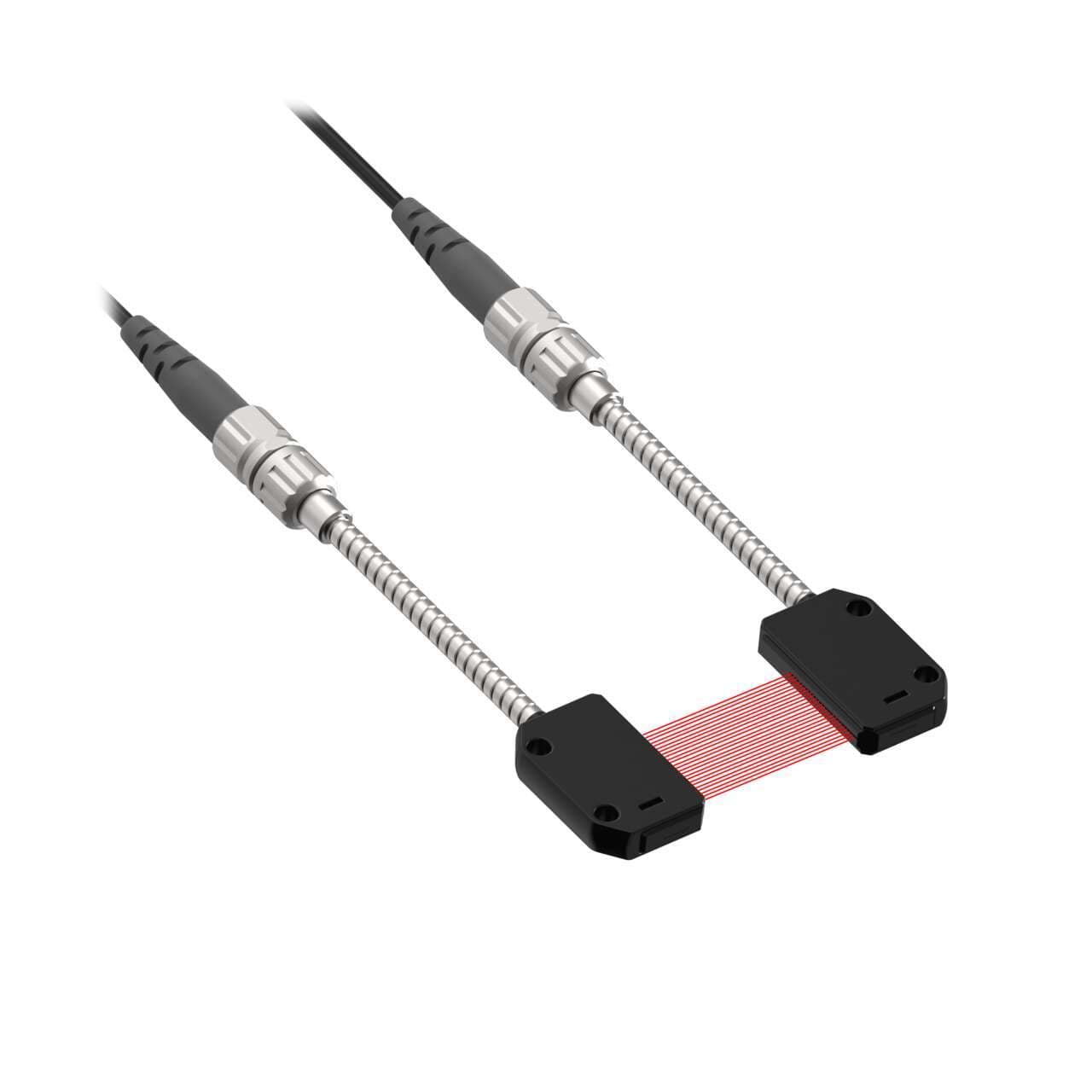

Banner PGIRS66U-15 Plastic Fiber Group Array: Opposed Mode; 15 mm Fiber Array 59X 0.25 mm Core; Die Cast Rectangular Housing with Coupled 2 m 1.5 mm Core Diameter Plastic Fiber; Free Cut
Banner

Part#:PGIRS66U-15

Manufacturer:Banner

Alt. Part#:804016

Product Lifecycle:Active

Get a quick Quote!

Plastic Fiber Group Array: Opposed Mode; 15 mm Fiber Array 59X 0.25 mm Core; Die Cast Rectangular Housing with Coupled 2 m 1.5 mm Core Diameter Plastic Fiber; Free Cut

About the manufacturer: Banner is one of the manufacturers that offers Through Beam Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the PGIRS66U-15 Banner price in the box on the right side or send a quick quote.

Product Details

  • Weight134.263232 g
  • Country Of OriginTW
  • Quantity Included
    2
  • Fiber Sensing End Tip
    Array
  • Integrated Lens
    No
  • Sensing End Material (Specific)
    Zinc Alloy
  • Flex Relief
    No
  • Max Distance: DF-G1 (mm)
    476
  • Fiber Optic Type
    Plastic
  • Sensing End Segment 1
    Angle
  • Max Temp ( °C)
    70
  • Measured Max Distance (mm)
    476
  • Beam Exit
    Right Angle
  • Retractile
    No
  • Feature: Extended Range
    No
  • Termination Type
    Plastic Fiber Sensors
  • Fiber Sheathing Material (Jacket)
    Stainless Steel Monocoil
  • Minimum Bend Radius (mm)
    40
  • Feature: Chemical Resistant
    No
  • Fiber Sensing End Size - Mounting Area
    16.0 x 25.0 mm
  • Sensing Mode (General)
    Opposed
  • Array Length (mm)
    15
  • Application: Vacuum Feed Through
    None
  • Max Distance: DF-G3 (mm)
    3696
  • Housing Style
    Rectangular
  • Fiber Length (m)
    2
  • Termination
    Free Cut
  • Max Distance: DF-G2 (mm)
    771
  • Sensing Mode (Detailed)
    Array
  • Core Diameter (mm)
    59 x 0.25
  • Feature: Small Object Detection
    Yes
  • Max Range: DF-G3 (mm)
    >3m - <=5m
  • Sensing End Segment 2
    Array
  • Application: Liquid Level
    No
  • Fiber Sensing End Size
    16.0 x 25.0 mm
  • Minimum Repeat Bending Endurance
    1000
  • Tariff Fiber Meters (fbm)
    19.7

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

PGIRS66U-15 Description

Banner Engineering PGIRS66U-15 is a fiber optic sensor designed for through-beam system applications, featuring an opposed mode flex strain relief pair of individual fibers positioned side by side with a right-angled sensing orientation. This sensor falls under the Plastic fiber series, characterized by its rectangular shape with a 60x16mm sensing area. It is constructed from plastic fiber with a polyethylene (PE) fiber sheath, ensuring durability and compatibility with various applications. The sensor has a total length of 2 meters and is capable of operating in ambient air temperatures up to +70°C, making it suitable for a wide range of industrial environments.
