PBT43TSL5-VL Banner Through Beam Sensors
Part#:PBT43TSL5-VL
Manufacturer:Banner
Alt. Part#:93948
Product Lifecycle:Active
Get a quick Quote!

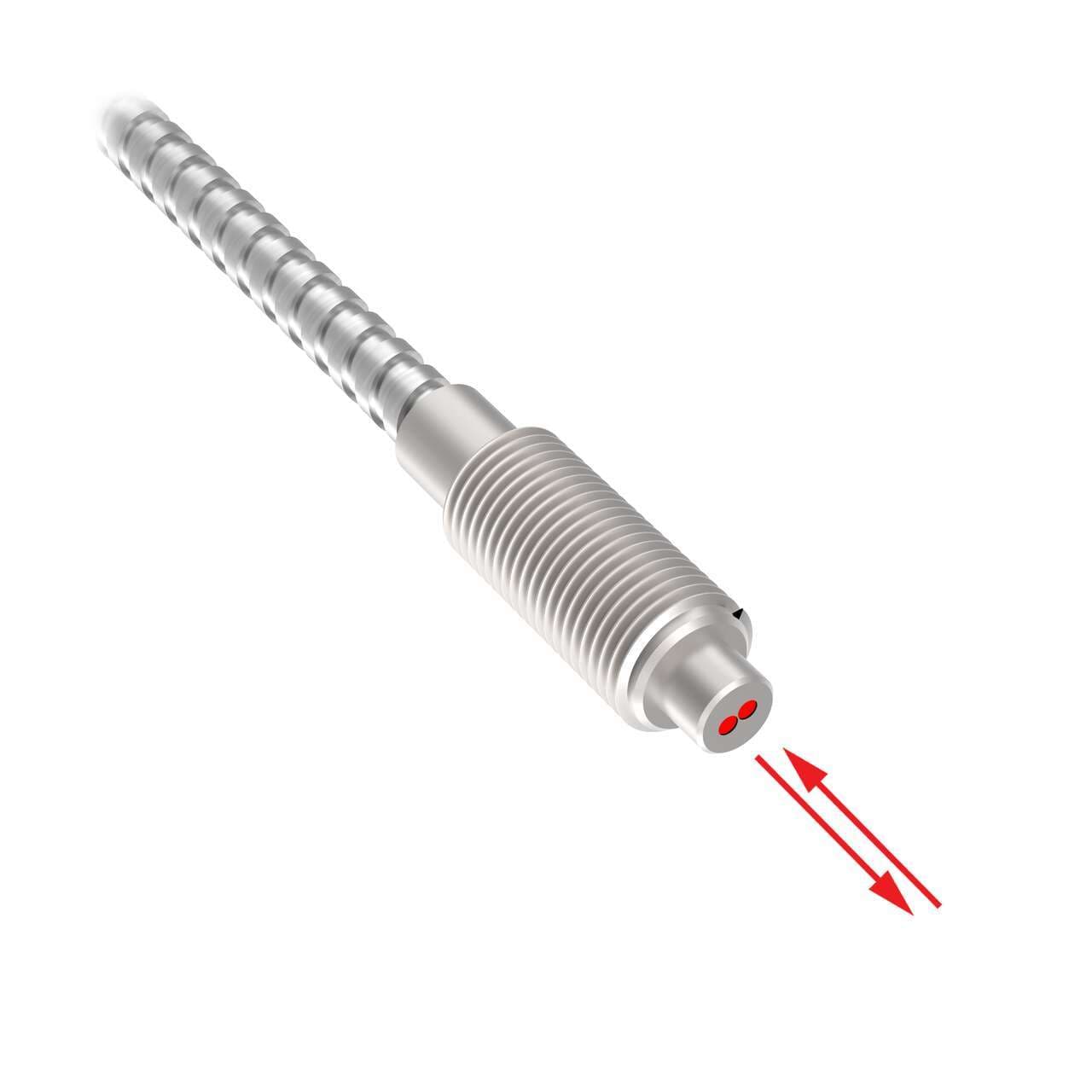

Plastic Fiber, Diffuse Reflective; Core Dia.: 1 mm; Fiber Length 1 m; Thread M6; Stainless Monocoil; 25 mm Bend Radius; Vantage Line
About the manufacturer: Banner is one of the manufacturers that offers Through Beam Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PBT43TSL5-VL Banner price in the box on the right side or send a quick quote.
Product Details
- Weight45.3592 g
- Country Of OriginTW
- Product series / family name Fiber sensors
- Length 3ft / 1m
- Equivalent to PBT43TSL5VL
- Main function Fiber sensor
- Design diffuse-reflective system Bifurcated fiber In-line sensing
- Thread size M6
- Material Stainless steel sensing end Plastic fiber stainless flexible tubing (fiber sheath)
- Sub-range name Plastic fiber - Vantage Line
- Diameter 1mm fiber core
- Primary brand Banner Engineering
- Functions Fiber optic sensor
- Shape Cylindrical (threaded) end tip
- Ambient air temperature for operation +70 °C
- Order code / Manufacturer SKU 93948
- Max Range: DF-G3 (mm) >1m - <=3m
- Flex Relief No
- Minimum Repeat Bending Endurance 1000
- Max Temp ( °C) 70
- Retractile No
- Tariff Fiber Meters (fbm) 2
- Fiber Sheathing Material (Jacket) Stainless Steel Monocoil
- Integrated Lens No
- Max Distance: DF-G3 (mm) 2409
- Sensing Mode (General) Diffuse
- Sensing End Segment 1 Thread
- Fiber Sensing End Tip Ferrule
- Beam Exit In-line
- Fiber Sensing End Size 4.0 mm
- Feature: Extended Range No
- Sensing Mode (Detailed) Reflective
- Fiber Length (m) 1
- Sensing End Material (Specific) Stainless Steel
- Core Diameter (mm) 1
- Measured Max Distance (mm) 310
- Quantity Included 1
- Sensing End Segment 2 Ferrule
- Feature: Chemical Resistant No
- Max Distance: DF-G1 (mm) 310
- Housing Style Round
- Minimum Bend Radius (mm) 25
- Application: Liquid Level No
- Fiber Optic Type Plastic
- Termination Terminated
- Max Distance: DF-G2 (mm) 502
- Termination Type Plastic Fiber Sensors
- Fiber Sensing End Size - Mounting Area M6
- Feature: Small Object Detection No
- Application: Vacuum Feed Through None
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
PBT43TSL5-VL Description
Banner Engineering PBT43TSL5-VL is a fiber optic sensor designed for diffuse-reflective system applications, featuring a flex strain relief and bifurcated fiber in-line sensing. This sensor is part of the Plastic fiber (Vantage Line) series and operates at an ambient air temperature of up to +70°C. It has a 1mm fiber core diameter and is constructed with a stainless steel sensing end, plastic fiber, and a polyethylene (PE) fiber sheath. The sensor's shape is cylindrical with a threaded end tip, and it has a total length of 3ft / 1m.
