PBT26UHF Banner Through Beam Sensors
Part#:PBT26UHF
Manufacturer:Banner
Alt. Part#:61208
Product Lifecycle:Active
Get a quick Quote!
Plastic Fiber, Diffuse Reflective; Core Dia.: 0.5 mm; Fiber Length 2 m; Thread; DuraBend, Free cut
About the manufacturer: Banner is one of the manufacturers that offers Through Beam Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the PBT26UHF Banner price in the box on the right side or send a quick quote.
Product Details
- Weight36.28736 g
- Country Of OriginJP
- Sub-range name Plastic fiber series
- Design diffuse-reflective system Bifurcated fiber
- Length 6ft / 2m
- Product series / family name Fiber sensors
- Shape Cylindrical (threaded) end tip
- Ambient air temperature for operation +70 °C
- Functions Fiber optic sensor
- Order code / Manufacturer SKU 61208
- Main function Fiber sensor
- Thread size M3
- Material Nickel-plated brass sensing end Plastic fiber Polyethylene fiber sheath
- Primary brand Banner Engineering
- Diameter 0.5mm fiber core
- Sensing Mode (General) Diffuse
- Retractile No
- Application: Liquid Level No
- Max Distance: DF-G2 (mm) No Data
- Beam Exit In-line
- Termination Free Cut
- Tariff Fiber Meters (fbm) 4
- Sensing End Material (Specific) Nickel-Plated Brass
- Minimum Bend Radius (mm) 1
- Termination Type Plastic Fiber Sensors
- Fiber Optic Type Plastic
- Minimum Repeat Bending Endurance 2000
- Fiber Sensing End Size - Mounting Area M3
- Fiber Sheathing Material (Jacket) Polyethylene
- Fiber Sensing End Size M3
- Feature: Chemical Resistant No
- Sensing Mode (Detailed) Reflective
- Sensing End Segment 1 Thread
- Application: Vacuum Feed Through None
- Quantity Included 1
- Max Temp ( °C) 70
- Measured Max Distance (mm) No Data
- Fiber Length (m) 2
- Feature: Small Object Detection No
- Max Distance: DF-G1 (mm) No Data
- Fiber Sensing End Tip Thread
- Core Diameter (mm) 0.5
- Feature: Extended Range No
- Housing Style Round
- Flex Relief No
- Integrated Lens No
- Max Distance: DF-G3 (mm) No Data
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
PBT26UHF Description

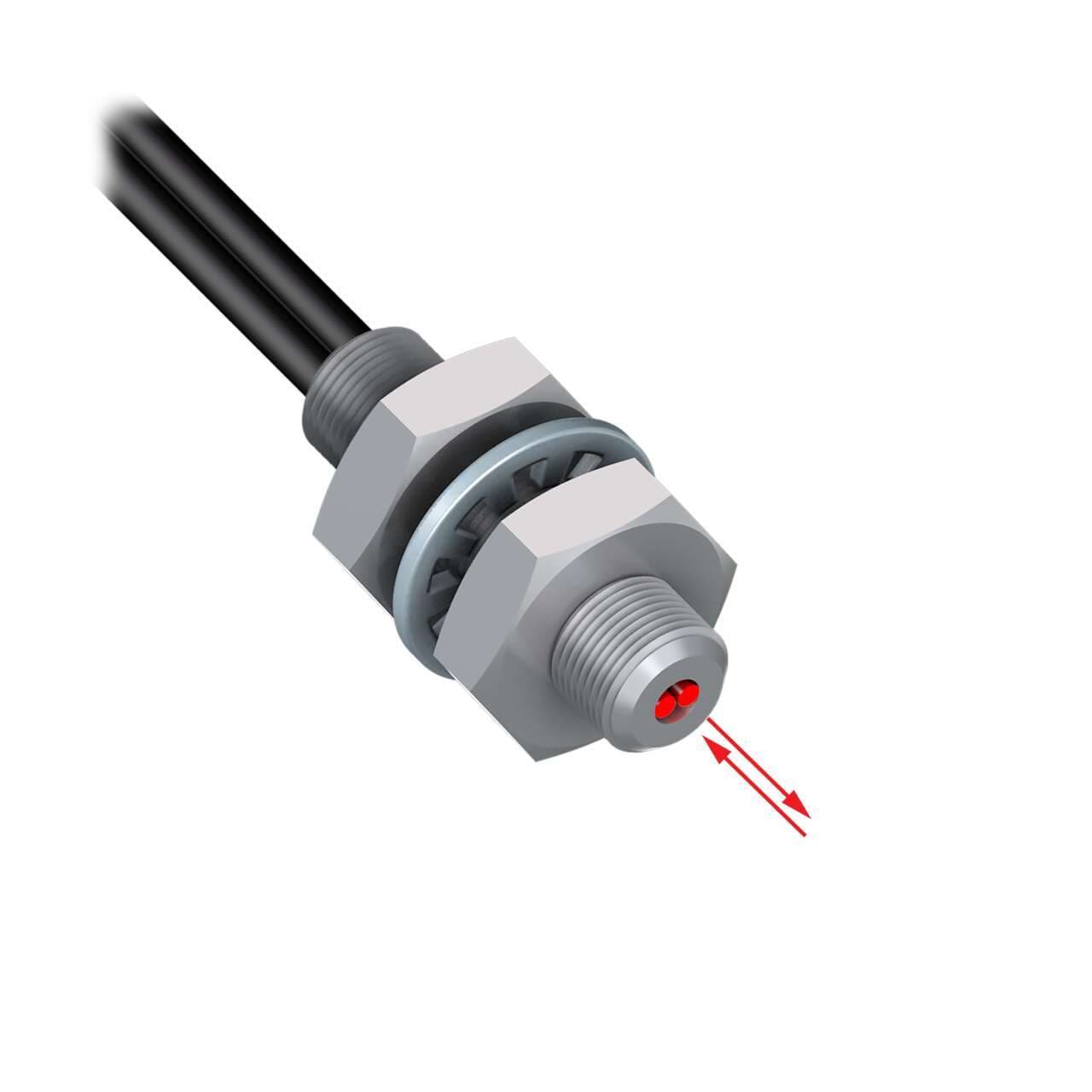

Banner Engineering PBT26UHF is a fiber optic sensor designed for diffuse-reflective system applications with a bifurcated fiber in-line sensing mechanism. It features a 0.5mm fiber core diameter and is part of the Plastic fiber series. The sensor has a cylindrical (threaded) end tip made of nickel-plated brass for the sensing end, with the fiber sheathed in polyethylene (PE). It has a total length of 6ft (2 meters) and is capable of operating in ambient air temperatures up to +70°C.
Related documents PBT26UHF Specs
