MQDMC-506 Banner Cordsets
Part#:MQDMC-506
Manufacturer:Banner
Alt. Part#:76642
Product Lifecycle:Active
In-stock parts: 6
Jun 20, 2025
Cordset: Single Ended M12; 5-pin Straight Male; 2.04 m 5x22 Black PVC Jacket; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the MQDMC-506 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight113.398 g
- Country Of OriginUS
- Number of Connectors 1
- IP Rating IP67
- Cordset Length (m) 1.83
- Minimum Temp. (°C) -40
- Cable Jacket Color Black
- Shield/No Shield No Shield
- Primary AWG 22
- Number of Contacts 5
- Primary Orientation Straight
- Outside Cable Diameter (mm) 5.6
- Voltage Rating (V) 250 V ac/dc
- Primary Gender Male
- Coupling Material/Color Nickel Plated Brass
- Primary Coupling Method M12 Single Key
- Connector Body Material/Color PUR Black
- Current Rating (A) 5.0
- Feature: Hazardous Area No
- Primary Number of Conductors 5
- Cable Jacket Material PVC
- Maximum Temp. (°C) 105
- Secondary Connector Type Flying Leads
- Trunk Length (m) No Trunk
- Primary Connector Type EURO
- Oil/Grease Resistant No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
MQDMC-506 Description

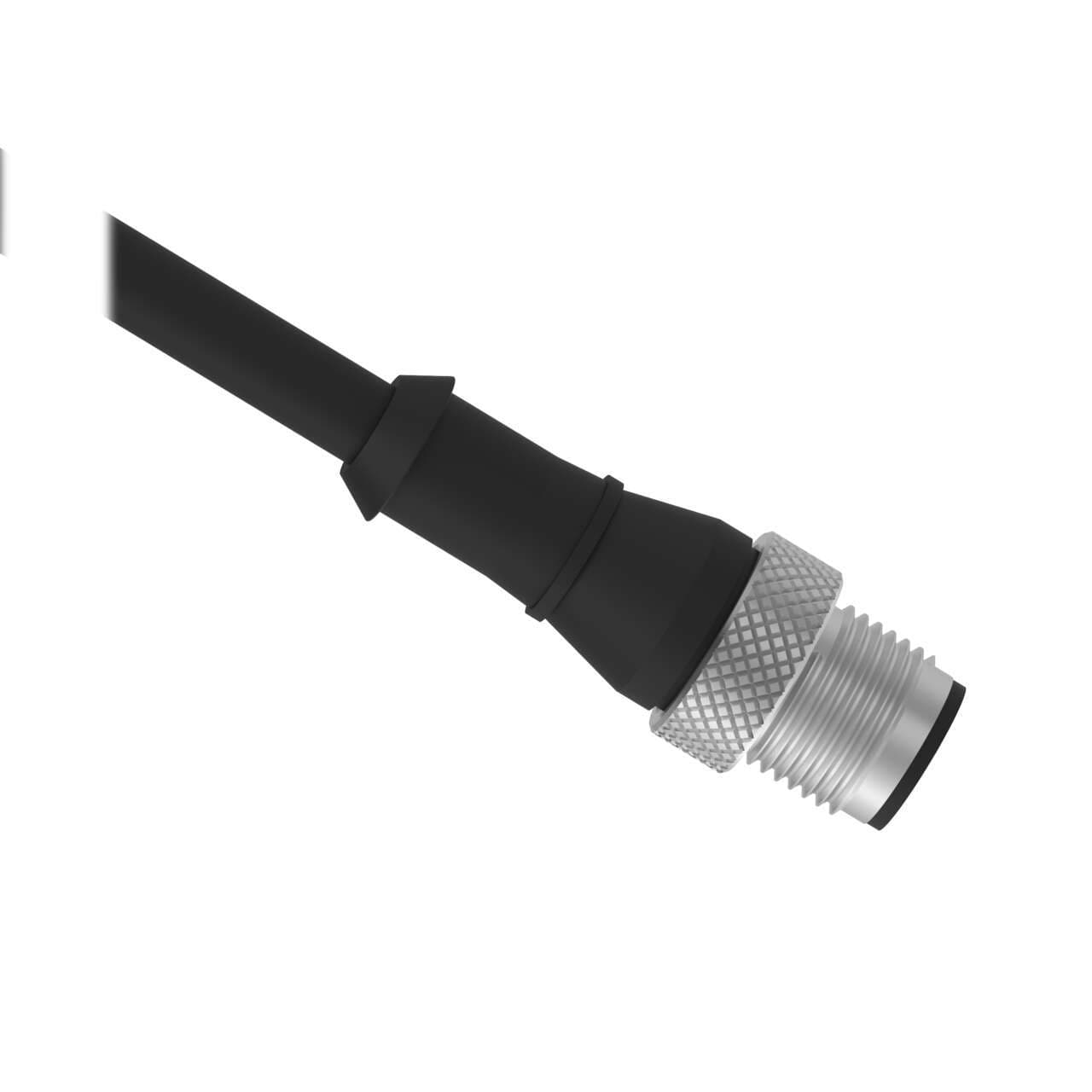

Banner Engineering MQDMC-506 is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.6mm diameter PVC cable and a 5-pin Euro-style M12 male connector with bare end flying leads. The connector's coupling nut is made from nickel-plated brass, ensuring a secure connection. This cable operates effectively within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67, making it suitable for challenging environments. The black sheathing provides a neutral appearance, and the cable has a length of 6ft (2m). It is rated for a voltage of 250Vac.
This item can ship within 24h!
1-year warranty
$33.64
Stock:
6
Select Qty:
$33.64
$33.64 each
