MQD9-415RA Banner Cordsets

Name: MQD9-415RA
Brand: Banner

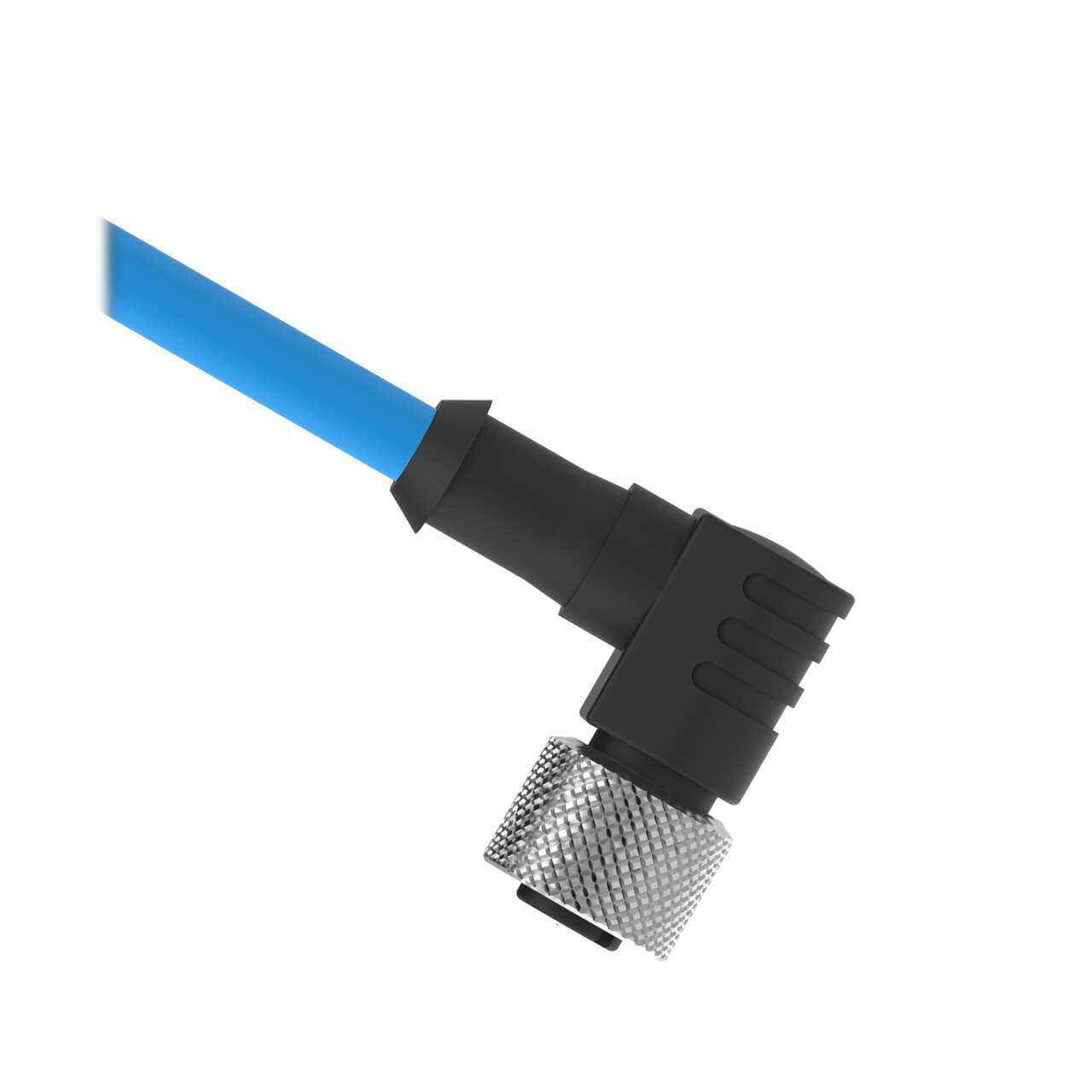

Banner MQD9-415RA Cordset: Single Ended M12; 4-pin Right-Angle Female; 5 m (16.4 ft) 2x20 PVC Blue; Nickel-Plated Brass Coupling Nut

Part#:MQD9-415RA

Manufacturer:Banner

Alt. Part#:35618

Product Lifecycle:Active

Get a quick Quote!

Cordset: Single Ended M12; 4-pin Right-Angle Female; 5 m (16.4 ft) 2x20 PVC Blue; Nickel-Plated Brass Coupling Nut

About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.

Check out the MQD9-415RA Banner price in the box on the right side or send a quick quote.

Product Details

Weight182.343984 g
Country Of OriginUS
Outside Cable Diameter (mm)
5.2
Coupling Material/Color
Nickel Plated Brass
Maximum Temp. (°C)
105
Primary Orientation
Right Angle
Connector Body Material/Color
PUR Black
Primary Connector Type
EURO
Number of Contacts
5
Current Rating (A)
4.0
Secondary Connector Type
Flying Leads
Primary Number of Conductors
2
Cordset Length (m)
4.57
Primary Gender
Female
Cable Jacket Color
Blue
Cable Jacket Material
PVC
Primary AWG
20
Number of Connectors
1
Voltage Rating (V)
250 V ac/dc
Oil/Grease Resistant
No

Trunk Length (m)

No Trunk

Minimum Temp. (°C)

-40

Feature: Hazardous Area

Yes

IP Rating

IP67

Shield/No Shield

No Shield

Primary Coupling Method

M12 Single Key

Product condition

ORIGINAL PACKAGING

SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging

MQD9-415RA Description

Banner Engineering MQD9-415RA is a pre-assembled cable/cordset designed for various automation applications. It features a single-ended design with a 5.2mm diameter PVC cable and a 5-pin Euro-style M12 female angled connector with bare end flying leads. The connection is secured with a chrome-plated brass coupling nut. This cable operates effectively within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67, making it suitable for challenging environments. The blue sheathing enhances visibility and identification in complex setups. With a length of 15ft (5m) and a rated voltage of 250Vac, this cable is tailored for reliable connectivity in a wide range of industrial applications.
