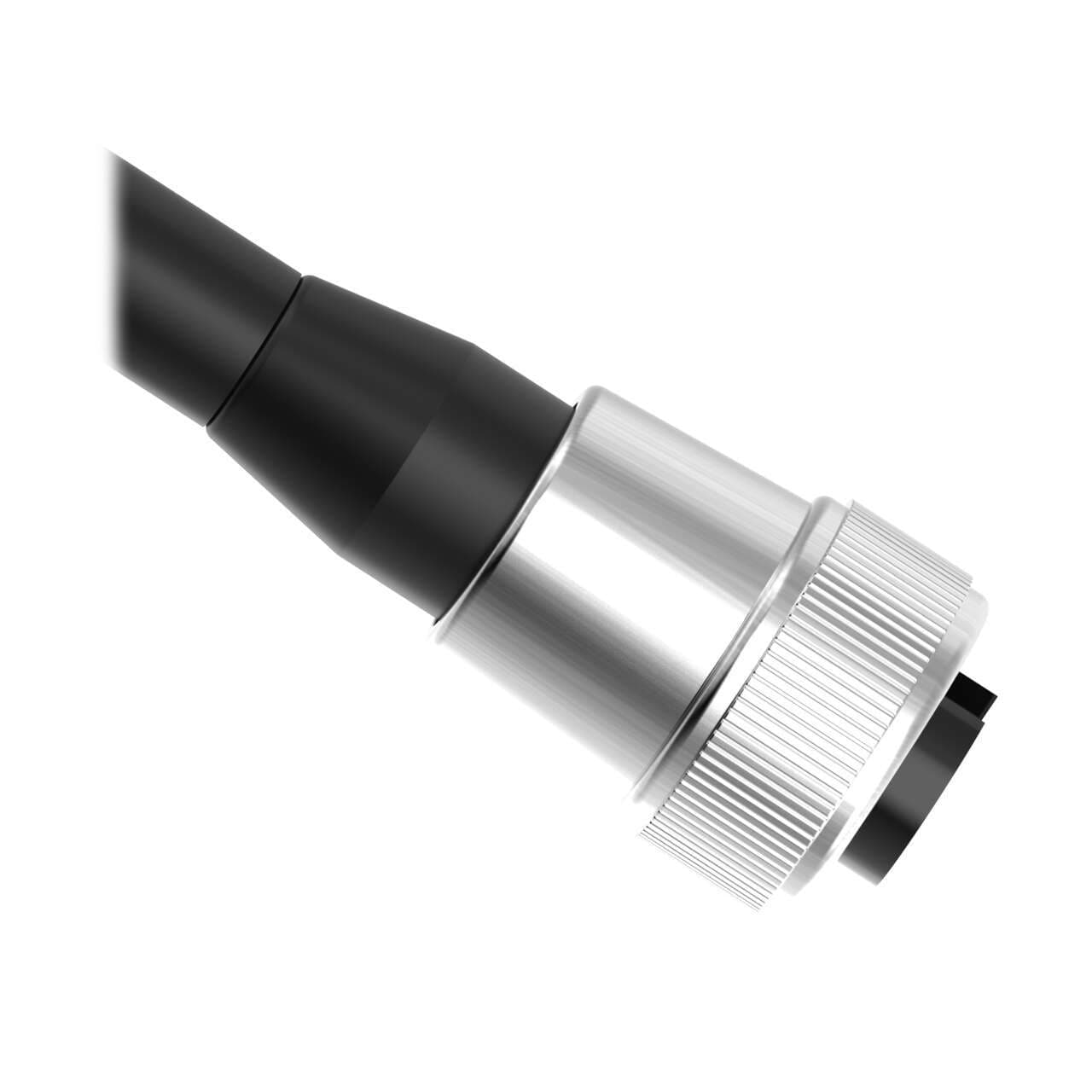

MBCCL-530 Banner Cordsets
Part#:MBCCL-530
Manufacturer:Banner
Alt. Part#:808527
Product Lifecycle:Active
Get a quick Quote!
Cordset: Single Ended 7/8 in; 5-pin Straight Female; 9 m (29.53 ft) 5x18 Black PVC Jacket; TPV Black; Nickel-Plated Brass Coupling Nut
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the MBCCL-530 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight1632.9312 g
- Country Of OriginTW
- Number of Contacts 5
- Current Rating (A) 9.0
- Oil/Grease Resistant No
- Outside Cable Diameter (mm) 11.6
- IP Rating IP67
- Secondary Connector Type Flying Leads
- Cable Jacket Color Black
- Minimum Temp. (°C) -40
- Secondary Number of Conductors 5
- Trunk Length (m) No Trunk
- Voltage Rating (V) 300 V ac/dc
- Cordset Length (m) 9
- Primary Number of Conductors 5
- Maximum Temp. (°C) 105
- Primary Coupling Method 7/8"-16
- Cable Jacket Material PVC
- Primary Orientation Straight
- Feature: Hazardous Area No
- Connector Body Material/Color PUR Black
- Primary Connector Type MINI
- Coupling Material/Color Nickel Plated Brass
- Primary Gender Female
- Number of Connectors 1
- Primary AWG 18
- Secondary AWG 18
- Shield/No Shield No Shield
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
MBCCL-530 Description
Mini-style Quick Disconnect Cable, 5 Pin Female Pin-out Straight Connector, 9 m (30 ft) in Length, Lighting Cable and Pin-out, Nickel Plated Brass Coupling Nut
Related documents MBCCL-530 Specs
1-year warranty
