K50BLXRXPQ Banner Pick-to-Light Sensors
Part#:K50BLXRXPQ
Manufacturer:Banner
Alt. Part#:17539
Product Lifecycle:Active
Get a quick Quote!
K50 Beacon EZ-LIGHT: 1-Color Perimeter View; Voltage: 12-30 V dc; Housing: Polycarbonate; IP69K; Input: PNP; Colors: Red; 5-pin M12 Integral QD
About the manufacturer: Banner is one of the manufacturers that offers Pick-to-Light Sensors that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the K50BLXRXPQ Banner price in the box on the right side or send a quick quote.
Product Details
- Weight136.0776 g
- Country Of OriginMX
- Product Size (mm) 50
- Quick Disconnect Type M12 (Euro)
- Min Op. Temperature (°C) -40
- Feature: Quick Disconnect Yes
- Mounting Thread M30 x 1.5
- Connection Integral QD
- Physical Dimensions (LxWxH or DxH mm) 50.0 x 60.0
- Feature: Hazardous Area No
- Pro-Editor Compatible (Discrete) No
- Number of Colors / Segments 1
- Max Current Color (mA) 140
- Primary Housing Color Black
- IO Link No
- Primary Housing Material Polycarbonate
- Input Type PNP
- Max Input Response Time (ms) 7
- Primary Window Material Polycarbonate Clear
- Modbus RTU No
- Color Input Control Individual (One wire/color, same number of colors as input wires)
- Supply Voltage 12-30 V dc
- Feature: Chemical Resistant No
- Power DC
- Number of Input Pins/Conductors 4
- NEMA Type and UL Type Rating NEMA 4X, 13
- Feature: Washdown Rated Yes
- Indication Yes
- Color Technology Standard LED
- Max Op. Temperature (°C) 50
- Indication Intensity High Brightness & Daylight Visible
- Wireless No
- Housing Style Base Mount - Flat Window
- Animation Option 1 Solid On
- Environmental Rating IP67; IP69
- Multi-Color Device Single Color On
- Power Source DC
- Color Option 1 Red
- Max Op. Relative Humidity Non-Condensing (%) 90% @ 50°C
- Feature: Audible No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
K50BLXRXPQ Description

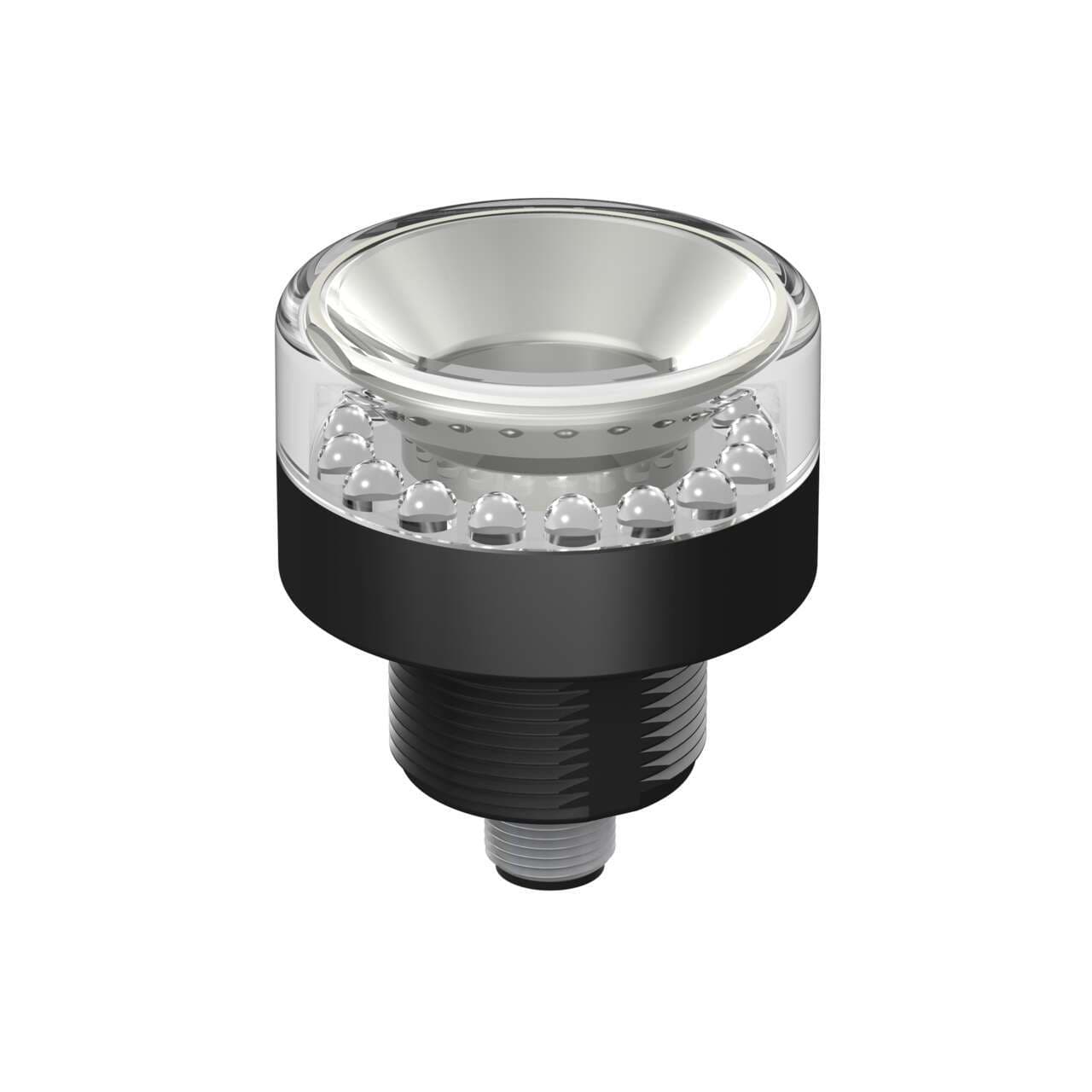

Banner Engineering K50BLXRXPQ is a high-intensity industrial LED light beacon from the EZ-LIGHT Beacons series, designed for perimeter view indication. This model features a single-tier, 1-color red LED illumination housed in a black casing. The beacon's window is made from clear polycarbonate (PC), with a polycarbonate (PC) base, ensuring durability. It comes pre-wired with a 90cm / 3ft cable that terminates with bare end flying leads for easy installation. The K50BLXRXPQ operates on a supply voltage range of 12Vdc to 30Vdc, with 24Vdc as the nominal voltage. It offers versatile mounting options, including surface, base pole M30, and 1/2" NPSM thread, to accommodate different installation requirements. With a cap diameter of 50mm / 2", this beacon is designed to operate in ambient air temperatures ranging from -40°C to +50°C. It boasts a high degree of protection with ratings of IP67 and IP69K, making it suitable for challenging environments. Additionally, it features 1 x digital input (12-30Vdc; PNP) for color control, enhancing its functionality in industrial settings.
