IVURDM-QD-806 Banner Cordsets
Part#:IVURDM-QD-806
Manufacturer:Banner
Alt. Part#:28674
Product Lifecycle:Active
Get a quick Quote!

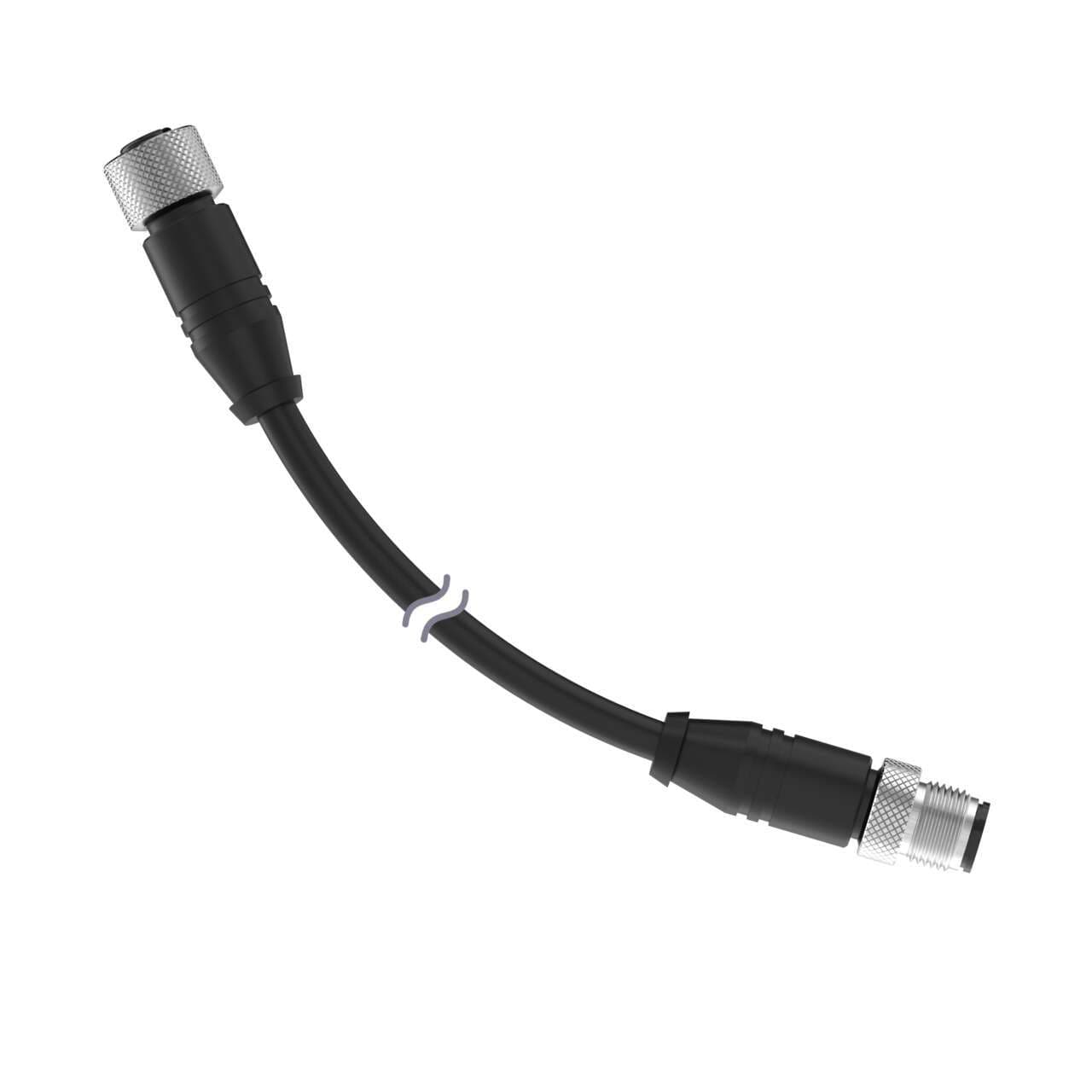

Cordset: Double Ended M12; 8-pin Straight Female; 8-pin Straight Male Shielded; 1.83 m 8x24 Dark Green TPE Jacket; Nickel-Plated Brass Coupling Nuts
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the IVURDM-QD-806 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight136.0776 g
- Country Of OriginTW
- Cable Jacket Color Black
- Primary AWG 24
- Connector Body Material/Color PUR Black
- Shield/No Shield Shield
- Voltage Rating (V) 30 V ac/dc
- Secondary AWG 24
- Number of Contacts 8
- IP Rating IP67
- Primary Gender Female
- Trunk Length (m) No Trunk
- Primary Coupling Method M12 Single Key
- Secondary Gender Male
- Shield Type Coupling
- Cable Jacket Material PVC
- Maximum Temp. (°C) 105
- Number of Connectors 2
- Minimum Temp. (°C) -40
- Secondary Orientation Straight
- Oil/Grease Resistant No
- Cordset Length (m) 1.83
- Coupling Material/Color Nickel Plated Brass
- Secondary Coupling Method M12 Single Key
- Outside Cable Diameter (mm) 6.1
- Current Rating (A) 2.0
- Primary Number of Conductors 8
- Primary Connector Type EURO
- Secondary Number of Conductors 8
- Secondary Connector Type EURO
- Feature: Hazardous Area No
- Primary Orientation Straight
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
IVURDM-QD-806 Description
Banner Engineering IVURDM-QD-806 is a pre-assembled connecting/interconnect cable or cordset designed with double-ended configuration. It features black sheathing made of PVC material and measures 6ft / 1.83m in length. This cable is equipped with an 8-pin Euro-style M12 male connector and an 8-pin Euro-style M12 female connector. It is rated for a voltage of 30Vac and 30Vdc, with a cable diameter of 6.1mm. The IVURDM-QD-806 operates within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP67.
