IVUC-E-475 Banner Cordsets
Part#:IVUC-E-475
Manufacturer:Banner
Alt. Part#:13896
Product Lifecycle:Active
Get a quick Quote!

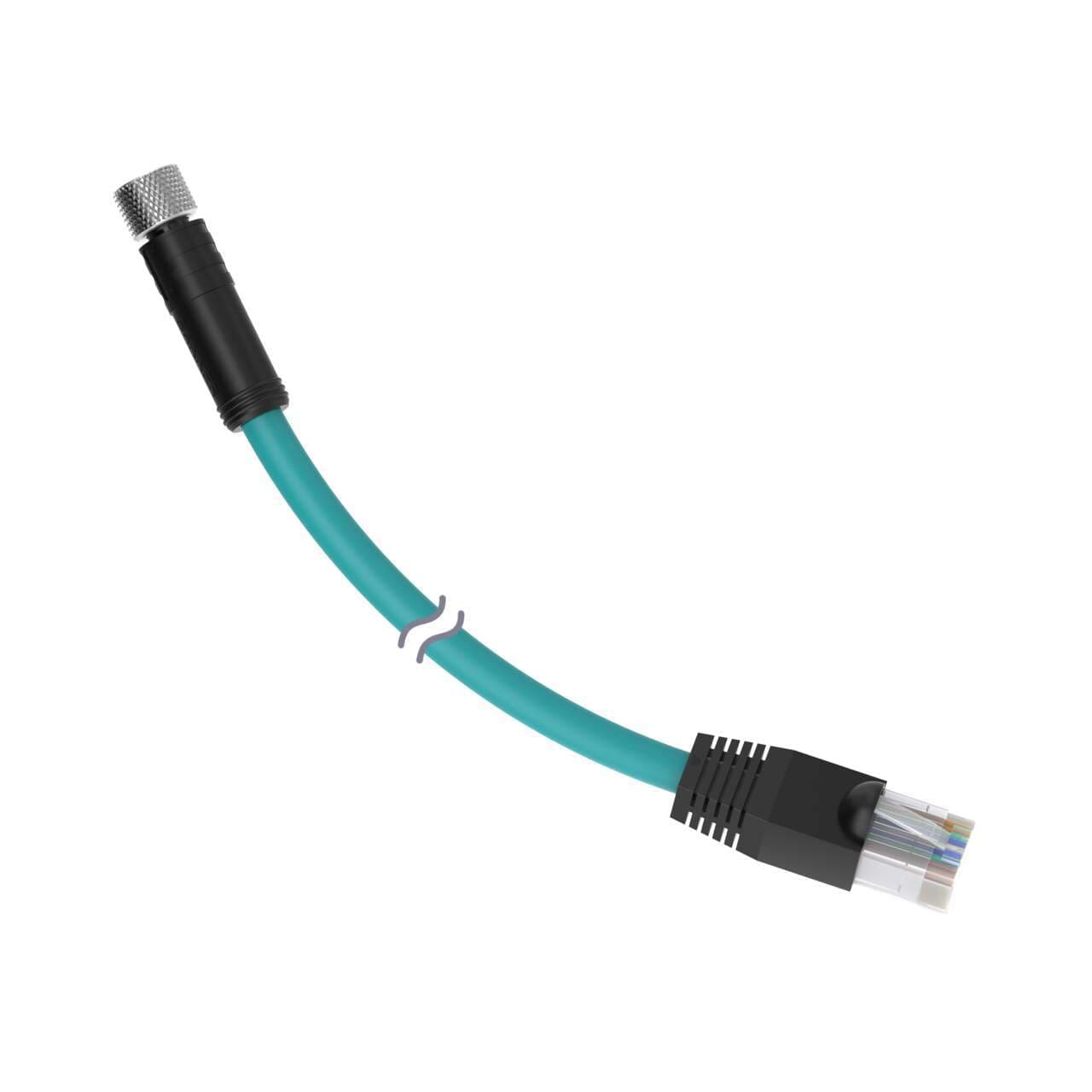

Cordset: Double Ended M8 Threaded to RJ45; 4-pin Straight Female; 4-pin Straight Male Connectors with Shield; 23 m (75.44 ft) Teal PVC Jacket; Nickel-Plated Brass Coupling Nuts
About the manufacturer: Banner is one of the manufacturers that offers Cordsets that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the IVUC-E-475 Banner price in the box on the right side or send a quick quote.
Product Details
- Weight889.04032 g
- Country Of OriginTW
- Number of Contacts 4
- Connector Body Material/Color PUR Black
- Primary Connector Type PICO
- Secondary Orientation Straight
- Minimum Temp. (°C) -40
- Primary Number of Conductors 4
- Number of Connectors 2
- Shield Type Open
- Primary AWG 24
- Oil/Grease Resistant No
- Cordset Length (m) 22.9
- Maximum Temp. (°C) 105
- Secondary Coupling Method Slide Snap
- Primary Coupling Method M8 Thread
- Secondary Number of Conductors 4
- Cable Jacket Material PVC
- Shield/No Shield Shield
- Current Rating (A) 2.0
- Primary Orientation Straight
- Cable Jacket Color Green
- Coupling Material/Color Nickel Plated Brass
- Secondary Connector Type RJ45
- Trunk Length (m) No Trunk
- IP Rating IP68
- Secondary AWG 24
- Outside Cable Diameter (mm) 6
- Primary Gender Female
- Feature: Hazardous Area No
- Voltage Rating (V) 60 V ac/75 V dc
- Secondary Gender Male
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
IVUC-E-475 Description
Banner Engineering IVUC-E-475 is a pre-assembled Ethernet/interconnect cable or cordset designed with double-ended connectivity. It features green sheathing made from PVC material and measures 22.9 meters in length. This cable is equipped with a 4-pin M8 female connector on one end and an RJ45 male connector on the other. It has a cable diameter of 6mm and is rated for a voltage of 60Vac in AC applications and 75Vdc in DC applications. The IVUC-E-475 is designed to operate within an ambient air temperature range of -40 to +105°C and offers a degree of protection rated at IP68.
