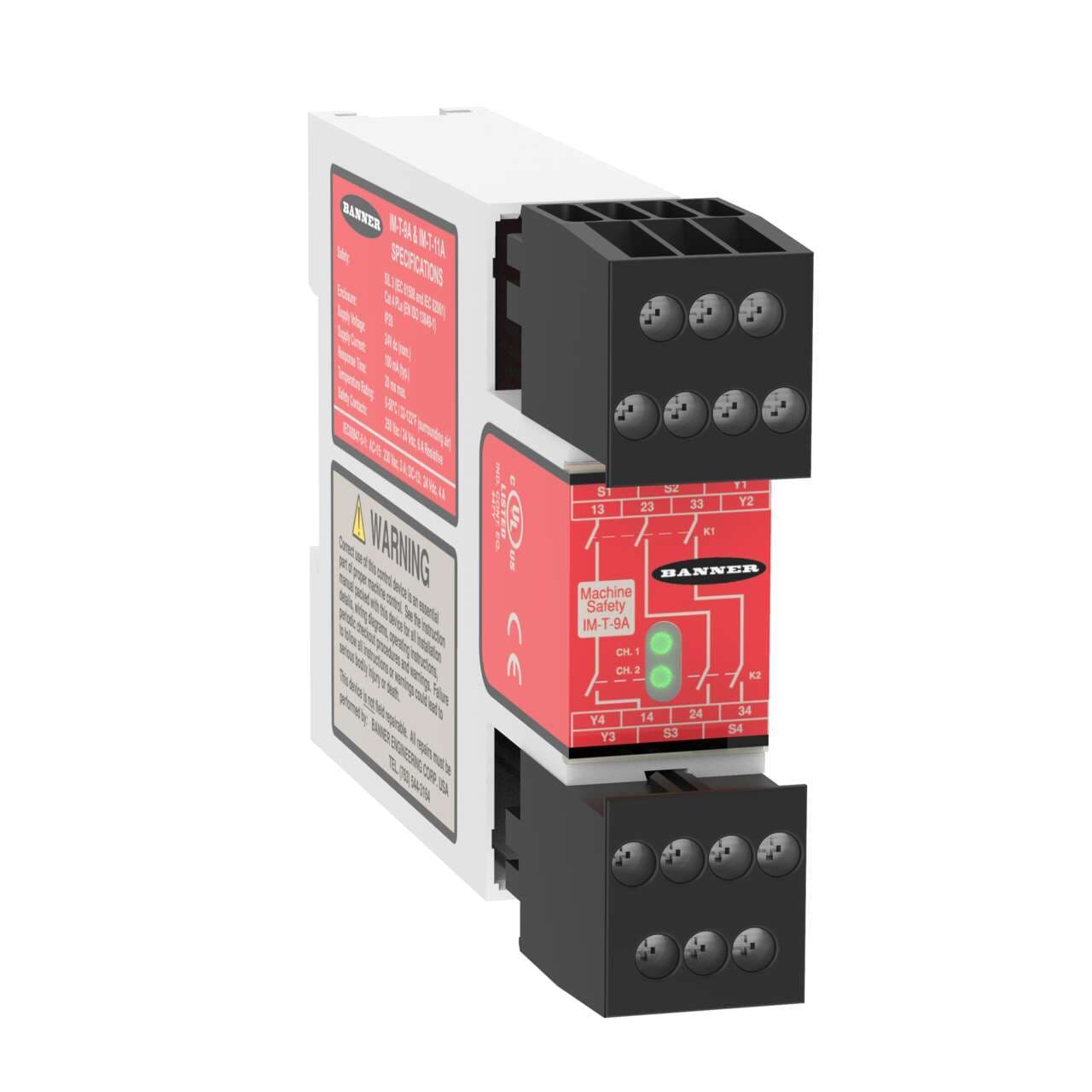

IM-T-9A Banner Safety Relays
Part#:IM-T-9A
Manufacturer:Banner
Alt. Part#:61425
Product Lifecycle:Active
Get a quick Quote!
Relay Module for Safety Light Curtain/Control with EDM; Supply Voltage: 24 V dc; Safety Input: 1 Dual/Single Channel; Safety Output: 3 NO, 6 A; Aux Output: None; Terminal Block: Removable; Width: 22.5 mm
About the manufacturer: Banner is one of the manufacturers that offers Safety Relays that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the IM-T-9A Banner price in the box on the right side or send a quick quote.
Product Details
- Weight244.93968 g
- Country Of OriginUS
- Power DC
- Input Configuration 2 OSSD
- Vibration 10-55 Hz at 0.35 mm
- SIL Rating 3
- Light Curtains/Scanner with EDM Input Yes
- Gate Switch (OSSD) Input No
- Common Ethernet Protocol No
- Safety Module Type Interface Module
- Number of Safe Inputs 1
- Relative Humidity 90% @ 50° C
- Safety Input - Dual Channel (Solid-State) 50 mA @ 24 V dc +/- 15%
- LCD Display No
- Non Safe Output Rating N/A
- Removable Terminals Yes
- Gate Switch (NC/NO) Input No
- In-Series Diagnostics No
- Device Type Safety Relay
- Output Configuration 3 NO
- Splittable Safe Output No
- Electrical Life (Cycles @ VA) 1,000,000 @ 450 VA
- Gate Switch (NC/NC) Input No
- Dimension (H x W x D in mm) 84 x 22.5 x 118
- PCCC No
- Expandable No
- Safe Output Rating Relay - 6 A
- IP Rating IP20
- Safety Mat No
- Modbus/TCP No
- Max Operating Temperature ( °C) 50
- Independently Controlled Safe Outputs 1
- Terminal Type Screw
- SISTEMA B10d = 1 x 107
- Light Curtains/Scanner without EDM Input No
- Input Operation Simultaneous or Concurrent
- Mechanical Life (Operations in Millions) 20
- PL Rating e
- Motor Speed No
- PROFINET No
- Response Time (ms) 20 (max.)
- Power Consumption 0.1 A
- Muting No
- Supply Voltage 24 V dc +/- 15%
- E-Stops/Rope Pulls No
- EPLAN Cabinet Installable Yes
- Safety Category Rating 4
- EtherNet/IP No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
IM-T-9A Description
Banner Engineering IM-T-9A is a mounting accessory designed with an EDM design and constructed from glass fiber material. It functions as a relay module and operates at a supply voltage of 24Vdc. The dimensions of this part are 84 mm in height, 23 mm in width, and 118 mm in depth. It is designed to operate in ambient air temperatures up to +50 °C and has a degree of protection rated at IP20. The IM-T-9A features 3NO (Normally Open) contacts.
