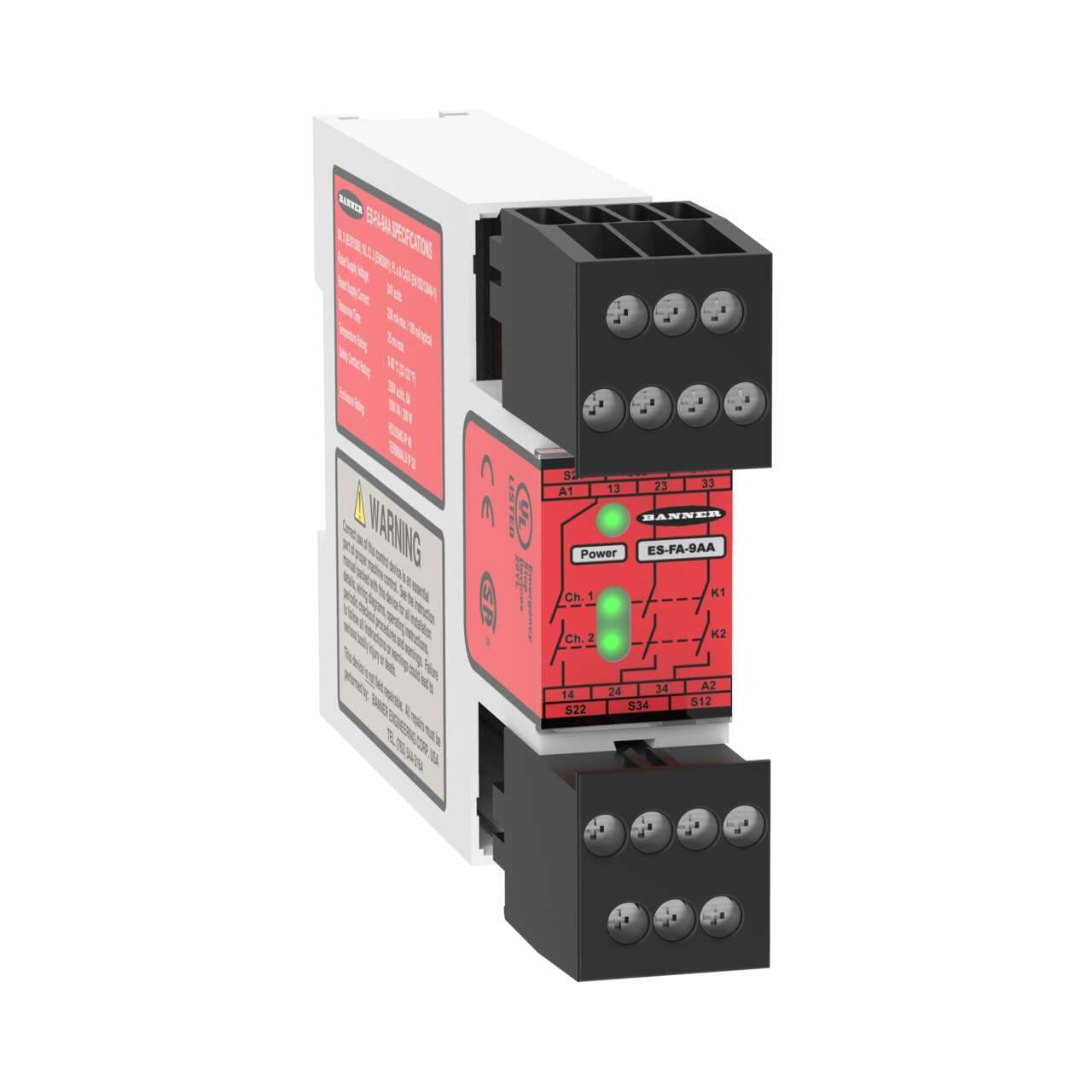

ES-FA-9AA Banner Safety Relays
Part#:ES-FA-9AA
Manufacturer:Banner
Alt. Part#:60131
Product Lifecycle:Active
Get a quick Quote!
Safety Relay Module for E-Stop/Rope Pull/Interlock; Supply Voltage: 24 V ac/dc; Safety Input: 1 Dual/Single Channel; Safety Output: 3 NO, 6 A; Aux Output: None; Terminal Block: Removable; Width: 22.5 mm; Self-Checking Circuitry, Auto/Manual Reset
About the manufacturer: Banner is one of the manufacturers that offers Safety Relays that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the ES-FA-9AA Banner price in the box on the right side or send a quick quote.
Product Details
- Weight274.42316 g
- Country Of OriginUS
- Supply Voltage 24 V ac/dc +/- 10%
- Safety Mat No
- PROFINET No
- LCD Display No
- Safety Input - Dual Channel (Dry Contact) 10-20 mA @ 12 V dc
- Power Consumption 2 W / 2 VA
- SISTEMA PFHd = 5.1 x 10-10
- Light Curtains/Scanner without EDM Input No
- Max Operating Temperature ( °C) 50
- Non Safe Output Rating N/A
- Vibration 10-55 Hz at 0.35 mm
- Safety Input - Single Channel 40-100 mA @ 24 V ac/dc +/- 10%
- Expandable No
- Number of Safe Inputs 1
- Mechanical Life (Operations in Millions) 20
- IP Rating IP20
- Gate Switch (NC/NO) Input No
- Input Operation Simultaneous or Concurrent
- Output Configuration 3 NO
- Response Time (ms) 25 (typical)
- Gate Switch (NC/NC) Input Yes
- Power AC/DC Universal
- Recovery Time (ms) 250
- PL Rating e
- Gate Switch (OSSD) Input No
- PCCC No
- Device Type Safety Relay
- Safety Input - Reset 20 mA @ 12 V dc (dry contact only)
- Terminal Type Screw
- Input Configuration 2 NC or 1 NC
- Safety Module Type Emergency Stop Module
- Safe Output Rating Relay - 6 A
- Dimension (H x W x D in mm) 84 x 22.5 x 118
- Splittable Safe Output No
- SIL Rating 3
- E-Stops/Rope Pulls Yes
- EtherNet/IP No
- Light Curtains/Scanner with EDM Input No
- Relative Humidity 90% @ 50° C
- Independently Controlled Safe Outputs 1
- Removable Terminals Yes
- Input Resistance 100 Ω max. per channel
- Safety Category Rating 4
- Motor Speed No
- EPLAN Cabinet Installable Yes
- Recovery Time 250
- In-Series Diagnostics No
- Modbus/TCP No
- Muting No
- Electrical Life (Cycles @ VA) 1,000,000 @ 450 VA
- Common Ethernet Protocol No
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
ES-FA-9AA Description
Banner Engineering ES-FA-9AA is a safety relay designed for DIN rail mounting, featuring a net width of 23 mm and a degree of protection rated at IP20. It operates within an ambient air temperature of up to +50°C. This part is equipped with 3 digital safety outputs (3NO / 3xSPST-NO, each comprising 2 N.O. contacts in series; 6A) and 2 digital inputs (1 x 12Vdc and 1 x 20mA 12Vdc; dry contact), supporting both auto and manual RESET functions. The ES-FA-9AA offers screw connections for secure installation and is compatible with a supply voltage of 24Vdc and 24Vac. Its net dimensions are 118 mm in depth and 84 mm in height, making it a compact solution for safety relay module applications.
Related documents ES-FA-9AA Specs
1-year warranty
