DEK100-A1-A Banner Sensor Accessories
Part#:DEK100-A1-A
Manufacturer:Banner
Alt. Part#:811835
Product Lifecycle:Active
Get a quick Quote!

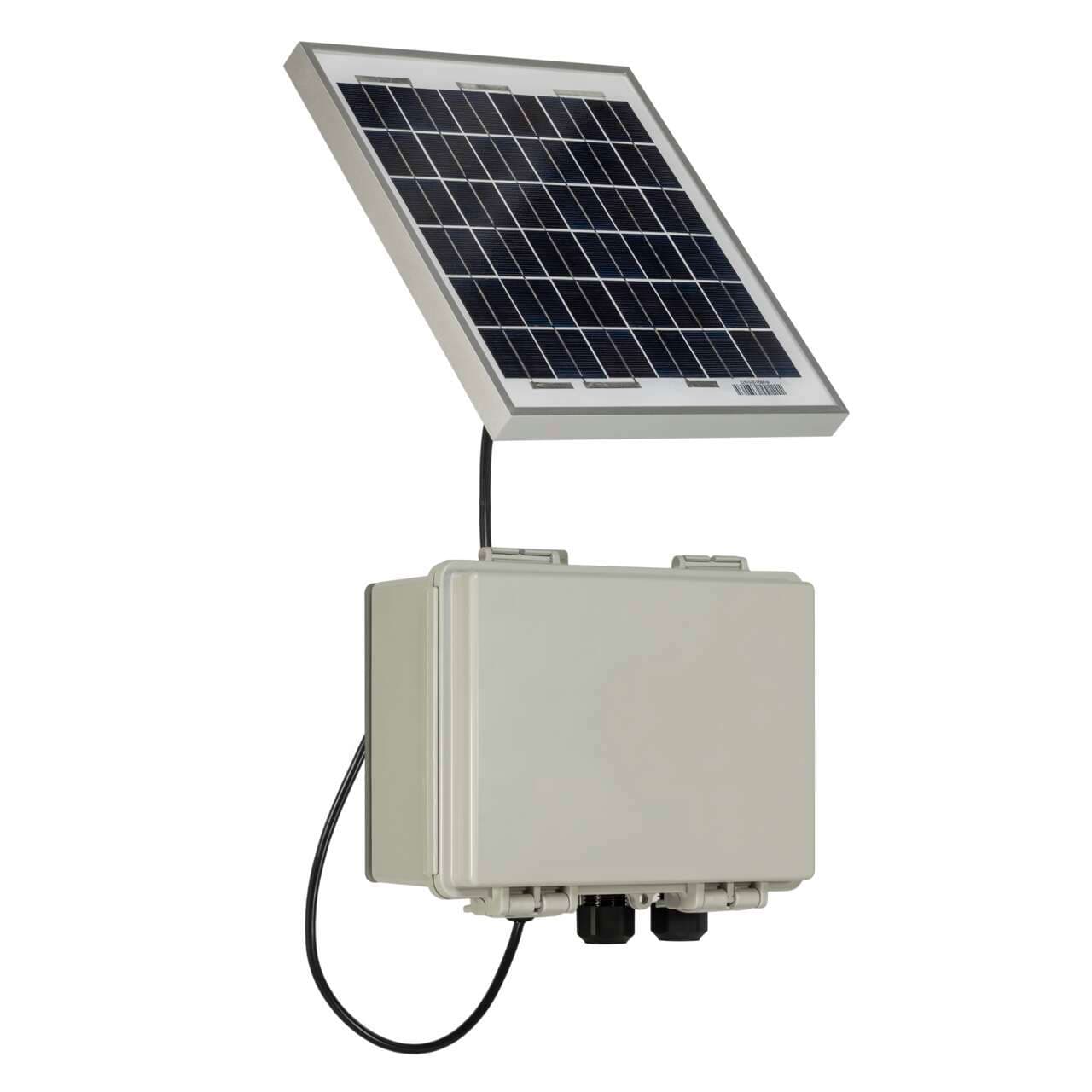

DXM100 A1 Controller; AT&T North America Only; NEMA Rated Enclosure; 4 Holes with Glands & Vent; 5W Solar Panel with Battery
About the manufacturer: Banner is one of the manufacturers that offers Sensor Accessories that you can order at marketplace.quotebeam.com. Banner Engineering Corp. is a globally renowned leader in the industrial automation sector. Our diverse product line, comprising sensors, vision sensors, LED lights, indicators, wireless devices, and safety products, caters to businesses of all sizes worldwide.
Check out the DEK100-A1-A Banner price in the box on the right side or send a quick quote.
Product Details
- Weight3678.63112 g
- Country Of OriginUS
- Point-to-Point Topology No
- Pressure Sensor Input Yes
- Power Supply Solar Panel
- Power Battery & DC Supply
- EtherNet/IP No
- Point-to-Multipoint Topology No
- Application: Temperature Input Yes
- RS-232 No
- Relative Humidity 95%
- Feature: Hazardous Area No
- Wireless No
- Star Topology No
- Application: Relative Humidity Input Yes
- Modbus/TCP No
- Tree Topology No
- Primary Housing Material PBT
- Voltage 12-30 V dc
- Max Op. Temperature (°C) 60
- Application: Tank Level Yes
- Modbus RTU Yes
- Min Op. Temperature (°C) -20
- Ships With Battery Yes
- RS-485 Yes
- Battery Type/Size LiFePO
- Application: Vibration Sensor Input Yes
- Outside Housing Dimensions (cm) 21.15 x 16.15 x 10.00
- Cord Length (m) 3
Product condition
ORIGINAL PACKAGING
SURPLUS ORIGINAL PACKAGING - 100% unused and in original packaging
DEK100-A1-A Description
Banner Engineering DEK100-A1-A is a remote I/O controller designed for surface mounting with an ambient air temperature for operation ranging from -20 to +60 °C. It features 2 analog outputs (0-10Vdc; 32-bit) and 4 digital outputs (12Vdc-30Vdc; NMOS; 1A), alongside 4 digital inputs (12-30Vdc; Sink/Source/Counter) which can also function as 4 analog inputs (4-20mA / 0-10Vdc / 10kΩ thermistor). This part, belonging to the DEK wireless kits sub-range, is equipped with a Modbus controller function and supports RS-485 Modbus RTU communication protocol. It has a degree of protection rated at IP20 NEMA 4X and is designed with a 4 holes (gld. and vent) PBT enclosure, a 5W solar panel, and battery backup for AT&T. The supply voltage required for operation is 12-30Vdc (12Vdc-24Vdc nom.).
Related documents DEK100-A1-A Specs
